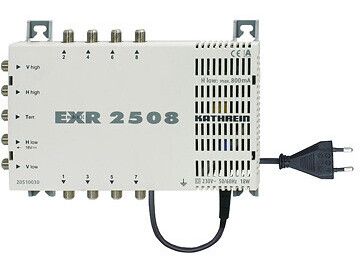

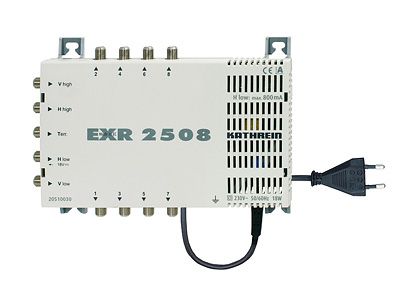

Kathrein EXR 2508, Grey, 47 - 862 MHz, 20 mA, 650 g, 50 mm, 240 mm
Item no.: [1140672] | Manufacturer: Kathrein | Model no.: 20510030 | EAN: 4021121472893
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
143,11
Incl. VAT 178,89
Total incl. delivery
193,89
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
- Cascadable multi-switch for distribution of four satellite levels and terrestrial signals across multiple receivers
- Only one downlink per receiver needed (two for twin receivers)
- Independent selection of horizontal/vertical, low/high, for each receiver
- Switchable via the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integral amplifi er for low attenuation in satellite signal band
- Integral pre-emphasis to equalise cable attenuation
- Terrestrial signals also receivable even when sat receiver switched off
- Terrestrial band: 5-862 MHz, passive
- High degree of insulation between outputs
- Can be remote fed via the horizontal low inputs. All other inputs are voltage-free (enabling operation with UAS 485/585)
- For indoor installation
- Only one downlink per receiver needed (two for twin receivers)
- Independent selection of horizontal/vertical, low/high, for each receiver
- Switchable via the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integral amplifi er for low attenuation in satellite signal band
- Integral pre-emphasis to equalise cable attenuation
- Terrestrial signals also receivable even when sat receiver switched off
- Terrestrial band: 5-862 MHz, passive
- High degree of insulation between outputs
- Can be remote fed via the horizontal low inputs. All other inputs are voltage-free (enabling operation with UAS 485/585)
- For indoor installation
