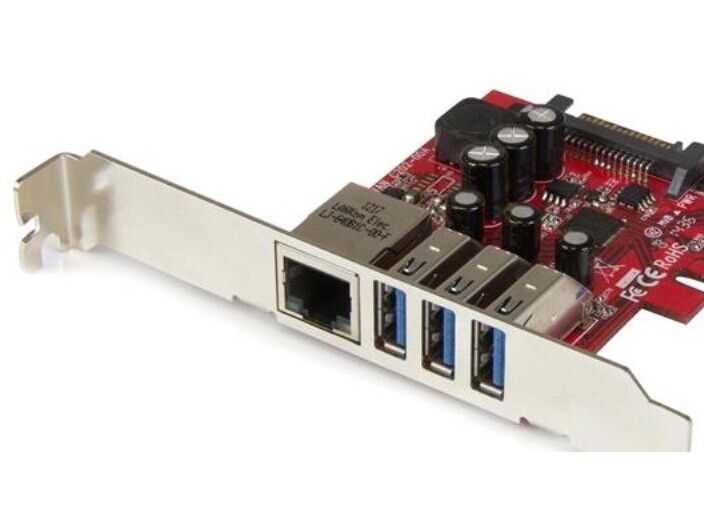

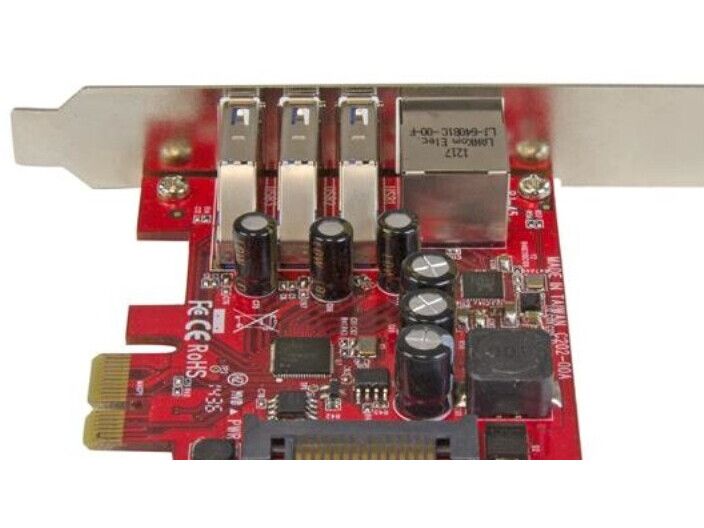

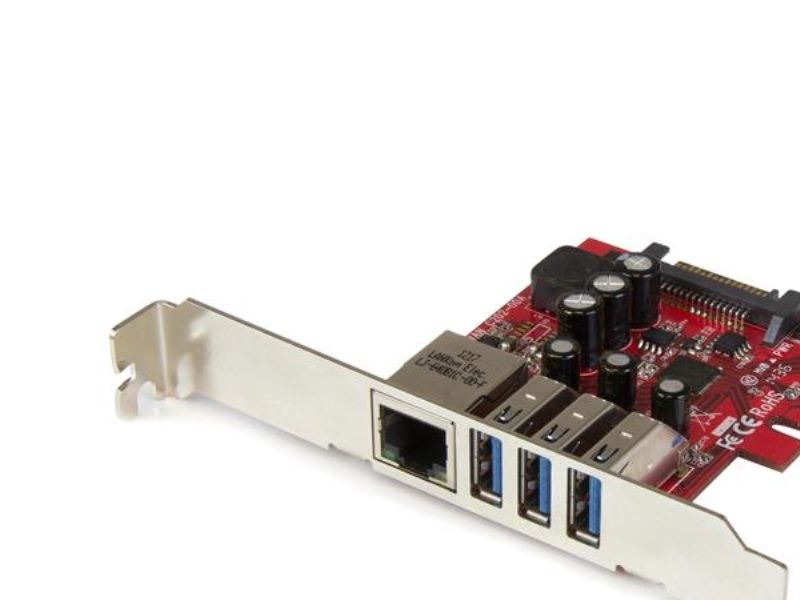

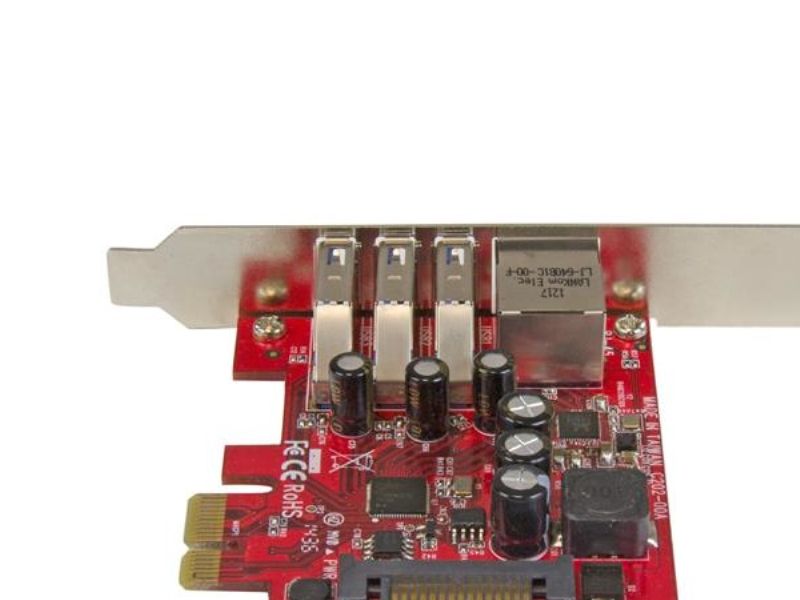

Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card. This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.

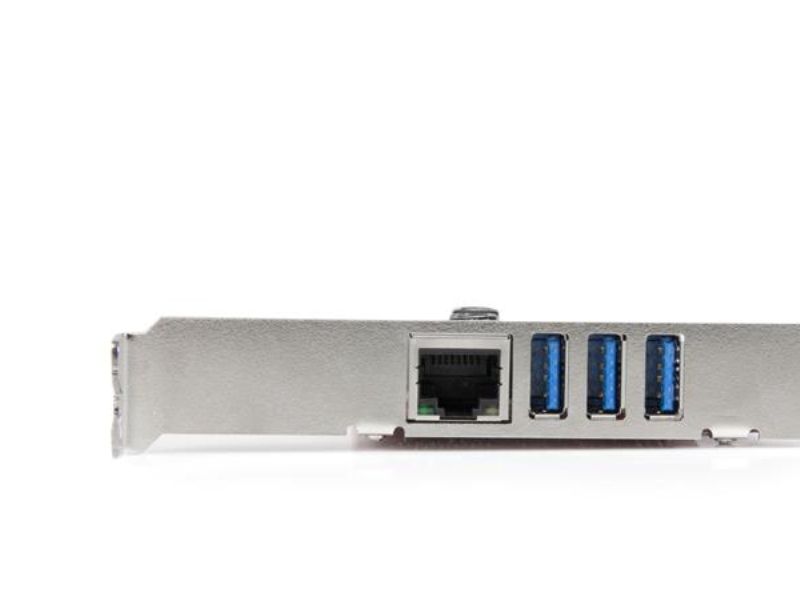

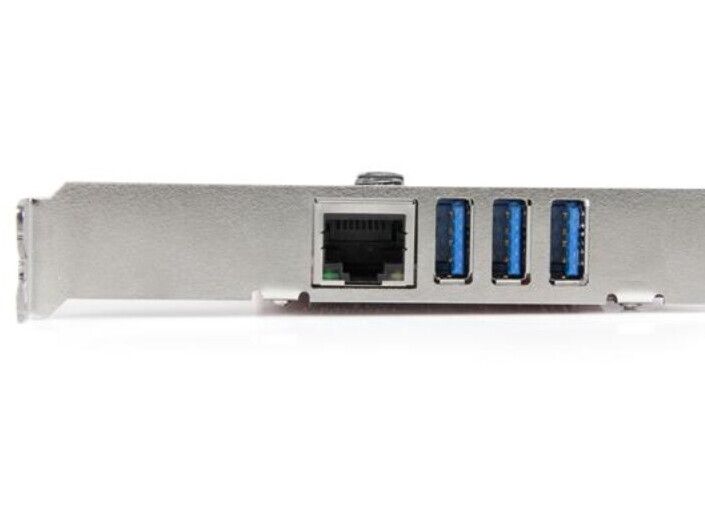

By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.
This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.
The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it's backward compatible with USB 2.0 and 1.x, so you won't have to replace all of your existing USB devices.
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi is unavailable or unreliable.
Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.
This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0.
Produktbeskrivelse
Startech 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard & Low-Profile PCs - UASP Supported - Optional SATA Power (PEXUSB3S3GE) - netværk / USB-adapter - PCIe 2.0 - USB 3.0 x 3 + 1000Base-T x 1
Enhedstype
Netværk / USB-adapter
Model
Indstikskort - lavprofil
Grænseflade (bus) type
PCI Express 2.0 x1
Porte
USB 3.0 x 3 + 1000Base-T x 1
Dimensioner (B x D x H)
1.8 cm x 7.7 cm x 12 cm
Vægt
150 g
Dataforbindelsesprotokol
USB, 1GbE, USB 2.0, USB 3.0
Dataoverførselshastighed
5 Gbps
Processor
Renesas uPD720201
Overensstemmelsesstandarder
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az
Systemkrav
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 eller senere, Microsoft Windows Server 2012, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bits)
Producentgaranti
2 års garanti
Generelt
Enhedstype
Netværk / USB-adapter
Model
Indstikskort - lavprofil
Grænseflade (bus) type
PCI Express 2.0 x1
Netværk
Porte
USB 3.0 x 3 + 1000Base-T x 1
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
USB, Gigabit Ethernet, USB 2.0, SuperSpeed USB 3.0
Dataoverførselshastighed
5 Gbps
Egenskaber

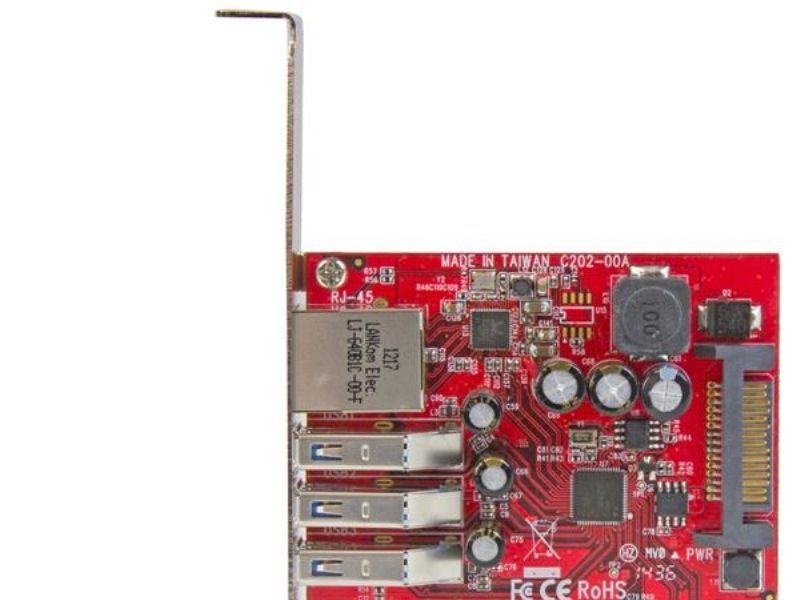

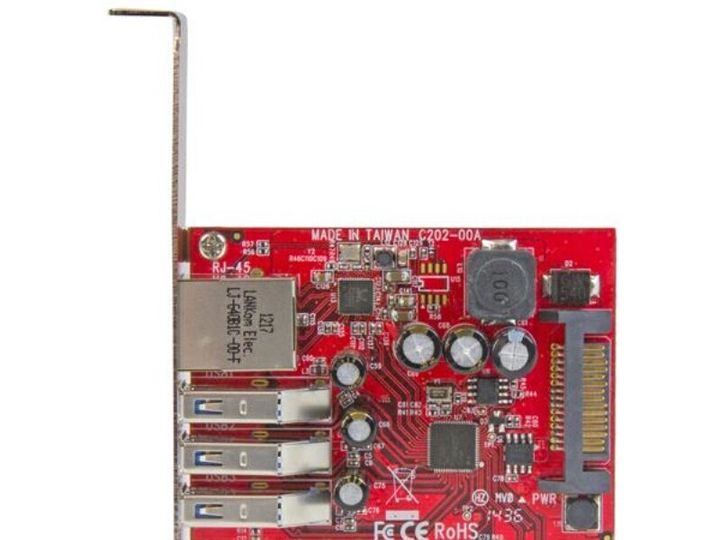

Indbygget SATA strømstikforbindelse, UASP
Overensstemmelsesstandarder
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az
Processor / Hukommelse
Processor
Renesas uPD720201
Ekspansion / Konnektivitet
Interface
3 x USB 3.0 - 9 pin USB Type A (ekstern) 1 x 1000Base-T - RJ-45 (ekstern)
Diverse

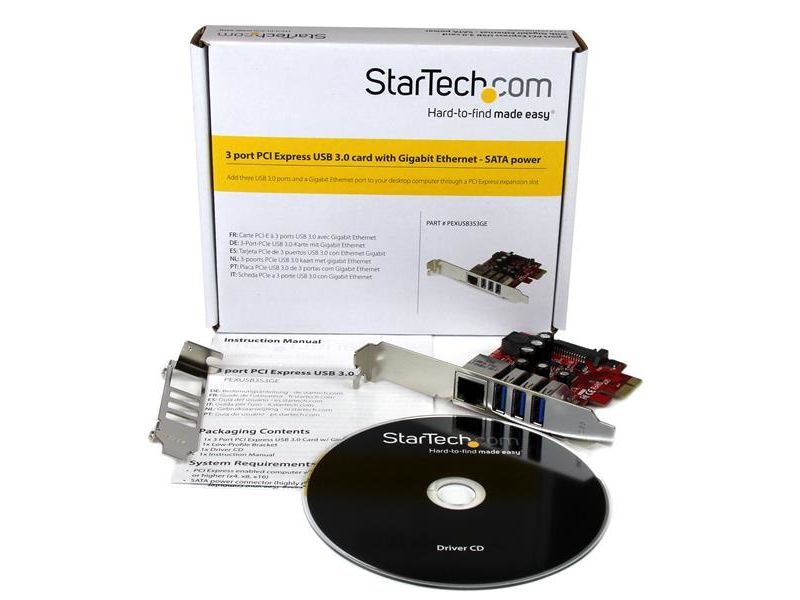

Udstyr inkluderet

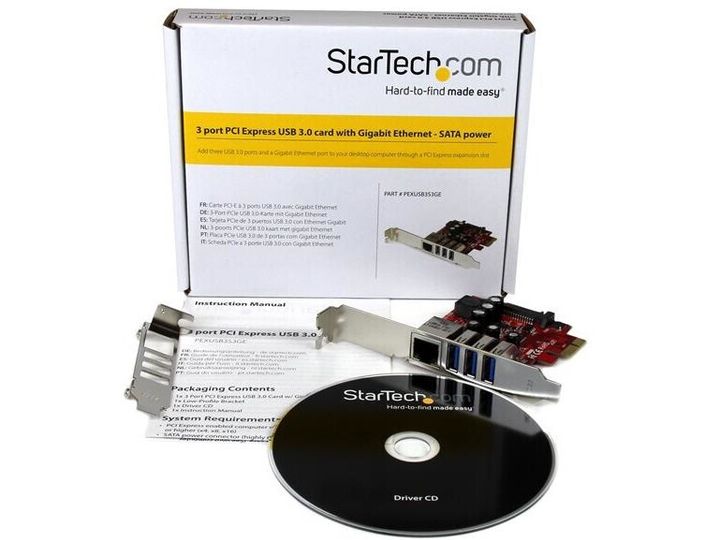

Simpelt beslag
MTBF (forventet tid mellem fejl)
1,920,042 time(r)
Overensstemmelsesstandarder
FCC, RoHS
Programmer / Systemkrav
Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 eller senere, Microsoft Windows Server 2012, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bits)
Mål og vægt
Bredde
1.8 cm
Dybde
7.7 cm
Højde
12 cm
Vægt
150 g
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
20 - 80%
