StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading, HDD, SSD, Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III, 2.5,3.5", 6 TB, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Black
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
73,37
Incl. VAT 91,71
Total incl. delivery
106,71
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

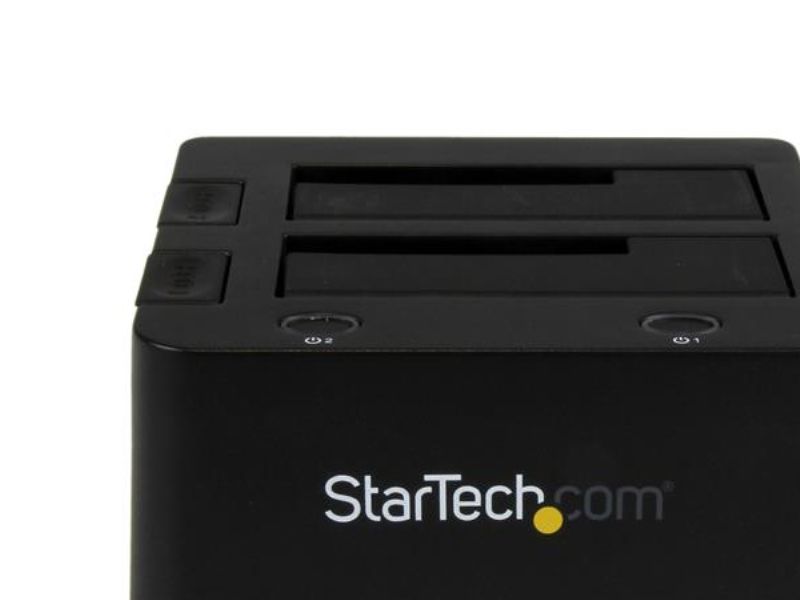

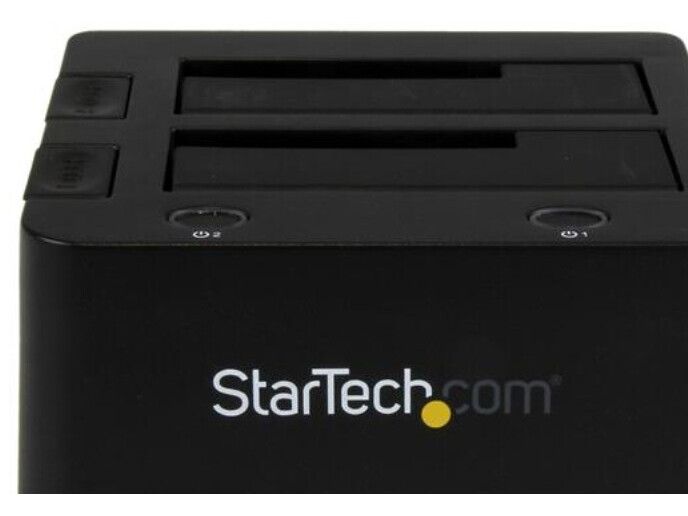

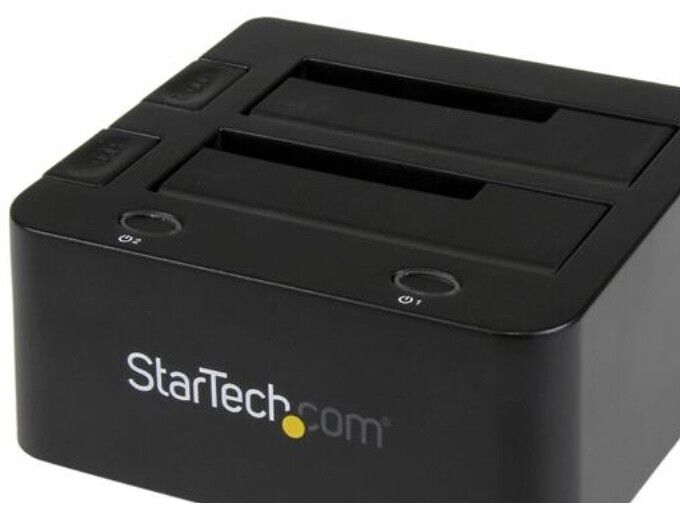

Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.

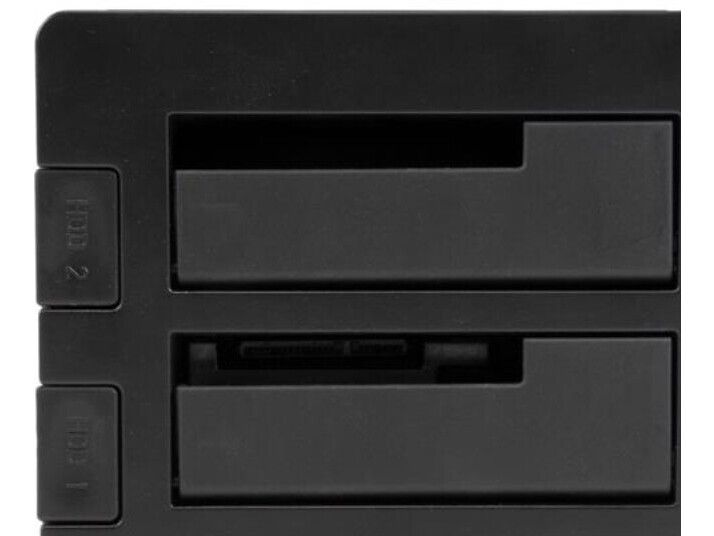

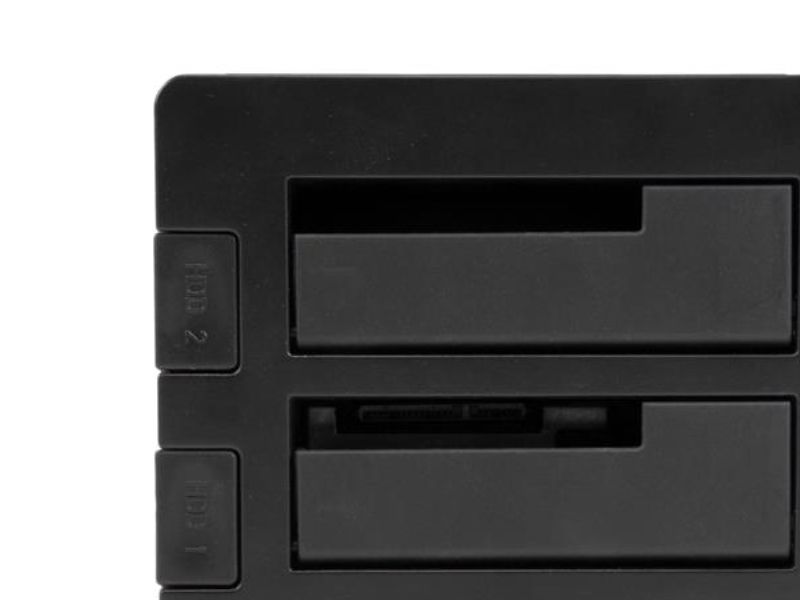

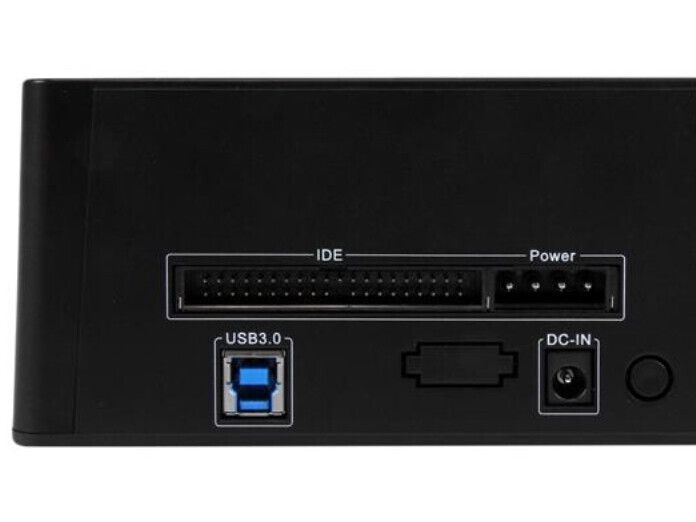

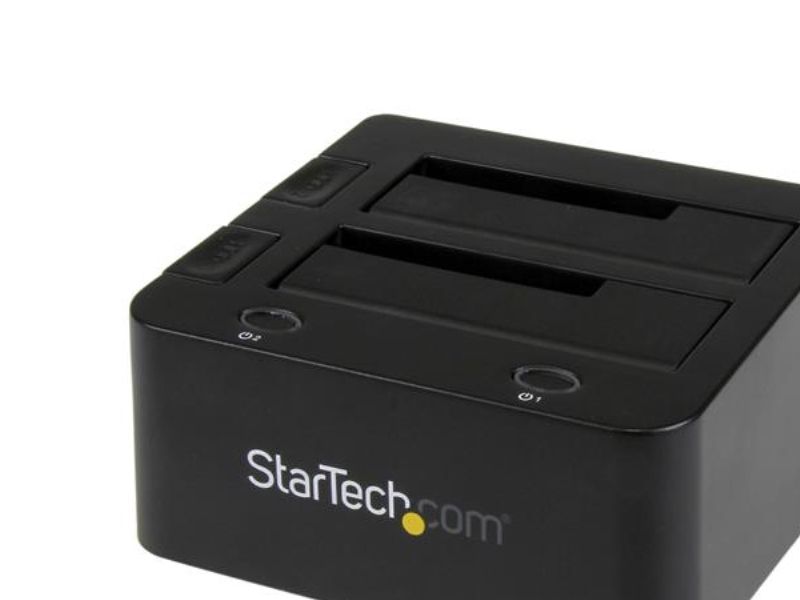

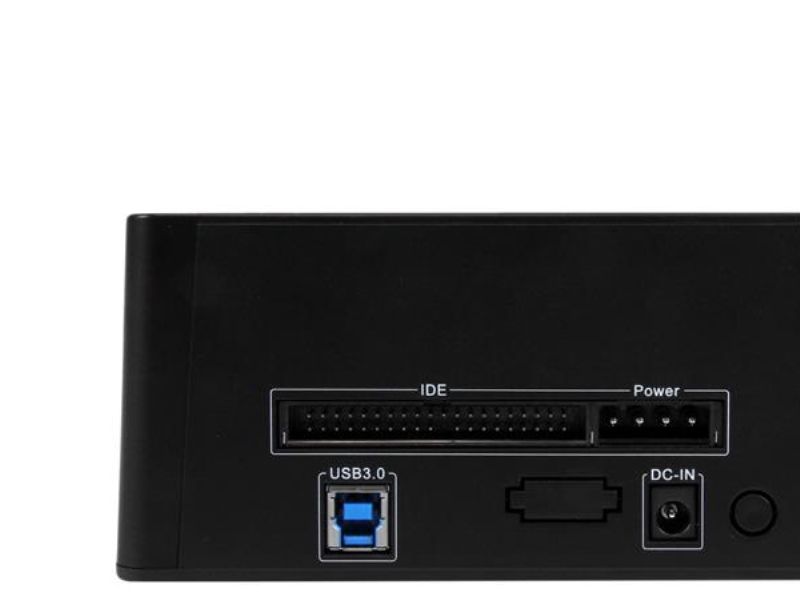

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Produktbeskrivelse
Startech Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III and IDE (40 pin) SSDHDD Docking Station, Hot-Swap Hard Drive Bays - Top-Loading - lagringskontrol - ATA / SATA 6Gb/s - USB 3.0
Enhedstype
Lagringskontrol - ekstern
Bustype
USB 3.0
Farve
Sort
Udvidelses-båse
1 x hot-swap - 2,5" / 3,5" delt 1 x top accessible - 2,5" / 3,5" delt
Harddiskens formfaktorkompatibilitet
2.5", 3.5"
Interface
ATA / SATA 6Gb/s
Dataoverførselshastighed
6 Gbit/s
Understøttede enheder
Harddisk, solid state drev
Maks. antal lagerenheder
2
Produktmateriale
Plastik
Effekt
AC 120/230 V
Systemkrav
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Apple OS X 10.9 Mavericks
Dimensioner (B x D x H)
14 cm x 13 cm x 7 cm
Vægt
610 g
Producentgaranti
2 års garanti
Designet for
P/N: SVA12M5NA
Generelt
Enhedstype
Lagringskontrol - ekstern
Harddiskens formfaktorkompatibilitet
2.5", 3.5"
Host Bus
USB 3.0
Produktmateriale
Plastik
Farve
Sort
Controller for lagring
Interface
ATA / SATA 6Gb/s
Dataoverførselshastighed
6 Gbit/s
Understøttede enheder
Harddisk, solid state drev
Maks. antal lagerenheder
2
Processor
JMicron JMS561U / JMD330
Ekspansion / Konnektivitet
Båse
1 x hot-swap - 2,5" / 3,5" delt 1 x top accessible - 2,5" / 3,5" delt
Interface
1 x SATA 6Gb/s - SATA kombi (intern (bås1)) 1 x ATA-133 - 40-PIN IDC (bagside)
Tilslutninger
1 x USB 3.0 - 9 pin USB Type B
Diverse
Medfølgende ledninger

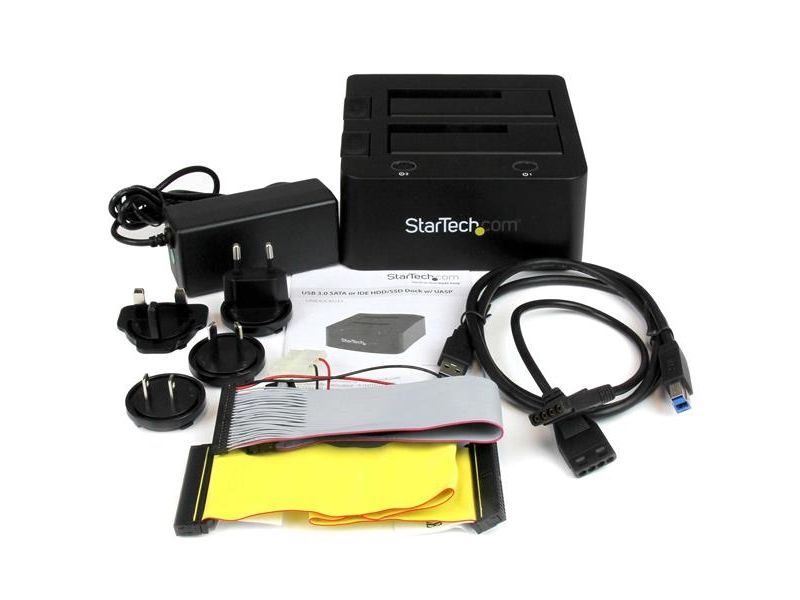

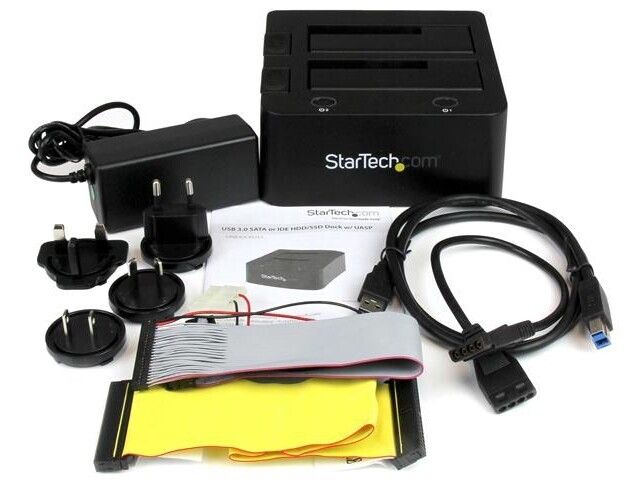

1 x USB 3.0 kabel - ekstern 2 x IDE-kabel - ekstern
Egenskaber
LED indikator, testet med op til 1 TB 5400 RPM 2,5" harddisk, testet med op til 6 TB 7200 RPM harddiske, UASP-transferprotokol
MTBF (forventet tid mellem fejl)
30,000 timer
Overensstemmelsesstandarder
Plug and Play, FCC, RoHS
Effekt
Type
Strømforsyningsadapter
Nødvendig spænding
AC 120/230 V
Programmer / Systemkrav
OS nødvendig
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Apple OS X 10.9 Mavericks
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Mål og vægt
Bredde
14 cm
Dybde
13 cm
Højde
7 cm
Vægt
610 g
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
80 °C
Fugtighedsgrad ved brug
8 - 90%
Oplysninger om kompatibilitet
Designet for
P/N: SVA12M5NA
