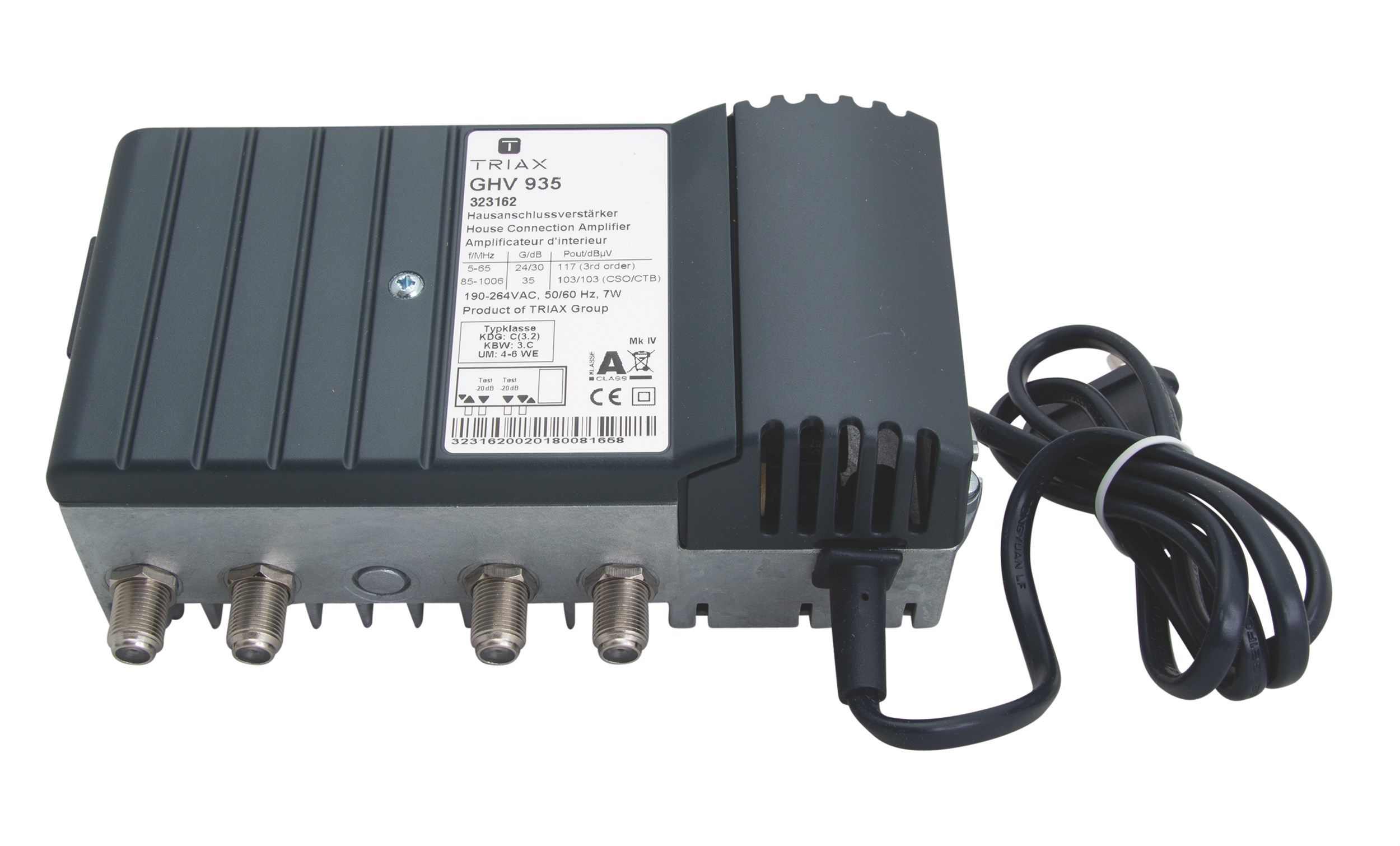

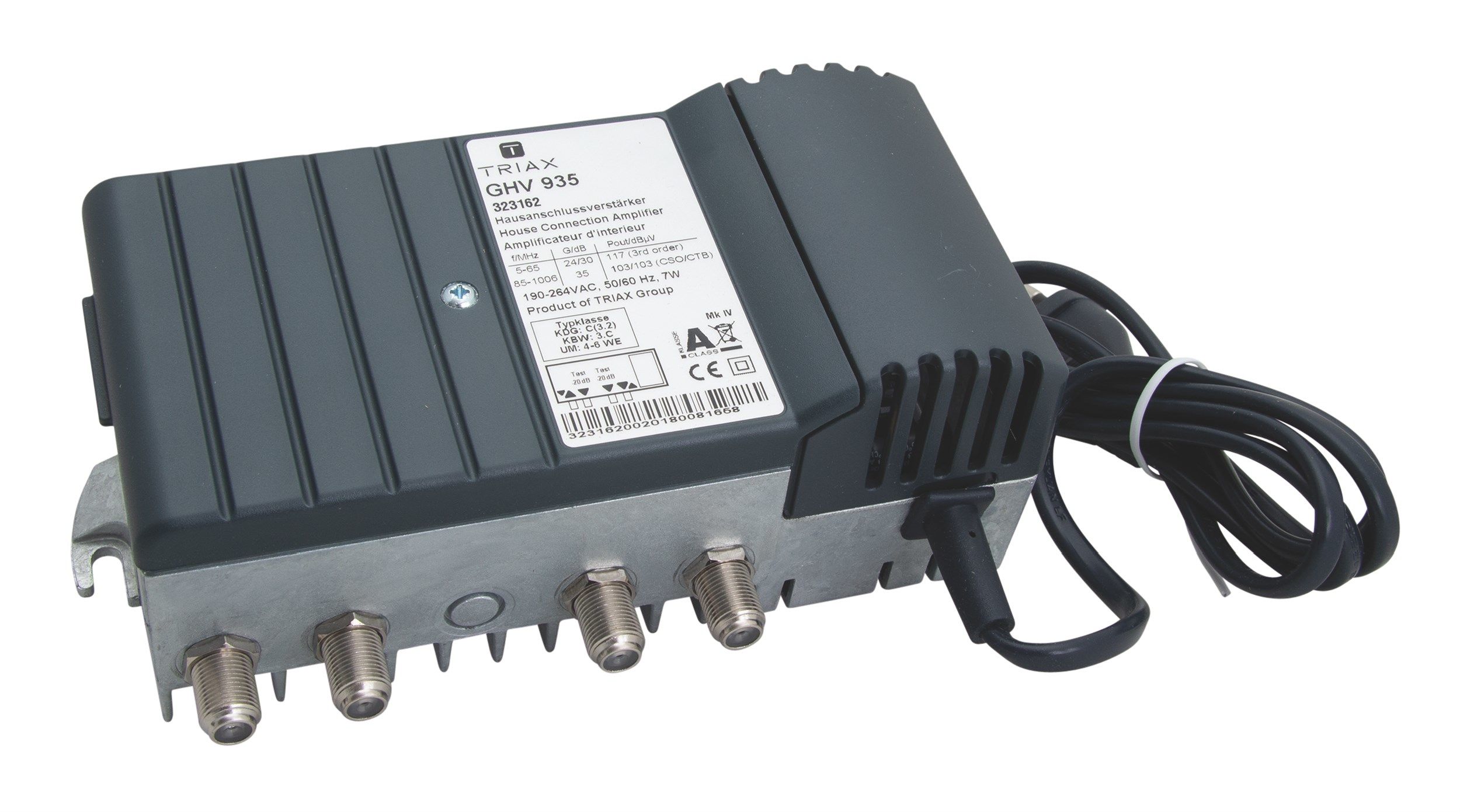

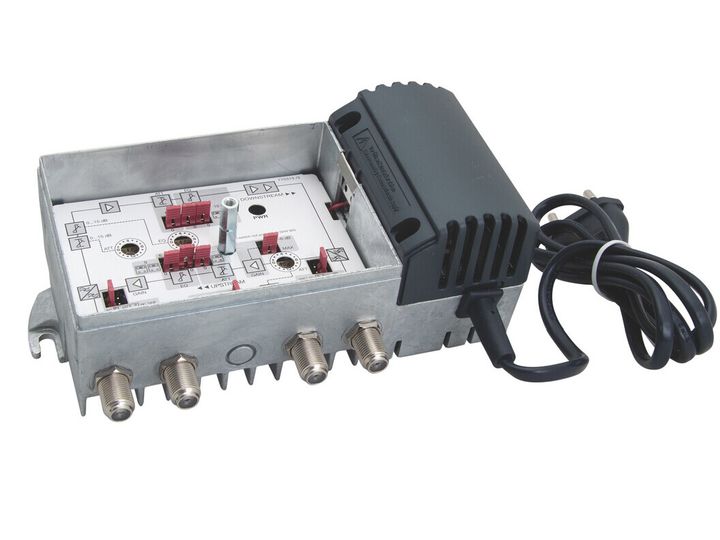

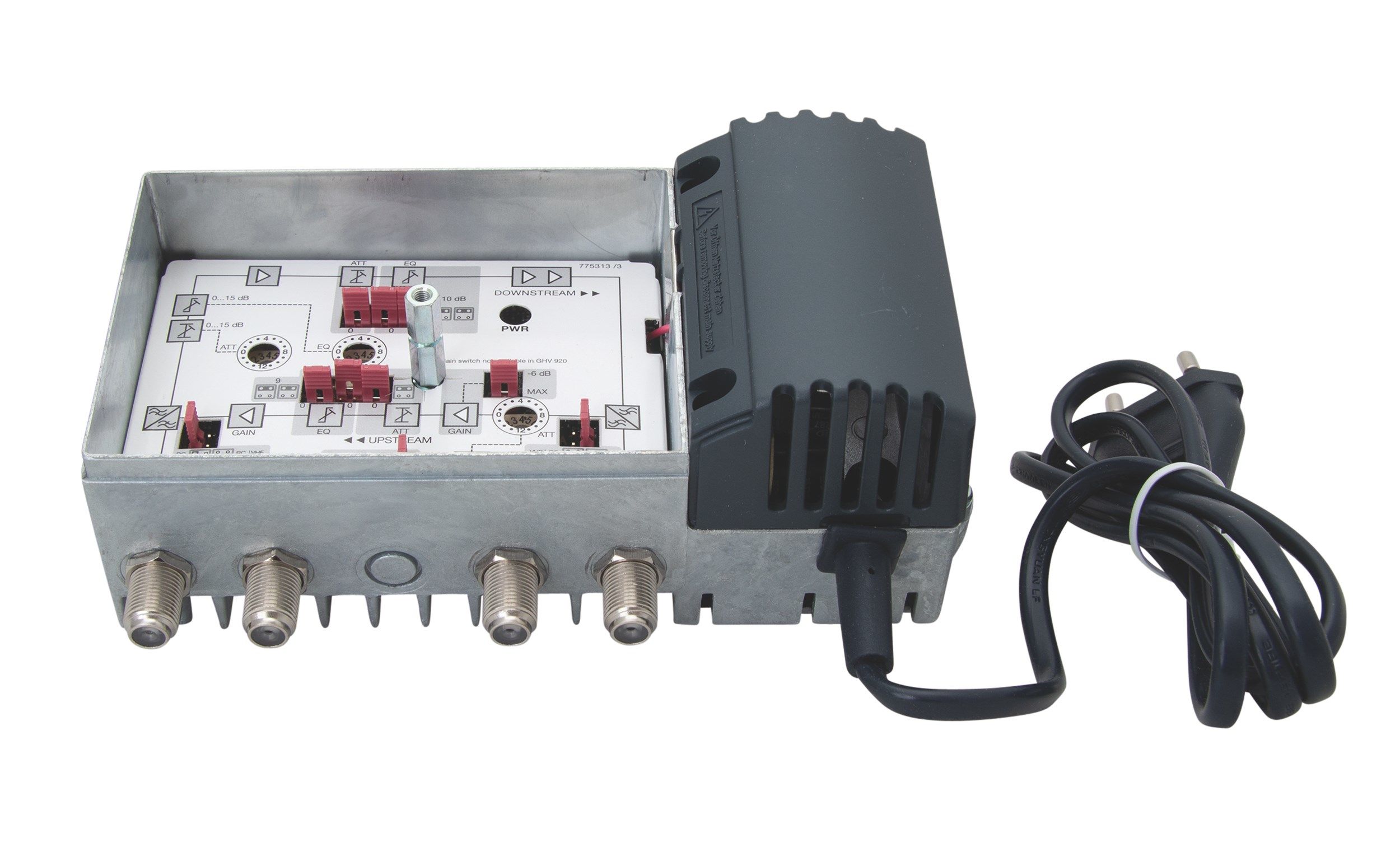

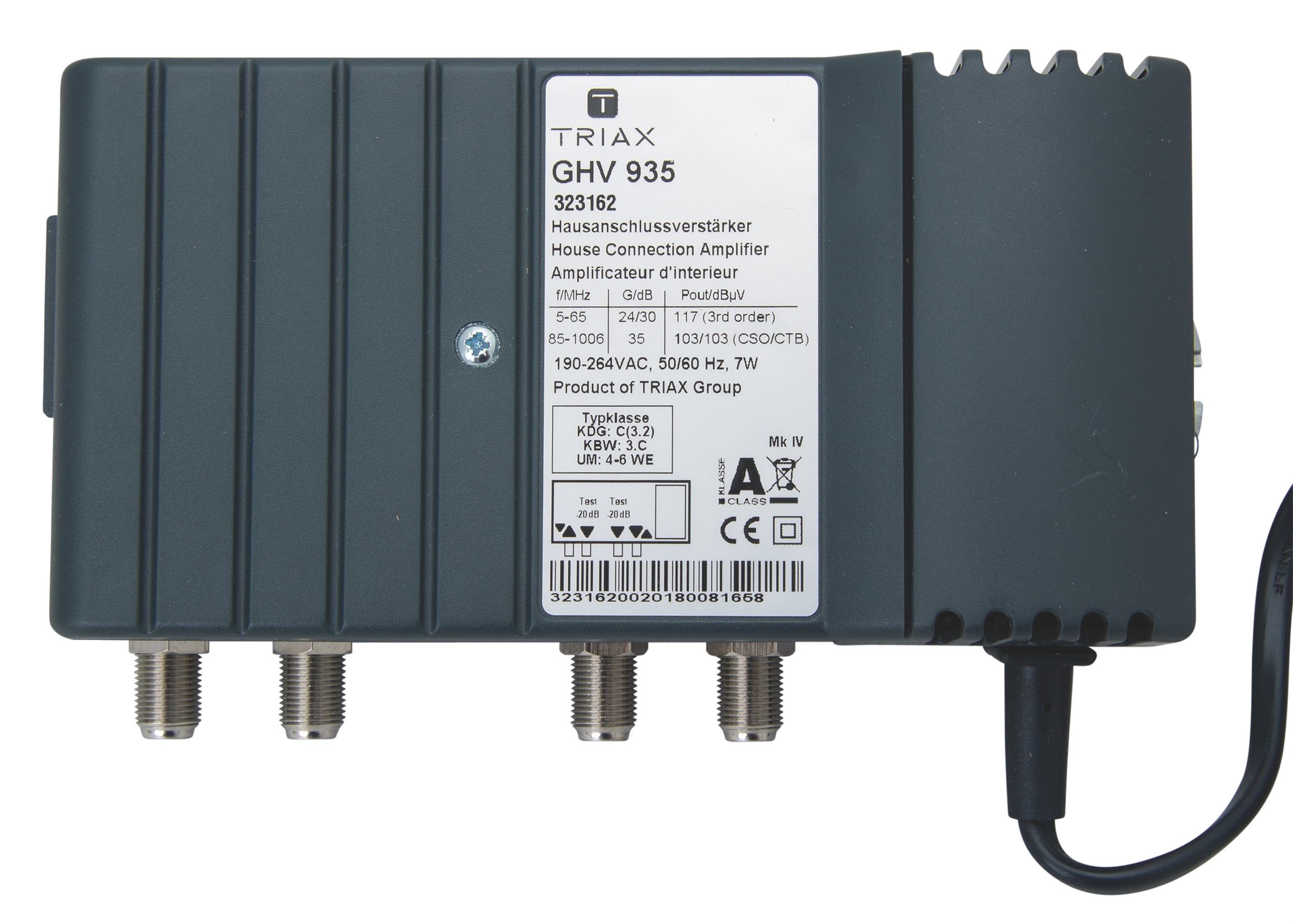

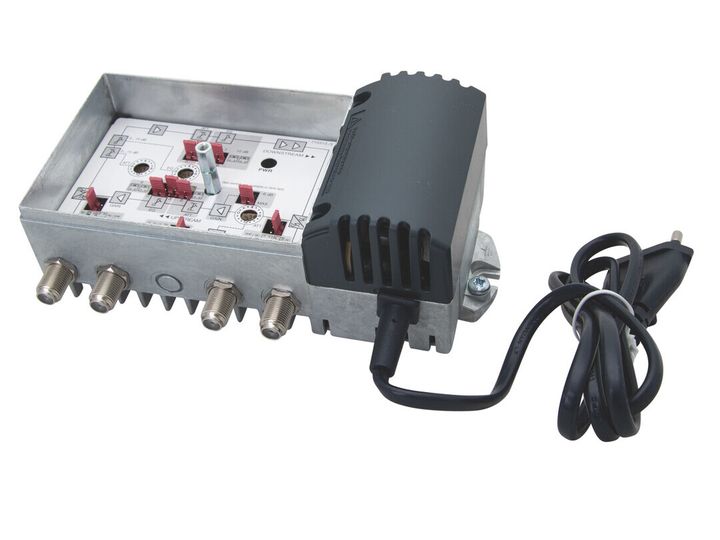

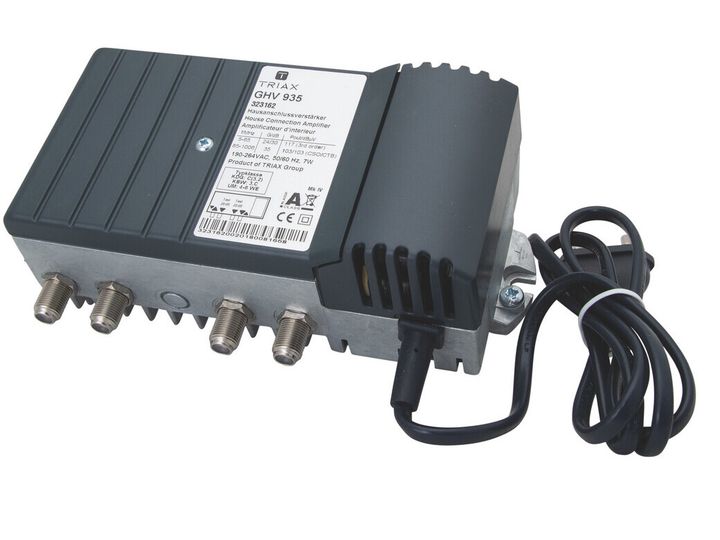

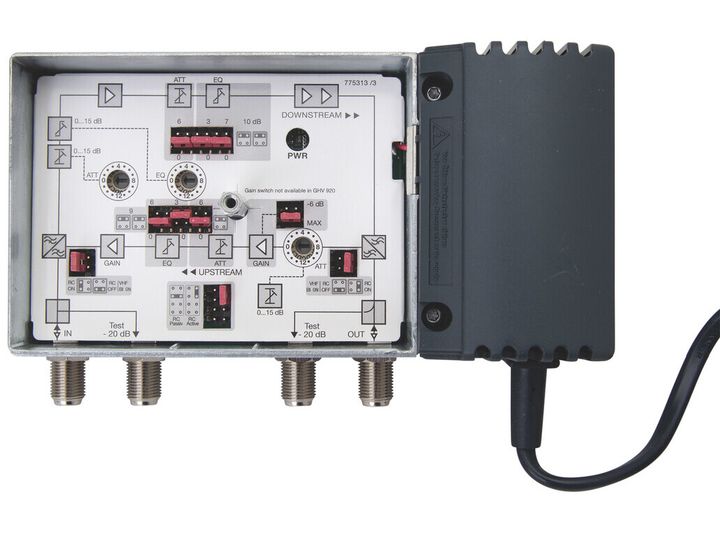

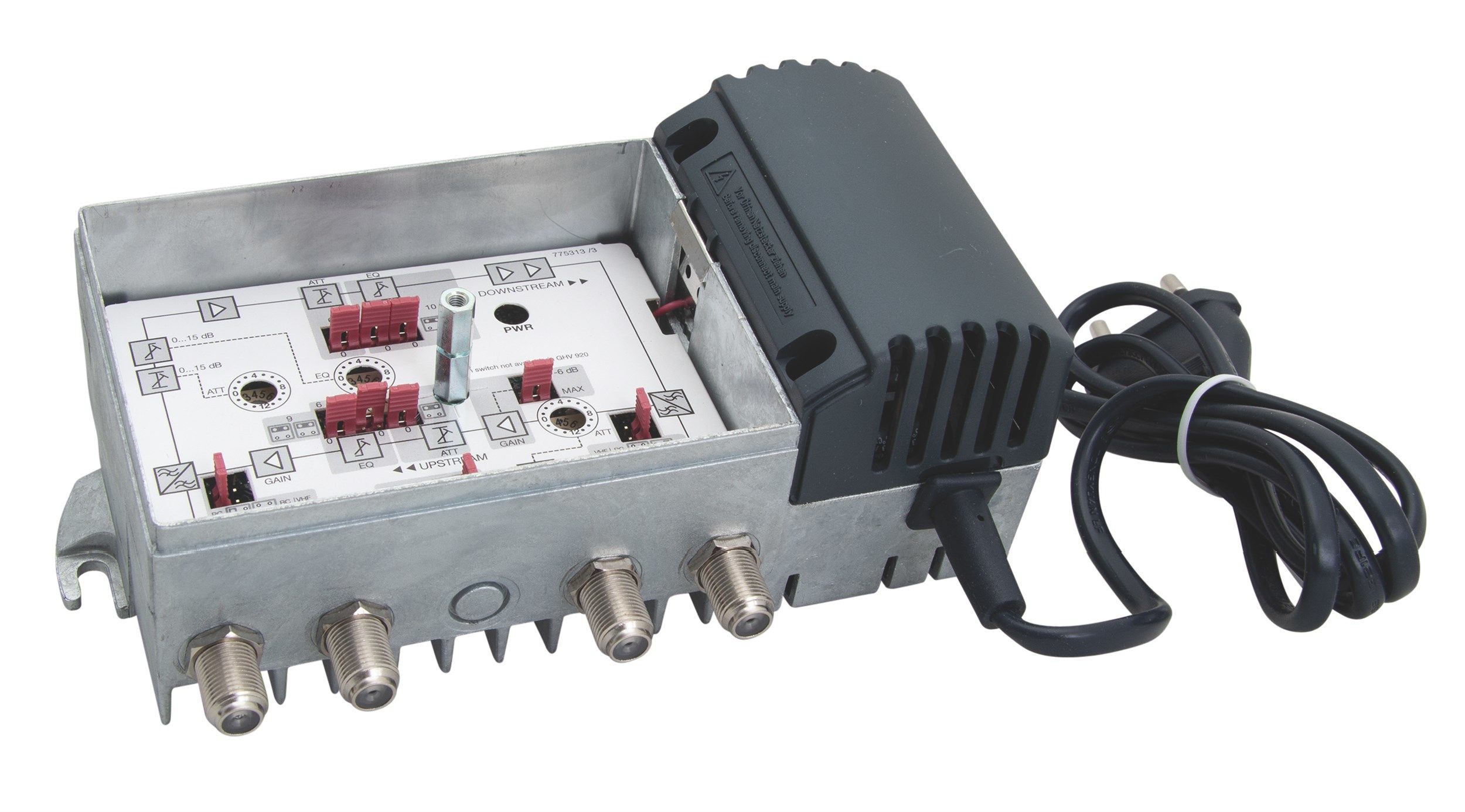

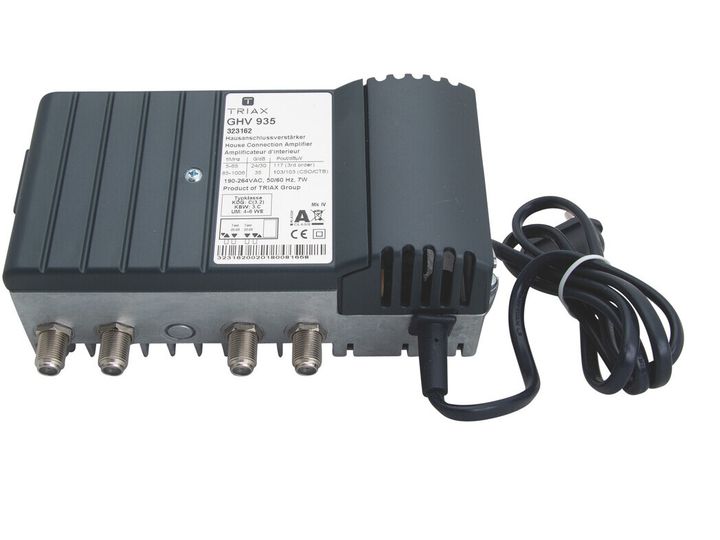

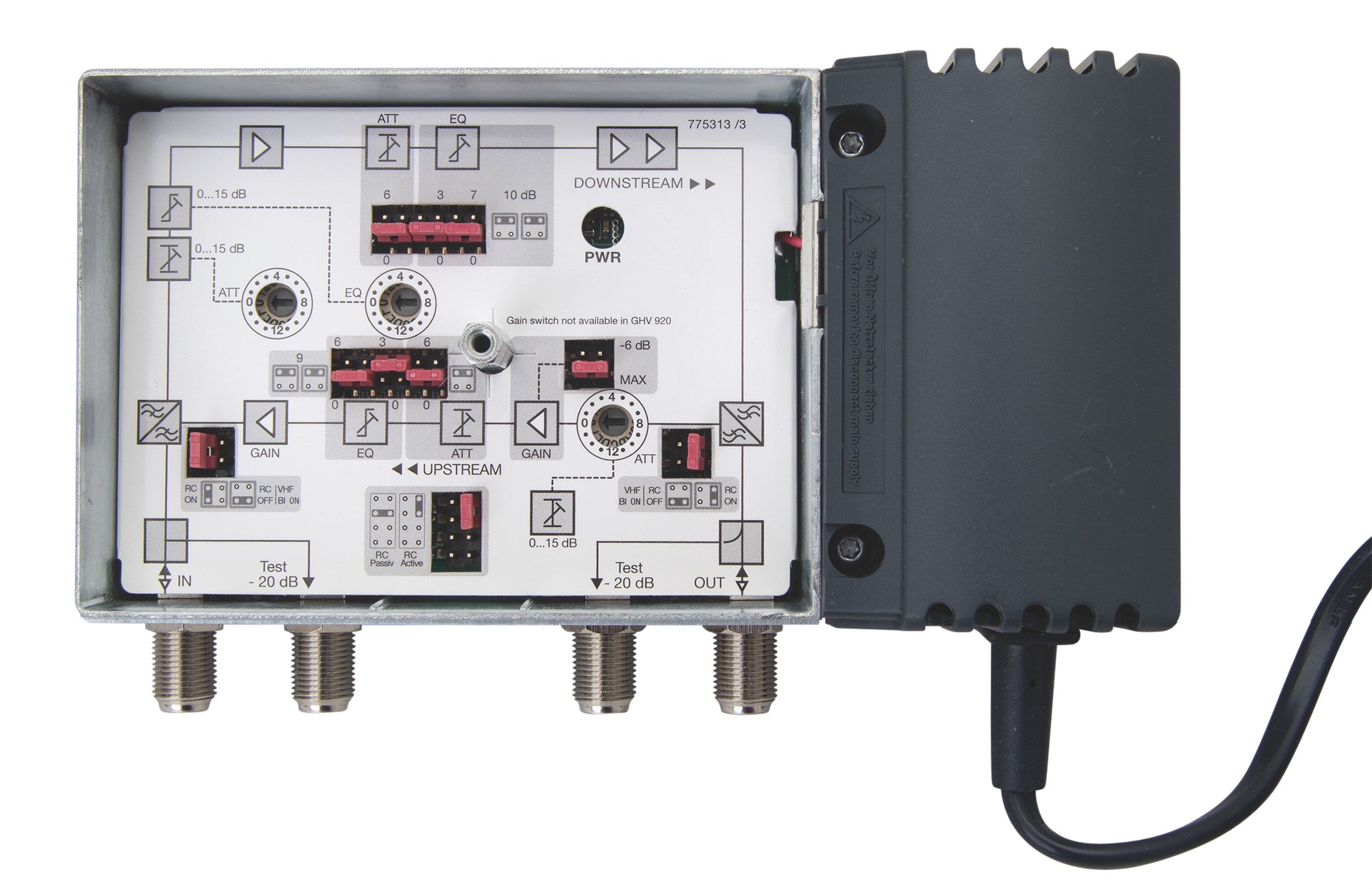

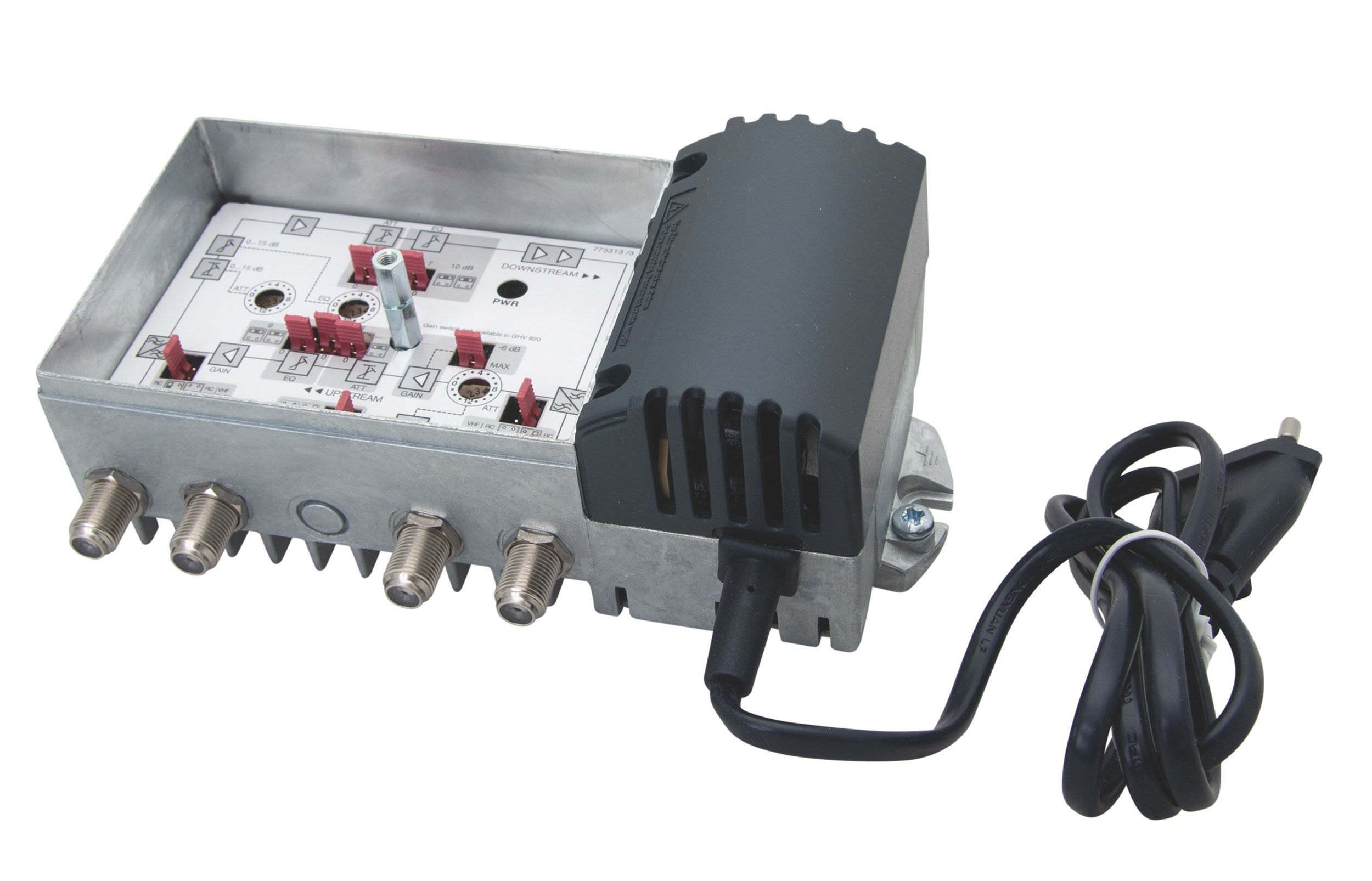

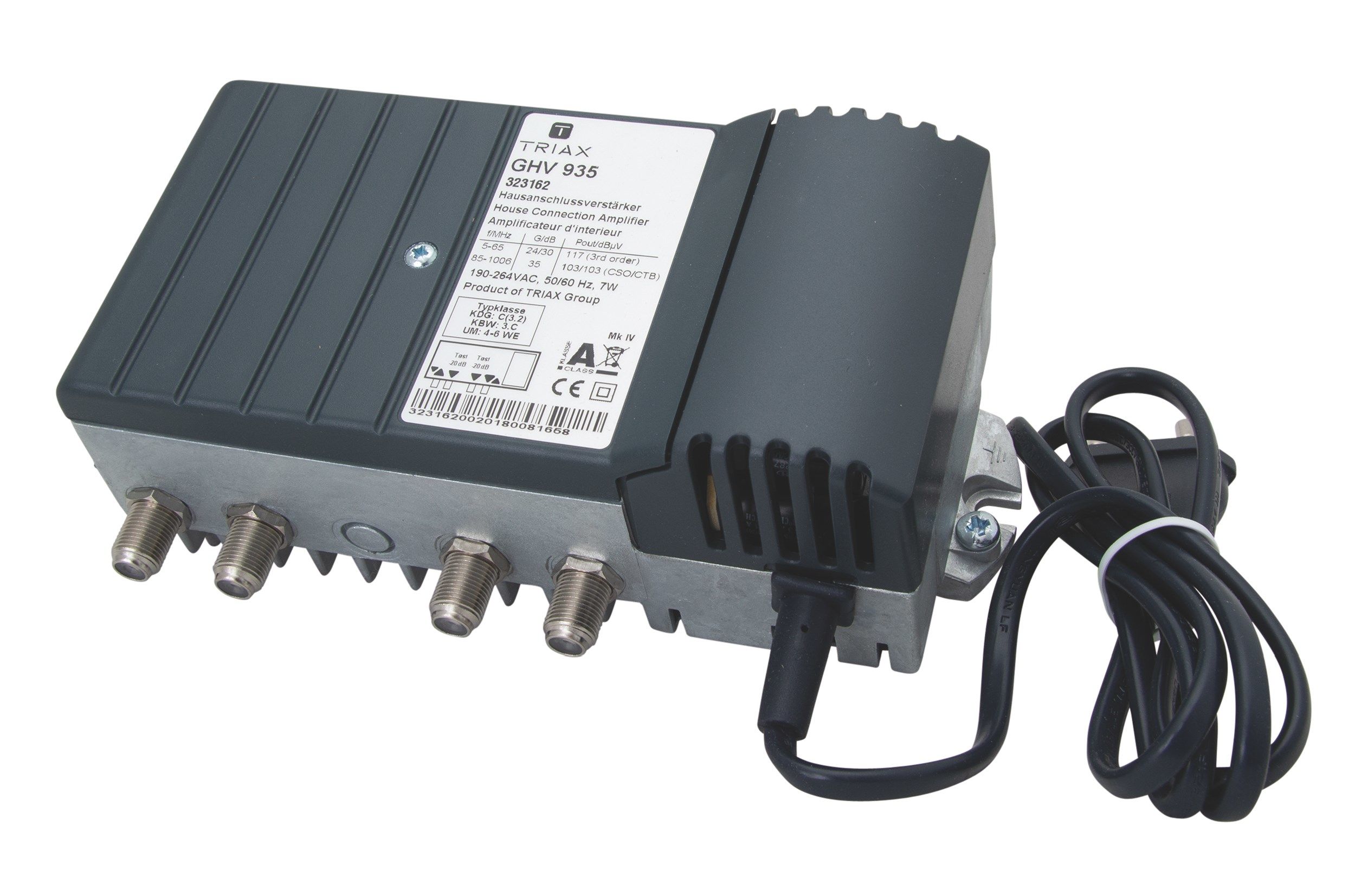

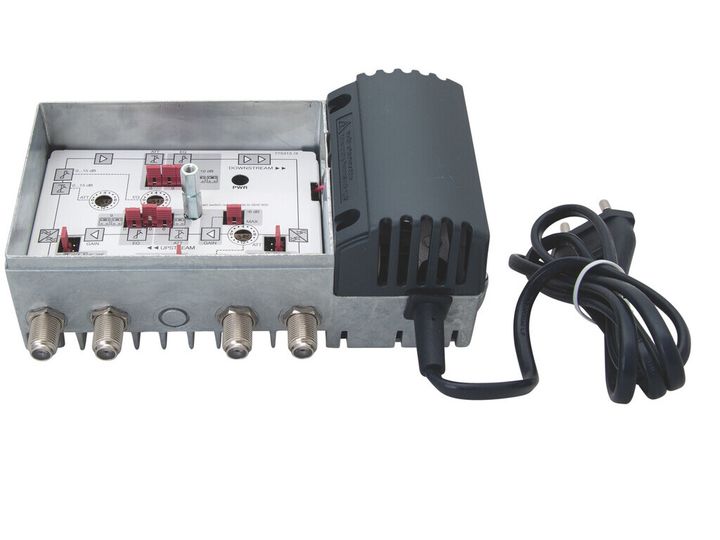

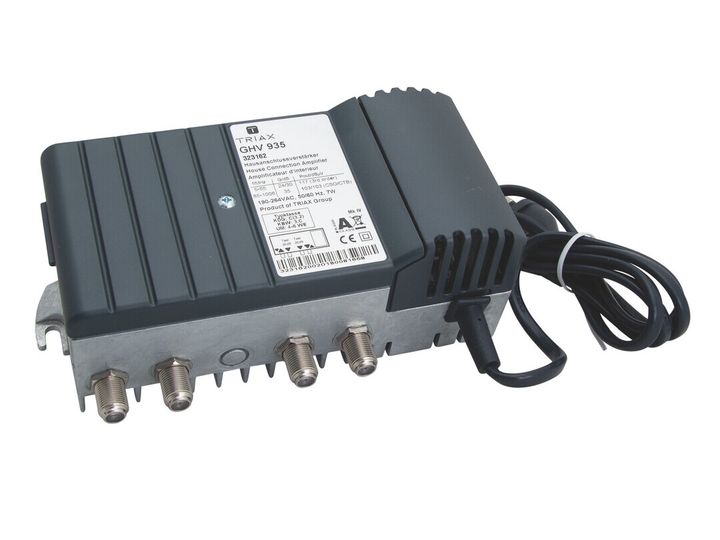

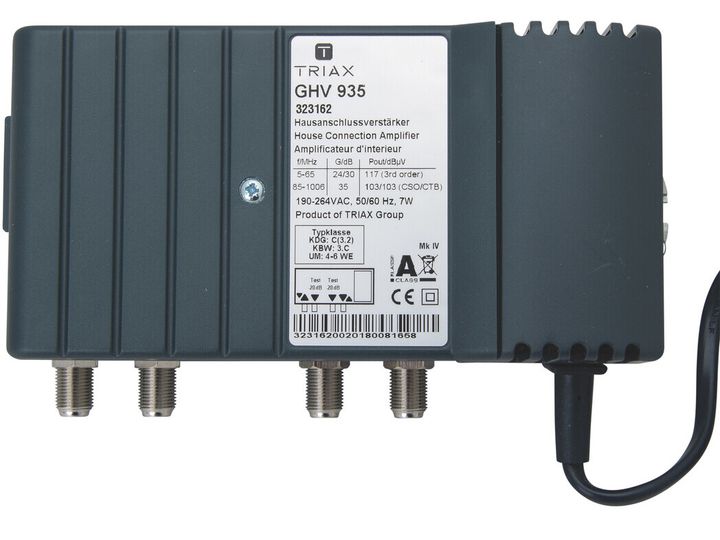

TRIAX GHV 900 series is a low noise coaxial house- and apartment- distribution amplifier, for use in smaller CATV distribution networks in multi dwelling houses.
Frequency range (return path)
5 - 65 MHz
Gain (forward path)
35 dB
Gain (return path)
30 dB
Noise figure
7 dB
Product colour
Black
International Protection (IP) code
IP20
Protection class
II
Frequency range
47 - 1006 MHz
Placement supported
Indoor
Compliance certificates
RoHS
Certification
EN 50083-3 - Class 2, EN 50083-1, EN 60065, EN 50083, 2RoHS 2002/95/EG
Connector(s)
RF
Power source type
AC
Power consumption (typical)
7 W
Input voltage
190 - 264 V
Operating temperature (T-T)
25 - 55 °C
Width
170 mm
Depth
100 mm
Height
65 mm
Weight
715 g
Package width
230 mm
Package depth
130 mm
Package height
70 mm
Package weight
806 g
Package tare weight
91 g
