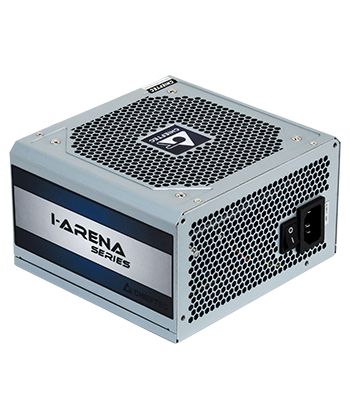

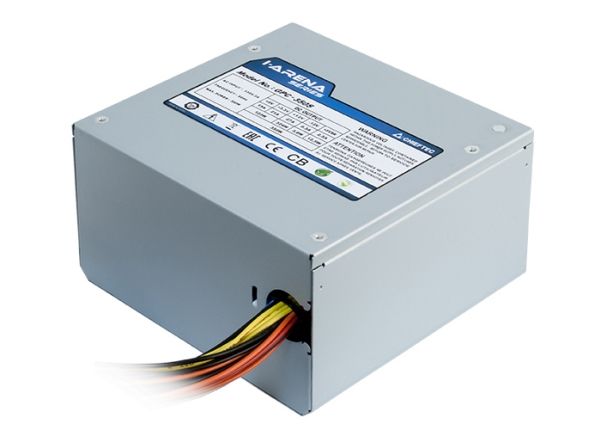

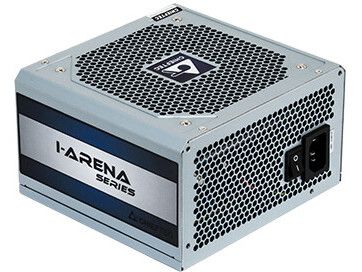

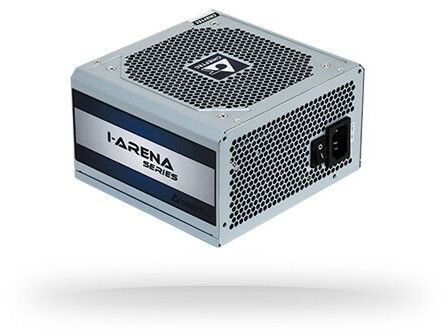

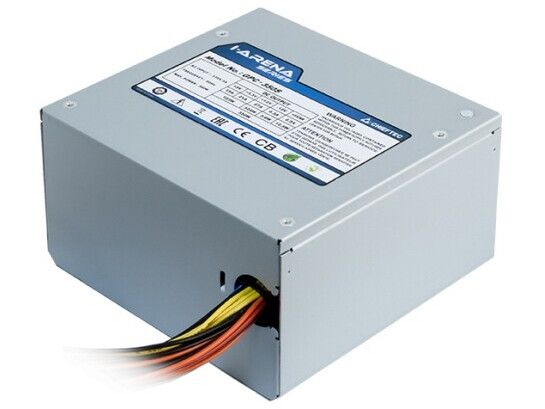

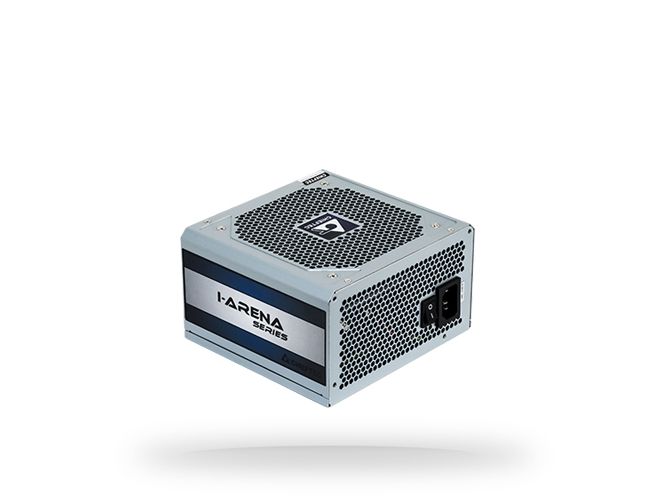

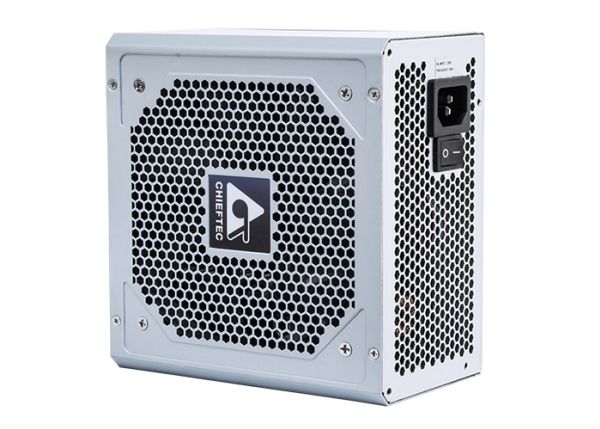

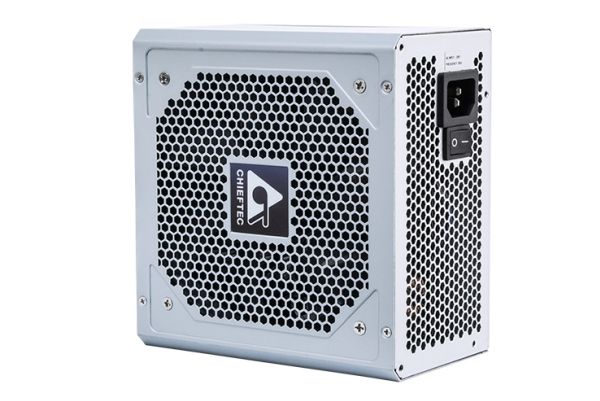

In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ PS/2
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 watt
Output Current
+5V - 22 A +3.3V - 22 A +12V1 - 52.5 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX 1 x effekt ATX12V 4-pin stik 6 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Kølesystem
120 mm ventilator
Farve
Sølv
Dimensioner (B x D x H)
15 cm x 14 cm x 8.7 cm
Producentgaranti
2 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ PS/2
PSU formfaktor
ATX
Farve
Sølv
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 1 x effekt ATX12V 4-pin stik 6 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 watt
Output Current
+5V - 22 A +3.3V - 22 A +12V1 - 52.5 A -12V - 0.3 A +5VSB - 2.5 A
Strømfaktor (PF)
0.9
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, blæserhastighedsstyring
Overensstemmelsesstandarder
TUV, CB, RoHS, ERP
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.7 cm
