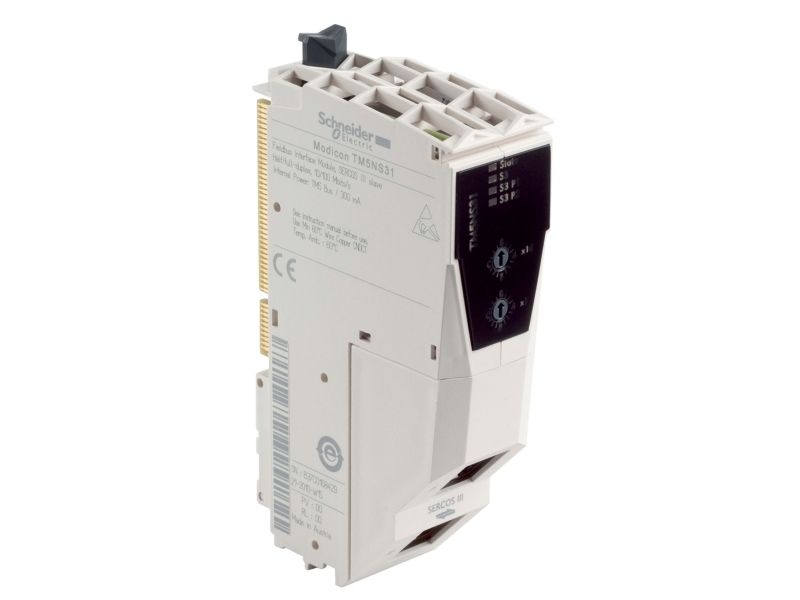

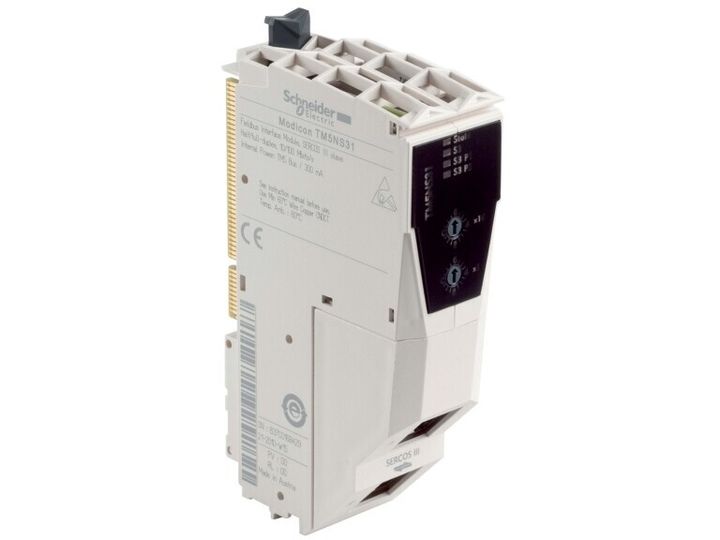

Schneider Electric Interface Module for Use with Motion controller
Item no.: [1307695] | Manufacturer: SCHNEIDER ELECTRIC | Model no.: TM5NS31 | EAN: 3595864109091 | UNSPSC.: 32151802 | EL-nr.: 7586034506
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
281,64
Incl. VAT 352,05
Total incl. delivery
367,05
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
The Schneider Electric field bus interface module is flexible and scalable, designed for complex machines. Maximum power dissipation 1.75 W Colour white
Radiostandard GSM
False
Kategori i henhold til EN 954-1
1
Understøtter protokol for DeviceNet Safety
False
Understøtter EtherNet/IP protokol
True
Understøtter protokol for øvrige bussystemer
False
Understøtter CAN-protokol
False
Understøtter AS-interface sikkerhed på jobbet
False
Understøtter protokol for SafetyBUS p
False
Understøtter protokol for INTERBUS-Safety
False
Tillhørende driftmiddel (Ex ia)
False
Tillhørende driftmiddel (Ex ib)
False
Understøtter protokol for PROFIBUS
False
Understøtter protokol for SUCONET
False
SIL i.h.t. IEC 61508
Ingen
Understøtter Data-Highway protokol
False
Radiostandard Bluetooth
False
Understøtter protokol for INTERBUS
False
Radiostandard GPRS
False
Radiostandard WLAN 802.11
False
Radiostandard UMTS
False
Eksplosionssikkerhedskategori for gas
Ingen
Velegnet til sikkerhedsfunktioner
False
Understøtter protokol for MODBUS
False
Understøtter protokol for PROFIsafe
False
Understøtter protokol for LON
False
Ydeevneniveau i.h.t. EN ISO 13849-1
Ingen
Understøtter protokol for TCP/IP
False
Med potentialadskillelse
False
Eksplosionssikkerhedskategori for støv
Ingen
Understøtter protokol for SafetyBUS p
False
Understøtter protokol for PROFINET IO
False
Understøtter protokol for SERCOS
True
Understøtter ASI-protokol
False
Understøtter KNX protokol
False
Understøtter DeviceNet protokol
False
Understøtter protokol for Foundation Fieldbus
False
IO link master
False
Dybde
75 mm
Højde
99 mm
Bredde
37.5 mm
Antal HW-snitflader andre
0
Redundans
False
Antal HW-snitflader RS485
0
Dataoverførselstype
Andet
Antal HW-snitflader parallel
0
Antal HW-interfaces Wireless
0
Transmissionshastighed
10000 kBit/s
Antal HW-snitflader RS232
0
Optisk interface
False
Antal HW-snitflader RS422
0
Antal HW-snitflader industriel Ethernet
2
Antal HW-snitflader seriel TTY
0
Antal HW-snitflader USB
0
Antal HW-interfaces PROFINET
0
