The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
131,22
Incl. VAT 164,03
Total incl. delivery
179,03
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

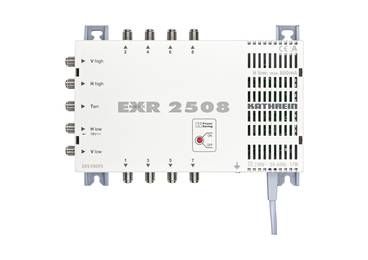

- Multi-switch for eight connections, with an integrated power supply unit - Low power consumption due to highly efficient, short-circuit proof switched-mode power supply unit and energy-saving concept (each multi-switch line is powered by the receiver connected to it and is thus switched off whenever the receiver is switched off) - Kathrein-Power-Saving: LNB supply is switched off as soon as connected to the EXE 2508 or not other receiver is used in the cascade. - This feature can be disabled, for example if loop-through multi-switches are used without Kathrein Power Saving in the cascade - Cascadable with EXR 2554/2558
Number of inputs
5 inputs
Number of outputs
8 outputs
Output frequency range (satellite)
950 - 2150 MHz
Output frequency range (terrestrial)
5 - 862 MHz
Connection loss (satellite)
5 - 0 dB
International Protection (IP) code
IP30
Protection class
II
RF connector type
F
Cascadable
Yes
Input voltage
230 V
Input frequency
50/60 Hz
Output voltage
109 dBµV
Operating temperature (T-T)
20 - 55 °C
Width
215 mm
Depth
43 mm
Height
148 mm
Package weight
650 g
The item is known under the following item numbers in our system
EAN:
4021121522772
SKU:
4021121522772
