SCHNEIDER ELECTRIC Trykknapkasse kapsling. Med 4 huller Grå for ZB5 tryk bundmontering og ZENL elementer

Schneider Electric | Harmony XALK and XALD Series | Push Button Enclosures
Harmony is a machine and panel solution series from Schneider Electric, the series includes push buttons, pilot lights, switches and other panel solutions offering high-performance without compromise. Offering modern and stylish design, efficiency, robustness in harsh environments, the Harmony series is one of the most comprehensive ranges available.
The Harmony XALK and XALD series is a variety of push button enclosures or control stations, which are compatible with other items in the Harmony range such as push buttons, mushroom head operators, legend plates and LEDs. Perfectly suited for many typical functions such as start, stop, start-stop and emergency stop, they have been specifically designed for simple installation whilst having a robust construction. Stations are complete and ready for assembly in order to meet your requirements, available are 1, 2, 3, 4 or 5 cut outs which are compatible with the Harmony XB5 units and push buttons. Protected to IP65 and NEMA 4 these enclosures are dusts and damp proof, whilst also conforming to IEC, UL and CSA standards.
XALD complete control stations are fitted with 1, 2 or 3 ? 22 mm control and signalling units from the Harmony XB5 range
XALK complete control stations for emergency stop function (mushroom head push buttons)
Features and Benefits:
- Flush mounting
- Dust and damp proof
- Lightweight
- XALD for ? 22 mm control and signalling units
Protection ratings & Safety features:
- Overvoltage rating Class II conforming to IEC 60536
- IP69, IP67, IP66 conforming to IEC 60529, IP69K and IK03 conforming to EN 50102
- NEMA 13 and NEMA 4X
- EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508 and CSA C22.2 No 14
Applications -
Industry, service sector and infrastructure such as:
- Chemical industry
- Marine
- Energy distribution
- Panel builders
- Car washes
- Food and Beverage
Standards
CE Marked, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520.
Approvals
UL, CSA.

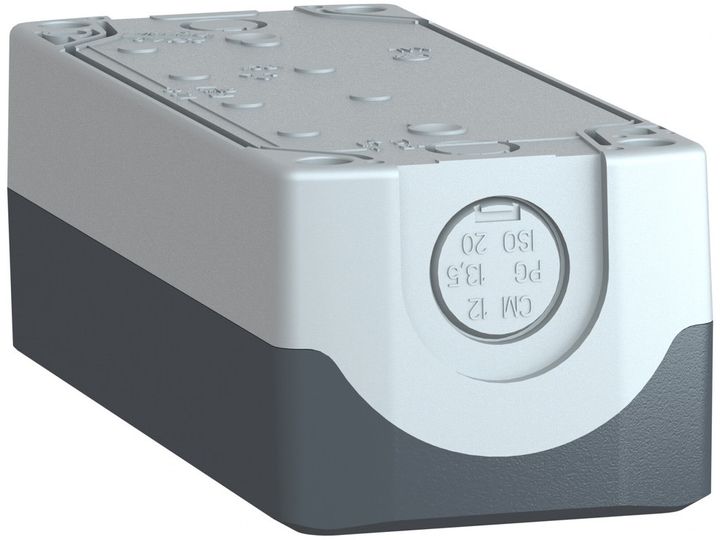

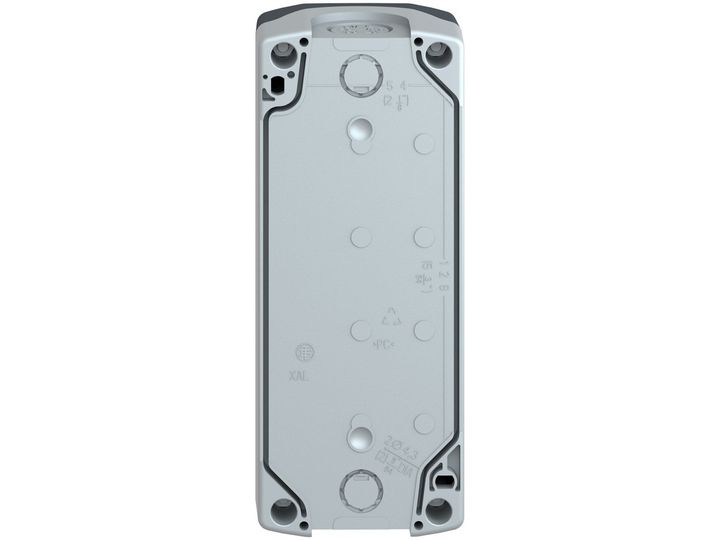

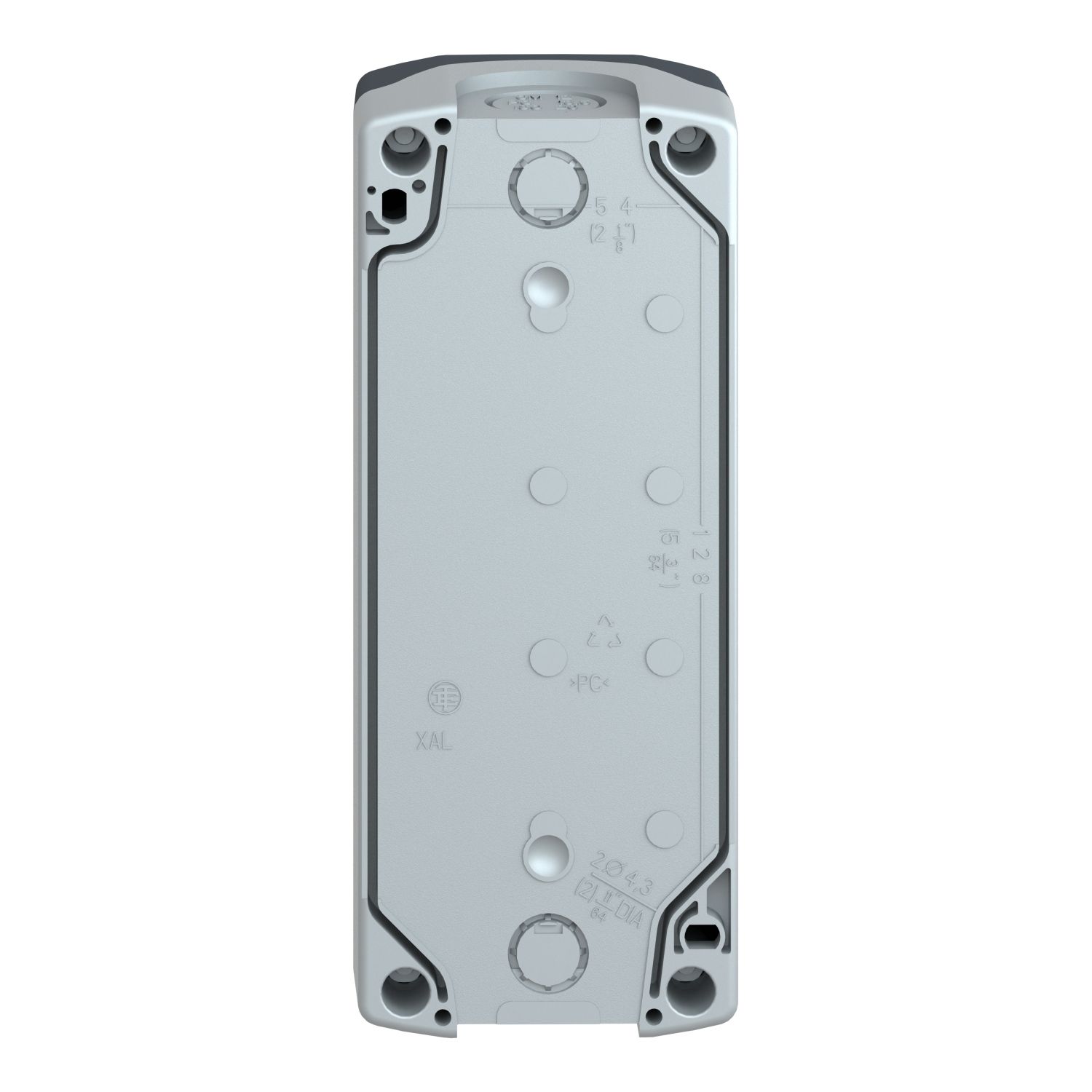

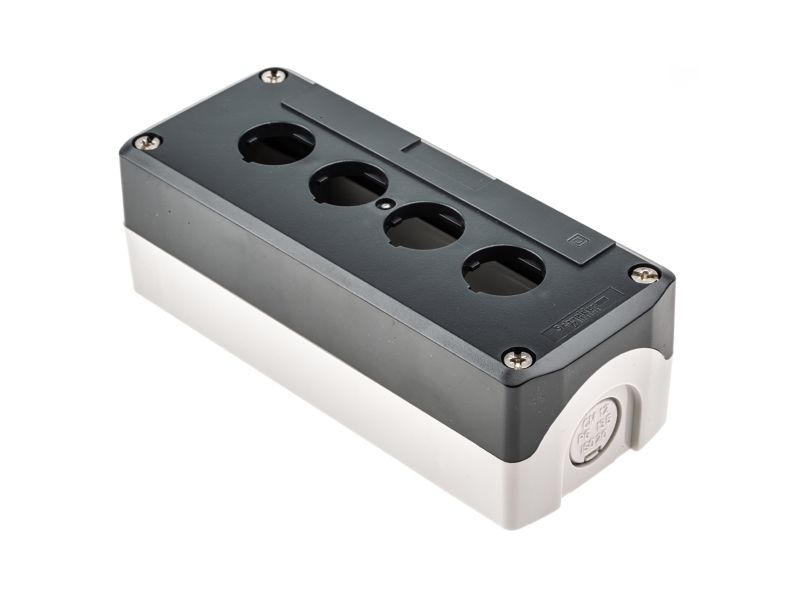

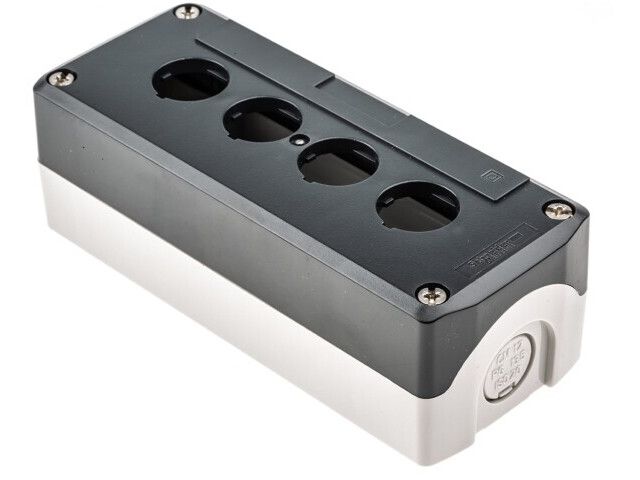

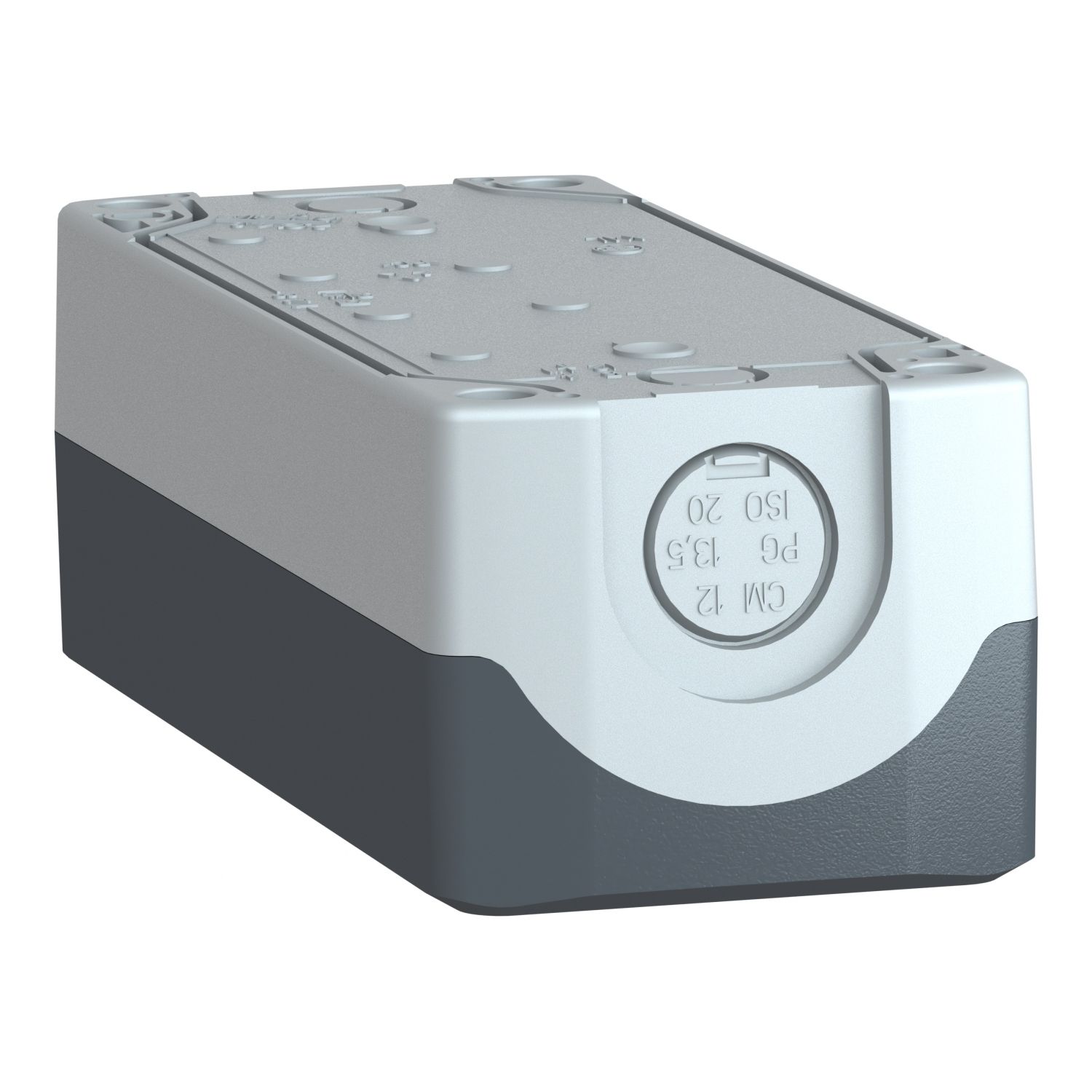

Schneider Electric Harmony XALD Series Control Station Enclosure, 166 x 68 x 53 mm, Plastic Enclosure - XALD04
This control station enclosure by Schneider Electric is a versatile solution for various industrial applications. With a grey plastic enclosure, this product offers durability and reliability for your control station needs.
Features & Benefits
- Cutout diameter of 22mm for easy installation
- Temperature range of -40?°C to +70?°C for extreme operational conditions
- Weatherproof design for outdoor use
- High-quality plastic material for longevity
Applications
- Ideal for use with control and signalling units
- Suitable for industrial control stations requiring a compact and robust enclosure
Can it withstand high temperatures?
Yes, this enclosure has a temperature range of -40?°C to +70?°C.
Is it suitable for outdoor use?
Yes, this weatherproof enclosure is reliable for outdoor applications.
Will it fit XB5 ? 22mm control units?
Yes, it is designed to work seamlessly with XB5 control units.
