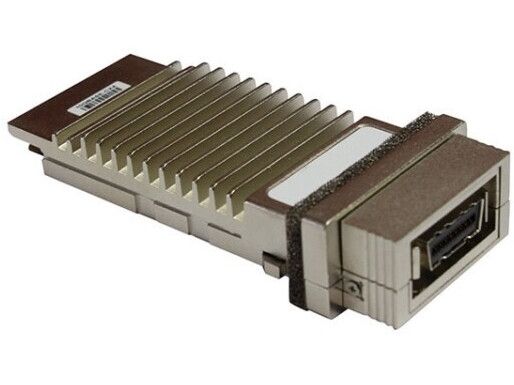

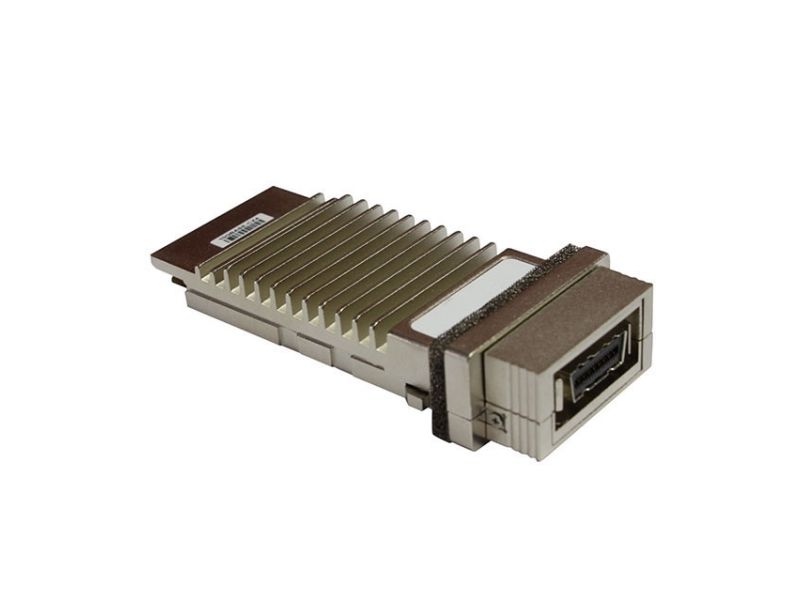

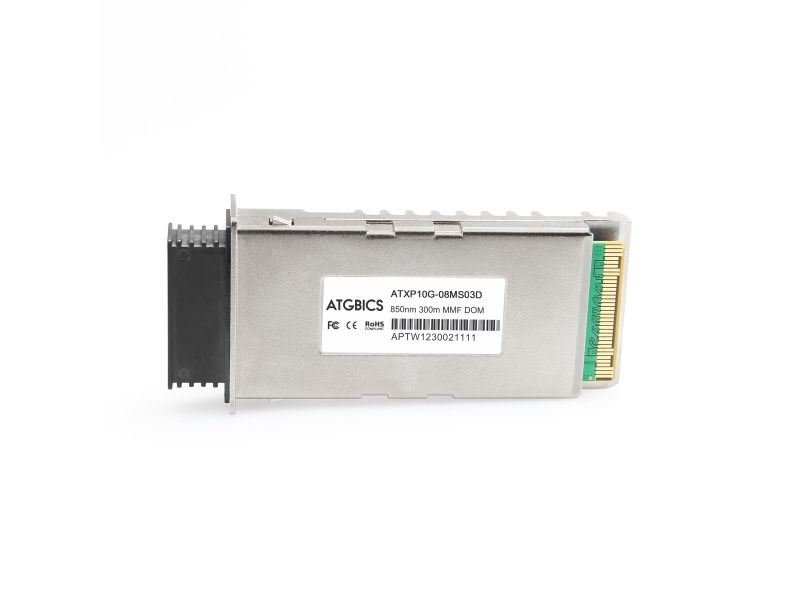

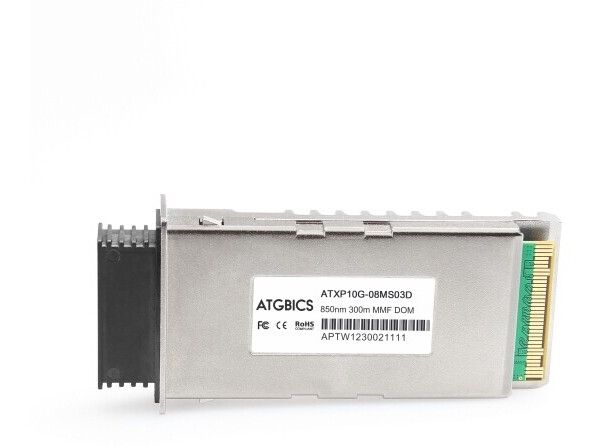

ATGBICS X2-10GB-SR Cisco Compatible Transceiver X2 10GBase-SR (850nm, MMF, 300m, DOM), Fiber optic, 10000 Mbit/s, XFP, SC, SR, 300 m
Item no.: [1330777] | Manufacturer: Prolabs | Model no.: X2-10GB-SR-C | EAN: 4260380720622
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
104,97
Incl. VAT 131,21
Total incl. delivery
146,21
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
The X2-10GB-SR-C Transceiver is a hot pluggable module in the Z-direction that is usable in typical router line card applications. The maximum transmission length of X2-10GB-SR-C is defined from 26m to 300m, depending on multimode fiber types.
The X2-10GB-SR-C is a fully integrated 10.3Gbit/s optical transceiver module that consists of an 850nm wavelength VCSEL optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery (CDR). The transponder operates within a wide temperature range of 0 °C to 70°C and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10.3 Gbps systems. A 70-pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the X2 MSA.
The X2-10GB-SR-C is a fully integrated 10.3Gbit/s optical transceiver module that consists of an 850nm wavelength VCSEL optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery (CDR). The transponder operates within a wide temperature range of 0 °C to 70°C and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10.3 Gbps systems. A 70-pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the X2 MSA.
