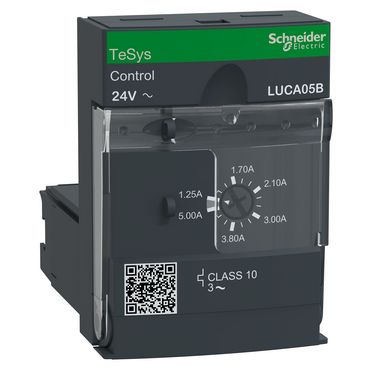

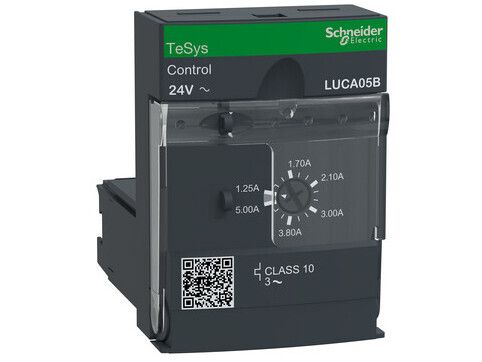

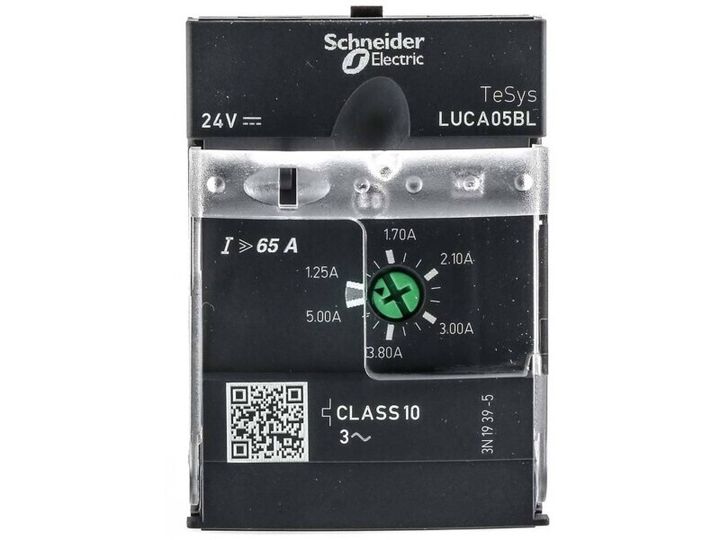

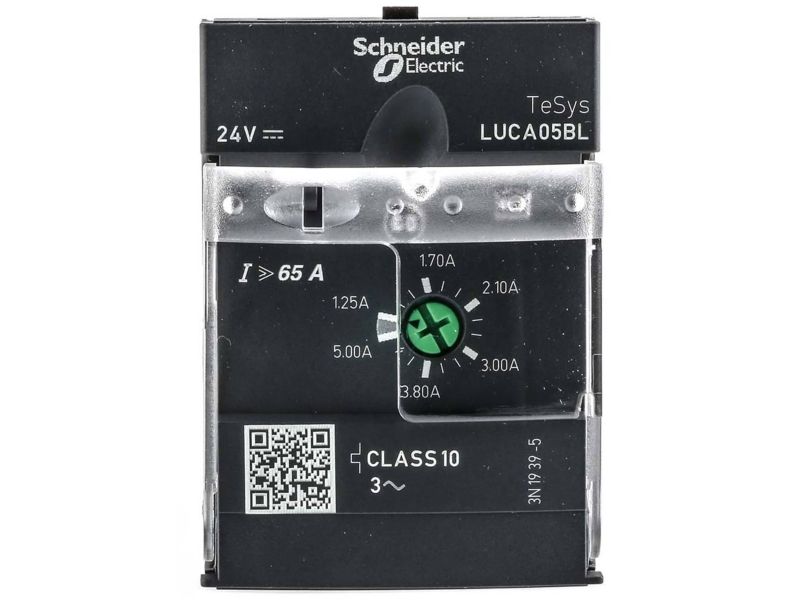

SCHNEIDER ELECTRIC Strømmodul 1,25-5A Styrespænding 24VDC, for TeSys motorstarter modul U
Item no.: [1369511] | Manufacturer: SCHNEIDER ELECTRIC | Model no.: LUCA05BL | EAN: 3389110363838 | VVS-nr.: 7522500641 | UNSPSC.: 39121601 | EL-nr.: 7522500641
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
106,48
Incl. VAT 133,10
Total incl. delivery
148,10
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
