Navilock NL-852EUSB, USB, -167 dBmW, u-blox 8, B1, E1, L1, 1575.42 MHz, 26 s
Item no.: [1396340] | Manufacturer: NaviLock | Model no.: 62575 | EAN: 4043619625758
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
86,87
Incl. VAT 108,59
Total incl. delivery
123,59
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

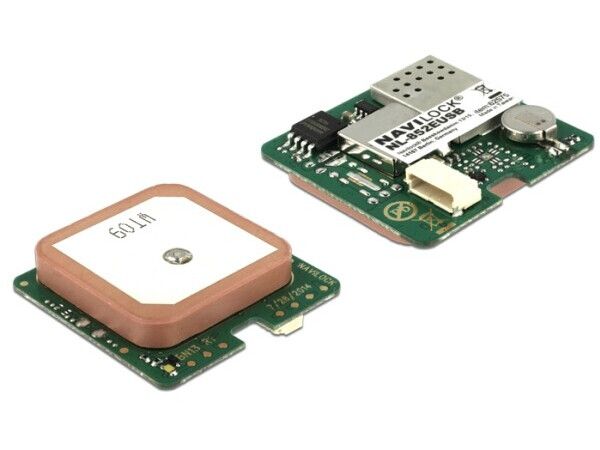

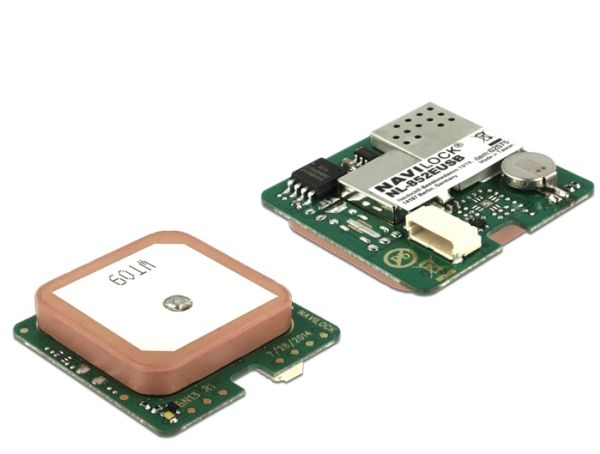

GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses USB 2.0.
- Connector: WTB USB 2.0
- Chipset: u-blox 8 UBX-M8030-KT
- Frequency:
- GPS: L1, 1575.4200 MHz
- GLONASS: L1, 1602 (k x 0,5625) MHz
- BEIDOU COMPASS: B1, 1561.0980 MHz
- GALILEO E1, 1575.4200 MHz
- QZSS L1, 1575.4200 MHz
- Accepts the signals of up to 72 satellites at the same time
- Supports AssistNow online/offline,
- SBAS (WAAS, EGNOS, QZSS and MSAS)
- Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
- USB specification 2.0
- Auto Baud Rate up to 115200 bps
- Update rate:
- single GNSS: 18 Hz (e.g. GPS solo)
- multi GNSS: 10 Hz (e.g. GPS+GLONASS)
- Sensitivity: –167 dBm
- LED-indicator for GPS-status
- Operating temperature:
- 40 °C ~ 85 °C without battery
- 20 °C ~ 60 °C with battery
- Power supply: 5 Volt
- Current consumption: max. 45 mA
- Cold start in ca. 26 seconds
- Hot start in ca. 1 second
- Positioning accuracy:
- 2.5 m CEP (Circular Error Probable) and
- 2.0 m CEP with SBAS
- Dimension (LxWxH): ca. 30 x30 x 7.90 mm
- Connector: WTB USB 2.0
- Chipset: u-blox 8 UBX-M8030-KT
- Frequency:
- GPS: L1, 1575.4200 MHz
- GLONASS: L1, 1602 (k x 0,5625) MHz
- BEIDOU COMPASS: B1, 1561.0980 MHz
- GALILEO E1, 1575.4200 MHz
- QZSS L1, 1575.4200 MHz
- Accepts the signals of up to 72 satellites at the same time
- Supports AssistNow online/offline,
- SBAS (WAAS, EGNOS, QZSS and MSAS)
- Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
- USB specification 2.0
- Auto Baud Rate up to 115200 bps
- Update rate:
- single GNSS: 18 Hz (e.g. GPS solo)
- multi GNSS: 10 Hz (e.g. GPS+GLONASS)
- Sensitivity: –167 dBm
- LED-indicator for GPS-status
- Operating temperature:
- 40 °C ~ 85 °C without battery
- 20 °C ~ 60 °C with battery
- Power supply: 5 Volt
- Current consumption: max. 45 mA
- Cold start in ca. 26 seconds
- Hot start in ca. 1 second
- Positioning accuracy:
- 2.5 m CEP (Circular Error Probable) and
- 2.0 m CEP with SBAS
- Dimension (LxWxH): ca. 30 x30 x 7.90 mm
