The iBOX CUBE II power supply is designed to provide reliable and efficient power for all computing needs. It delivers a maximum output of 400 W, ensuring that high-performance components receive stable power. This internal power supply complies with the ATX12V 2.2 specification, making it suitable for standard ATX cases. Its dual 12V rails distribute power effectively, supporting a variety of systems with different requirements.
Safety is a priority with this power supply, featuring multiple protection mechanisms such as overheat protection, overcurrent protection, and short-circuit protection. The built-in temperature controlled fan operates quietly at 20 dB, providing effective cooling without disruptive noise. An on/off switch offers convenient control over the unit, while RoHS compliance assures users of a product adherent to environmental standards.
Produktbeskrivelse

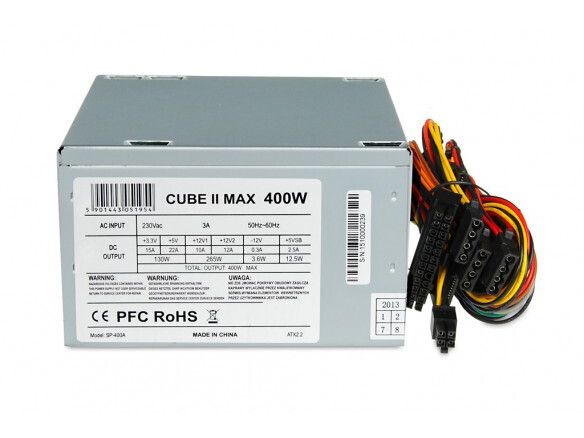

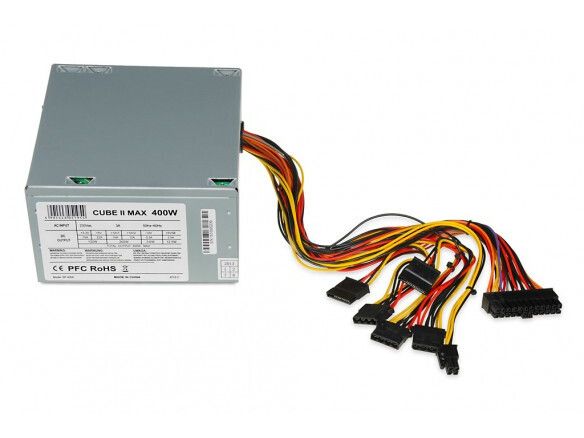

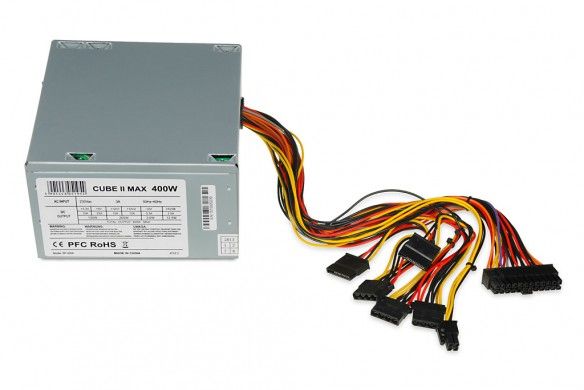

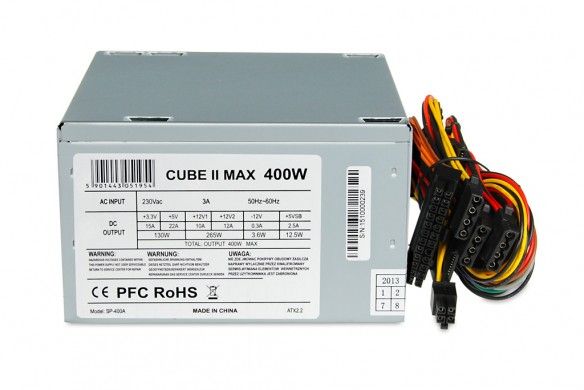

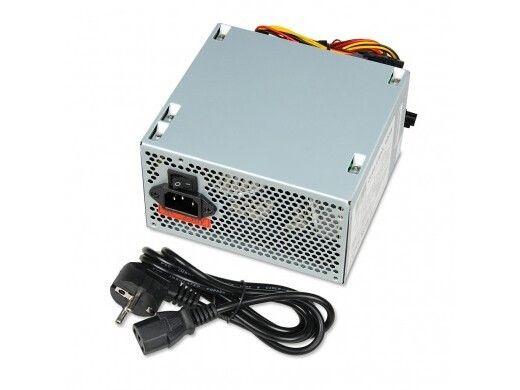

iBOX CUBE II - strømforsyning - 400 watt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.2
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
400 watt
Output Current
+3.3V - 15 A +5V - 22 A +12V1 - 10 A +12V2 - 12 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 2 x 15 pin Serial ATA strøm 3 x strøm 4-pin stikforbindelse

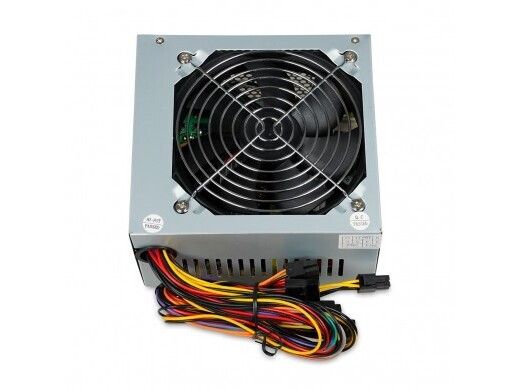

Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.5 cm
Generelt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.2
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 2 x 15 pin Serial ATA strøm 3 x strøm 4-pin stikforbindelse
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
400 watt
Output Current
+3.3V - 15 A +5V - 22 A +12V1 - 10 A +12V2 - 12 A -12V - 0.3 A +5VSB - 2.5 A
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Kontakt for tænd/sluk, beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, dobbelt 12V skinner, kortslutnings beskyttelse, temperatur kontrolleret blæser, ikke-modulær
Overensstemmelsesstandarder
RoHS
Miljømæssige parametre
Lydudbredelse
20 dB
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.5 cm
