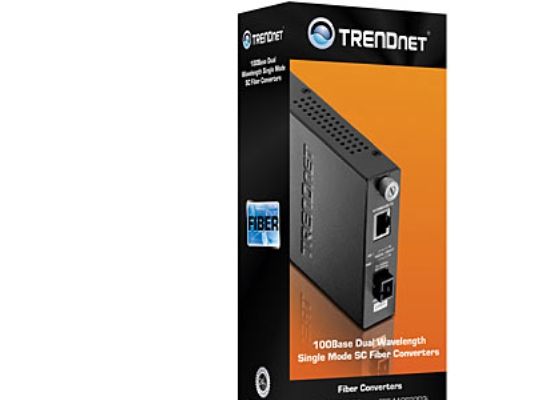

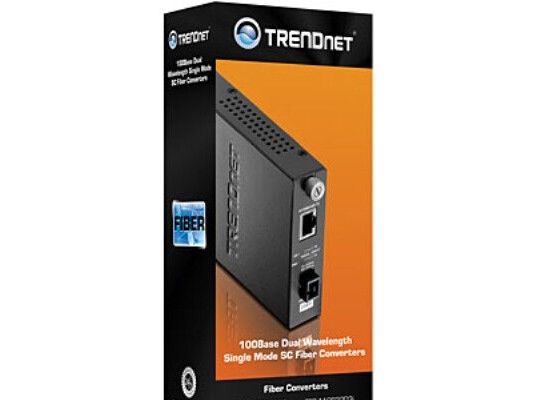

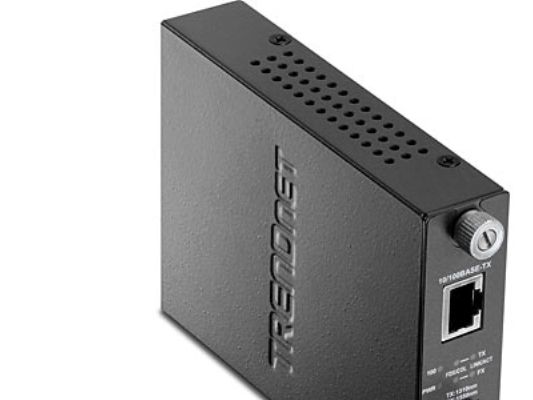

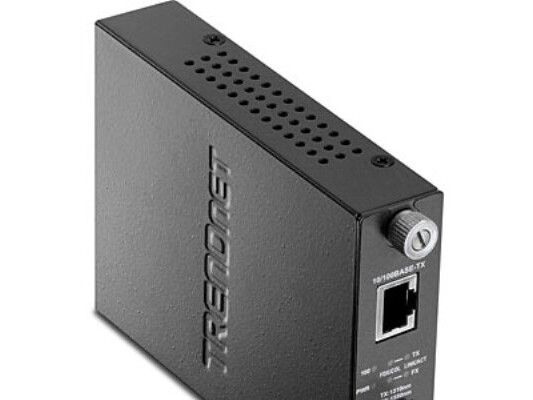

The TFC-110S20D3i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a dual wavelength single mode SC-Type fiber converter that spans distances up to 20 km (12.4 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC simplex type) port.
Produktbeskrivelse
TRENDnet TFC 110S20D3I - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype
Fibermedieomformer - SC enkelttilstand / RJ-45
Model
Ekstern
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataoverførselshastighed
200 Mbps
Optisk bølgelængde
1310 (TX) / 1550 (RX) nm
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Protokol til fjernadministration
SNMP
Maks. overføringsafstand
20 km
Effekt
AC 120/230 V
Dimensioner (B x D x H)
12 cm x 8.8 cm x 2.5 cm
Vægt
354 g
Producentgaranti
Begrænset livtidsgaranti
Generelt
Enhedstype
Fibermedieomformer
Model
Ekstern
Netværk
Forbindelsesteknologi
Kablet
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Dataoverførselshastighed
200 Mbps
Optisk bølgelængde
1310 (TX) / 1550 (RX) nm
Protokol til fjernadministration
SNMP
Maks. overføringsafstand
20 km
Statusindikatorer
Strøm, link/aktivitet
Egenskaber
Auto-negotiation, halv dupleksmodus, fuld dupleksmodus, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), til vægmontering
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u
Ekspansion / Konnektivitet
Interface
1 x Ethernet 100Base-FX - SC single-mode hun 1 x Ethernet 10Base-T/100Base-TX - RJ-45 hun
Diverse
Overensstemmelsesstandarder
FCC, RoHS
Effekt
Strømenhed
Ekstern strømforsyning
Nødvendig spænding
AC 120/230 V (50/60 Hz)
Strømforbrug ved drift
2 Watt
Mål og vægt
Bredde
12 cm
Dybde
8.8 cm
Højde
2.5 cm
Vægt
354 g
Producentgaranti
Service & Support
Begrænset garanti - livstid
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
0 - 90%
