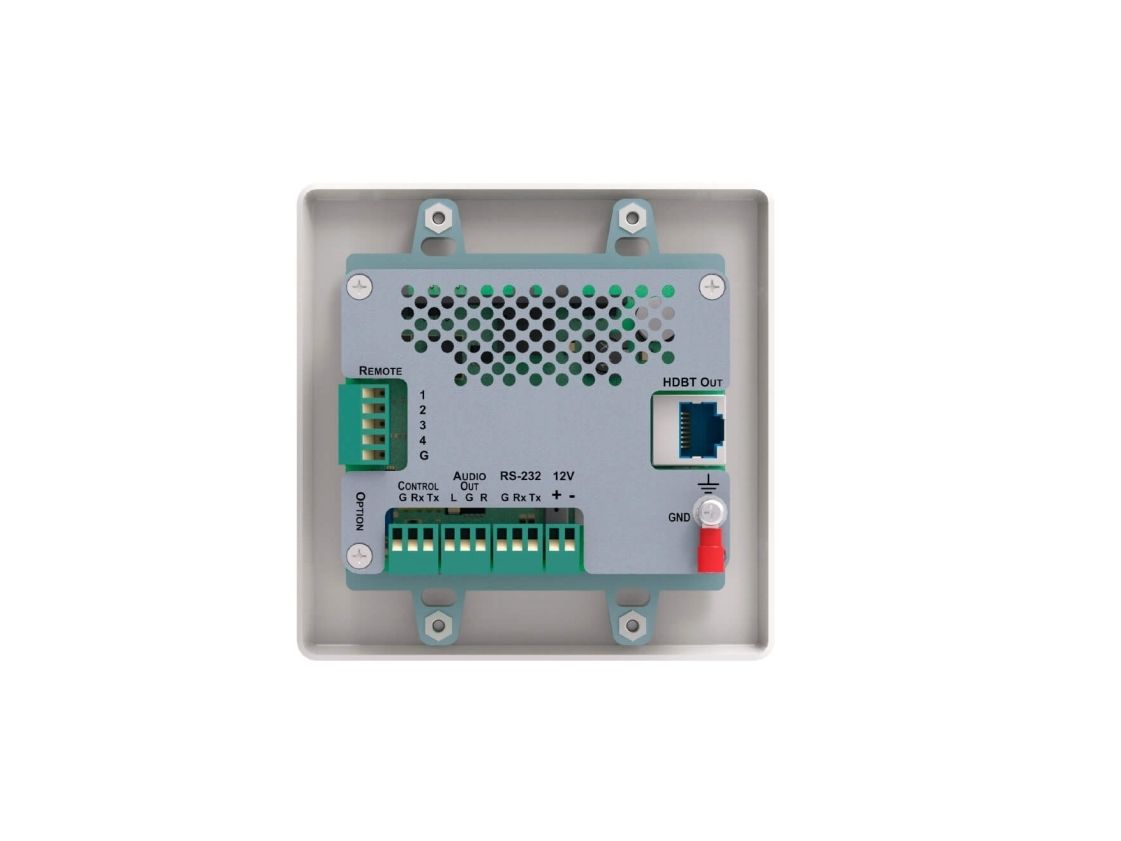

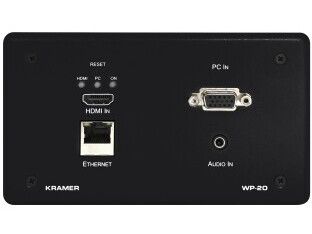

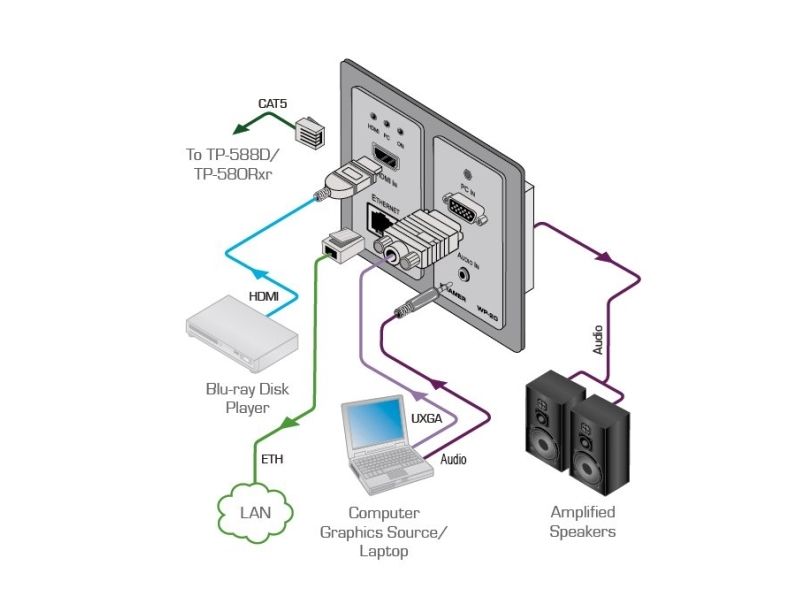

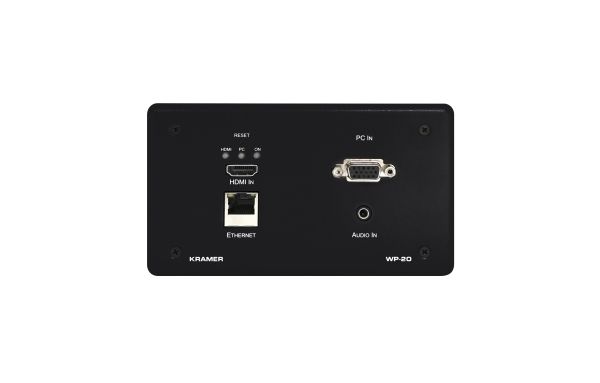

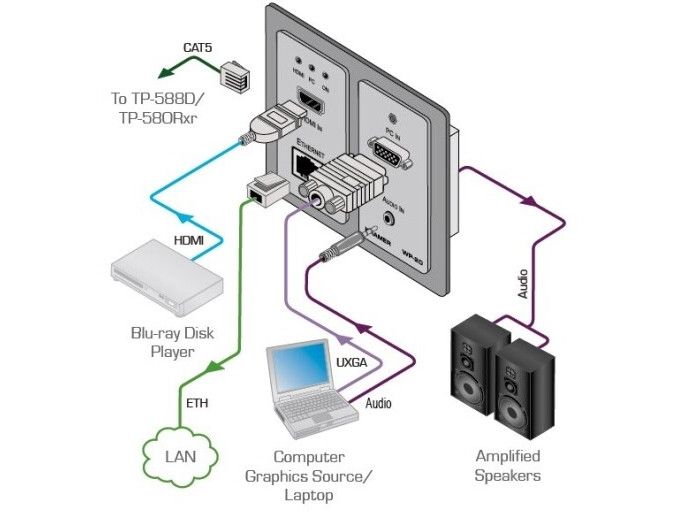

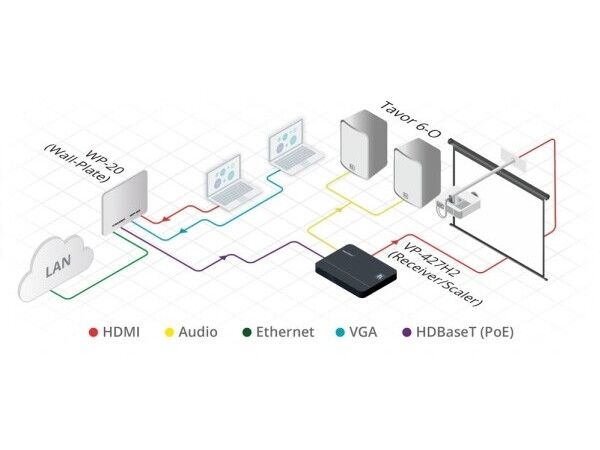

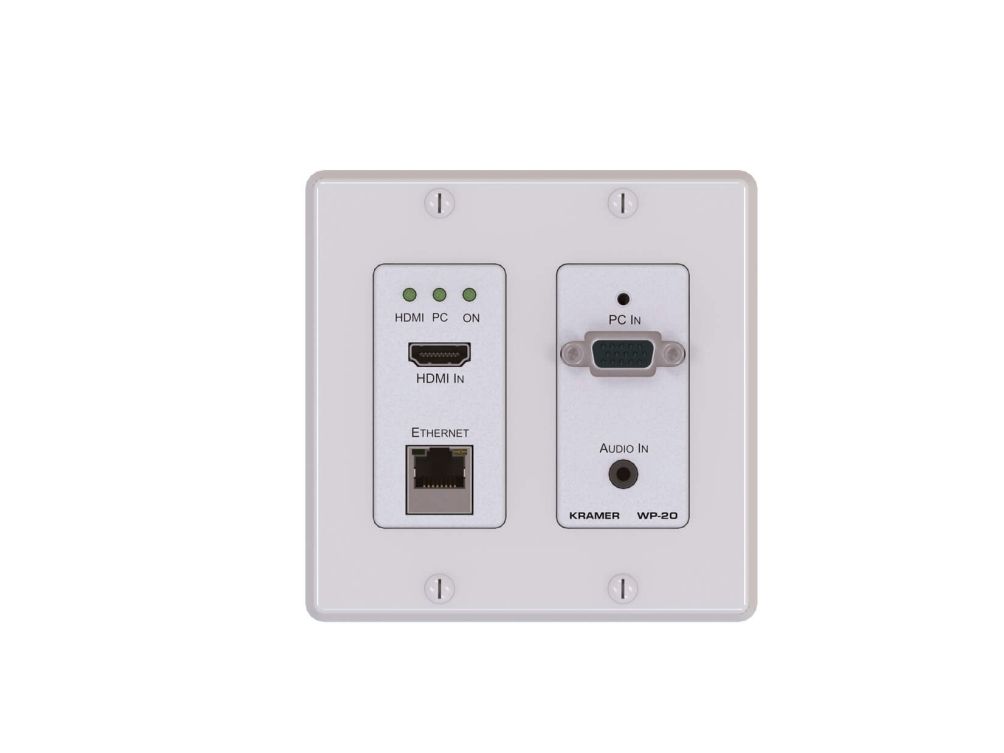

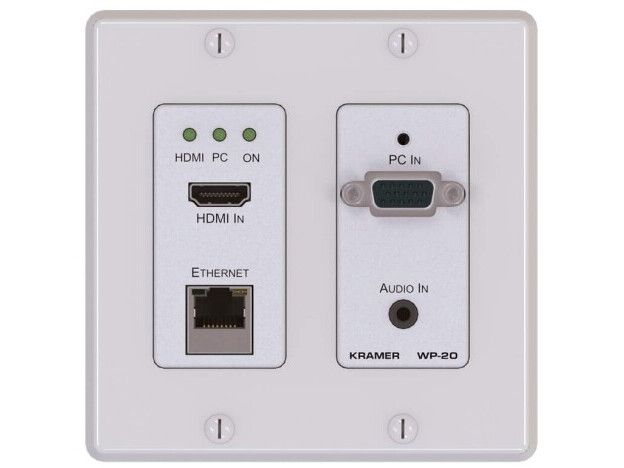

WP-20 is a 4K UHD, HDBaseT active wall plate with step-in auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to 4K@60Hz (4:2:0). The device has EDID management, easy control options and audio embedding. The unit is a fully-featured step-in auto-switcher with the convenience and simplicity of a wall plate. Designed for deployment in any size room, the WP-20 is easy to install with browser-based configuration and single PoE cable for Ethernet connectivity and powering.
Product colour
Black
Material
Aluminium

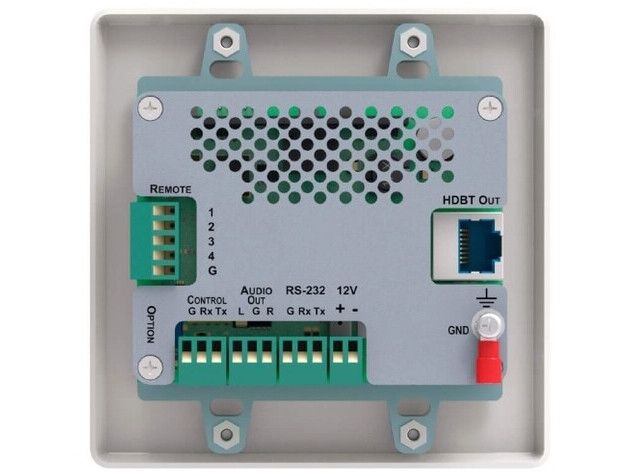

Connector(s)
3.5 mm, RS-232
Current
0.85 A
Voltage
12 V
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 70 °C
Quantity
1
Compliance certificates
RoHS
Certification
WEEE, CE, ISTA 1A
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
Width
151 mm
Height
80 mm
Depth
40 mm
Weight
300 g
Width (imperial)
15.1 cm (5.94")
Height (imperial)
8 cm (3.15")
Depth (imperial)
3.99 cm (1.57")
Package width
256 mm
Package depth
118 mm
Package height
114 mm
Package weight
900 g
