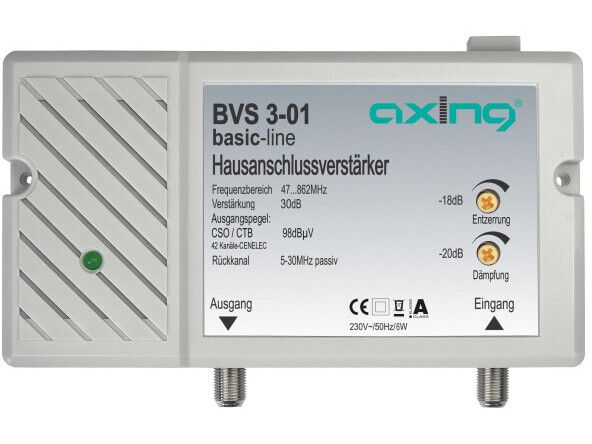

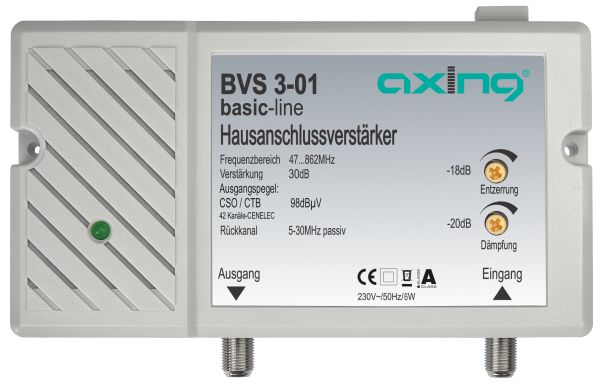

Axing BVS 3-01 47–862 MHz TV signal amplifier (BVS00301)
Frequency range (forward path)
47 - 862 MHz
Frequency range (return path)
5 - 30 MHz
Gain (forward path)
30 dB
Noise figure
14 dB
Product colour
Grey
International Protection (IP) code
IP20
Frequency range
47 - 862 MHz
Certification
CEEN 50083-2, class A
Connector(s)
F
Power source type
AC
Power consumption (typical)
6 W
Input voltage
230 V
Input frequency
50 Hz
Operating temperature (T-T)
20 - 50 °C
Width
160 mm
Depth
45 mm
Height
100 mm
Quantity
1
The item is known under the following item numbers in our system
EAN:
7611682031034
SKU:
BVS00301
Why do I find that the same product is available on different item numbers?
Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries.
We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
