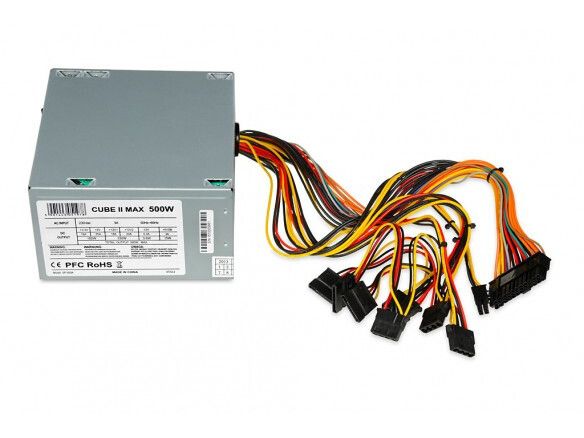

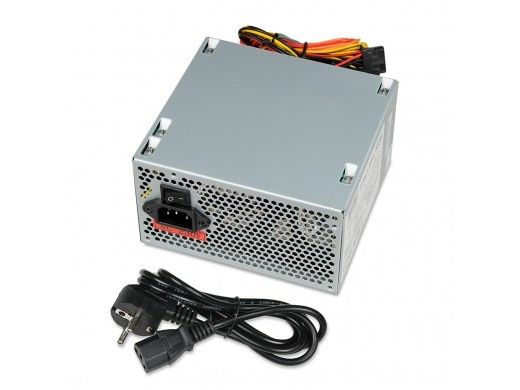

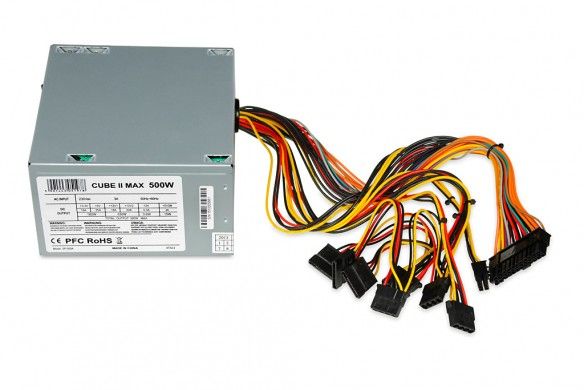

Power supply ATX 2.2 500W. A large number of security features, including: UVP (under-voltage) / OVP (overvoltage) / SCP (short circuit) / OPP (overload) / OCP (overcurrent) / OTP (thermal) and AFC (automatic control of the fan speed). It has detachable power connector (20 + 4) for connecting to the motherboard power 20-pin and 24-pin connector. It has a four-conductor plug EPS.
Produktbeskrivelse
iBOX CUBE II - strømforsyning - 500 watt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.2
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
500 watt
Output Current

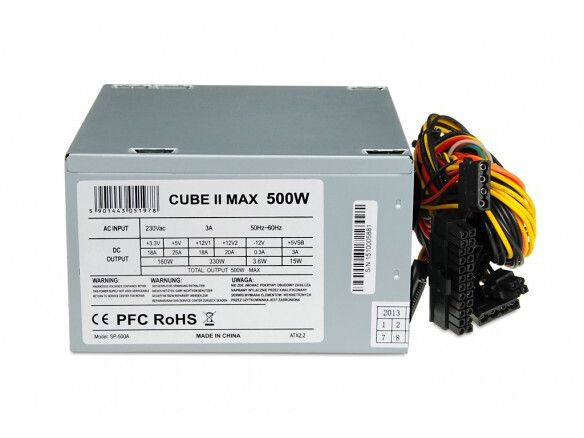

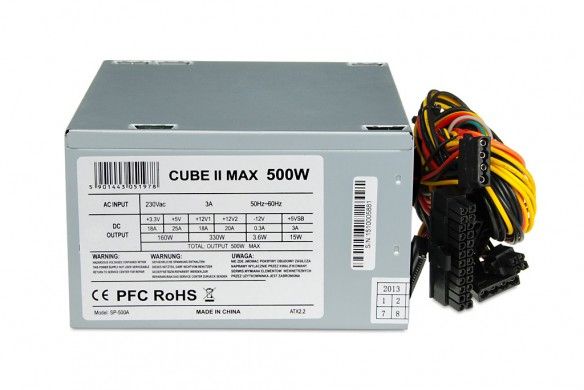

+3.3V - 18 A +5V - 25 A +12V1 - 18 A +12V2 - 20 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 3 x 15 pin Serial ATA strøm 4 x strøm 4-pin stikforbindelse 1 x EPS strøm
Kølesystem

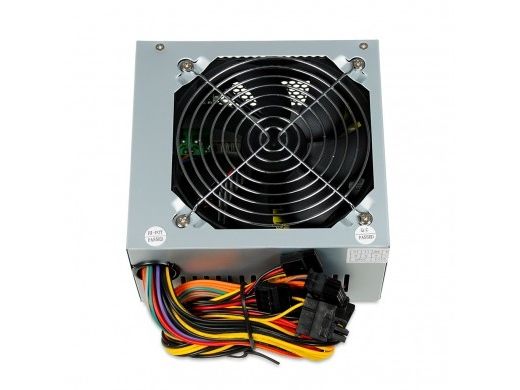

120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.5 cm
Generelt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.2
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 3 x 15 pin Serial ATA strøm 4 x strøm 4-pin stikforbindelse 1 x EPS strøm
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
500 watt
Output Current
+3.3V - 18 A +5V - 25 A +12V1 - 18 A +12V2 - 20 A -12V - 0.3 A +5VSB - 3 A
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Kontakt for tænd/sluk, beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, dobbelt 12V skinner, kortslutnings beskyttelse, temperatur kontrolleret blæser, ikke-modulær
Overensstemmelsesstandarder
RoHS
Miljømæssige parametre
Lydudbredelse
20 dB
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.5 cm
