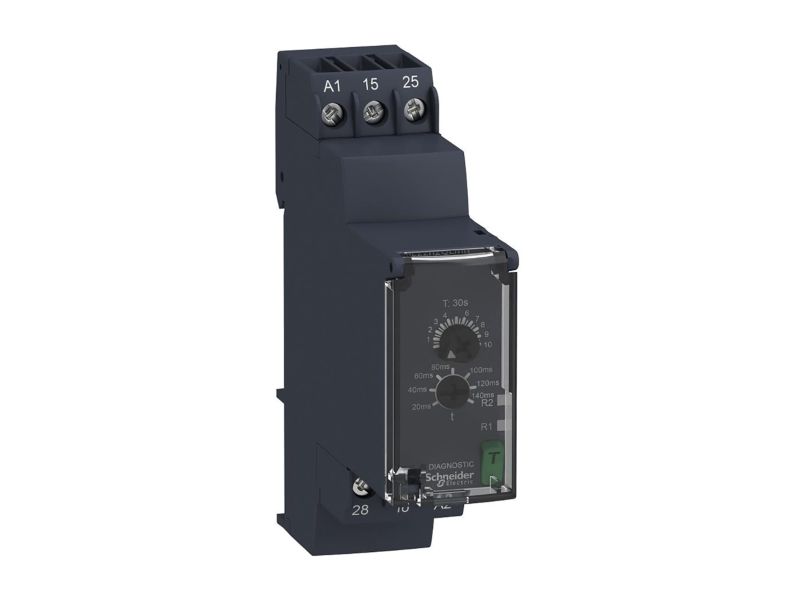

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 - 240V ac/dc, 1-Contact, 0.05 - 1s,
Item no.: [1526187] | Manufacturer: SCHNEIDER ELECTRIC | Model no.: RE22R1AMR | EAN: 3606480792366 | UNSPSC.: 39122329 | EL-nr.: 7523006733
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
47,80
Incl. VAT 59,75
Total incl. delivery
74,75
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

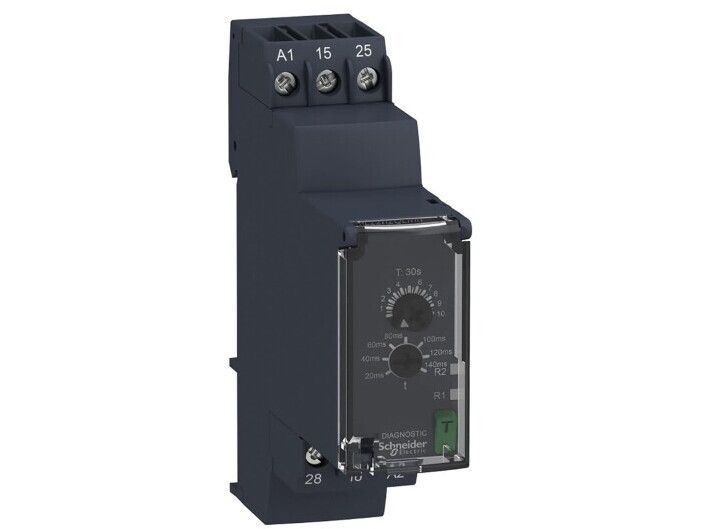

Schneider Electric Single-function Timer Relay
The Schneider Electric single-function timer relay is solid-state compact equipment with high precision and a comprehensive range of timing functions to suit a wide variety of applications. It performs the function of providing ON delay in the range between 0.05 seconds and 300hours. Because of its highly versatile voltage range, this can be installed into new and existing applications without much hassle. For selecting the time delay range, there are two selectable rotary switches on the front of the unit. Its affordability, optimum space management and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
10 timing ranges between 0.05seconds to 300hours like 0.05seconds to 1seconds, 0.3seconds to 3seconds, 1seconds to 10seconds, 3seconds to 30seconds, 10seconds to 100 seconds, 30 seconds to 300seconds, 30minutes to 300minutes, 3minutes to 30minutes, 3hours to 30 hours, 30hours to 300hours
The supply voltage rating ranging from 24VAC to 240VAC and 24VAC to 240VAC
1 C/O SPDT contact relay of 8A
State indication by LED
Repeat accuracy of +/-0.5%
Self-extinguishing housing
22.5mm profile width
Screw terminals connection
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
CCC
CE certified
CSA certified
GL certified
UL certified
RCM certified
EAC certified
IP20 rated terminals
IP50 rated display
IP40 rated housing
IEC 61812-1
IEC 60947-1
IEC 60664-1
IEC 60529
IEC 60068-2-6
IEC 60068-2-27
IEC 61000-4-11
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
