The Cisco 40GBASE-LR4 QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The QSFP-40G-LR4-S module supports 40GBase Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device.
Produktbeskrivelse

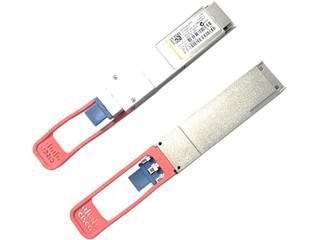

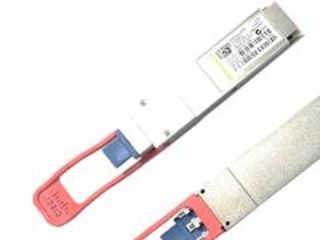

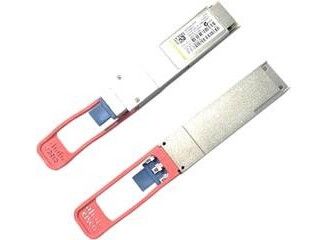

Cisco S-Class - QSFP+ transceiver modul - 40GbE
Enhedstype
QSFP+ transceiver modul - LC enkelttilstand
Model
Indstiksmodul
Kabeltype
40GBase-LR4
Dataoverførselshastighed
40 Gbps
Optisk bølgelængde
1271 nm / 1291 nm / 1311 nm / 1331 nm
Dataforbindelsesprotokol
40GbE
Maks. overføringsafstand
10 km
Dimensioner (B x D x H)
1.84 cm x 7.24 cm x 1.35 cm
Vægt
100 g
Producentgaranti
1 års garanti
Generelt
Enhedstype
QSFP+ transceiver modul
Model
Indstiksmodul
Farve
Blå
Netværk
Forbindelsesteknologi
Kablet
Kabeltype
40GBase-LR4
Dataforbindelsesprotokol
40GbE
Dataoverførselshastighed
40 Gbps
Optisk bølgelængde
1271 nm / 1291 nm / 1311 nm / 1331 nm
Maks. overføringsafstand
10 km
Egenskaber
Hotswap-moduludskiftning
Overensstemmelsesstandarder
IEEE 802.3ba, ITU-T G.652
Ekspansion / Konnektivitet
Interface
1 x Ethernet 40GBase-LR4 - LC enkelttilstand x 2
Diverse
Overensstemmelsesstandarder
FCC CFR21 Part 1040, GR-326-CORE, GR-20-CORE, GR-1435-CORE, MSA SFF-8431, MSA SFF-8436, IEC 60825-1 Class 1
Effekt
Strømforbrug ved drift
3.5 watt
Mål og vægt
Bredde
1.84 cm
Dybde
7.24 cm
Højde
1.35 cm
Vægt
100 g
Producentgaranti
Service & Support
Begrænset garanti - 1 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
70 °C
