Switch-mode strømforsyning i CP-D serien, 100W, primær 1 faset 100-240VAC, sekundær justerbar 24VDC/4,2A, for UG ramme, B=89,9mm

Item no.: [1571342] | Manufacturer: ABB | Model no.: 1SVR427045R0400 | EAN: 4016779661195
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 125,50
Incl. VAT 156,88
Total incl. delivery 171,88
Read further specifications and description

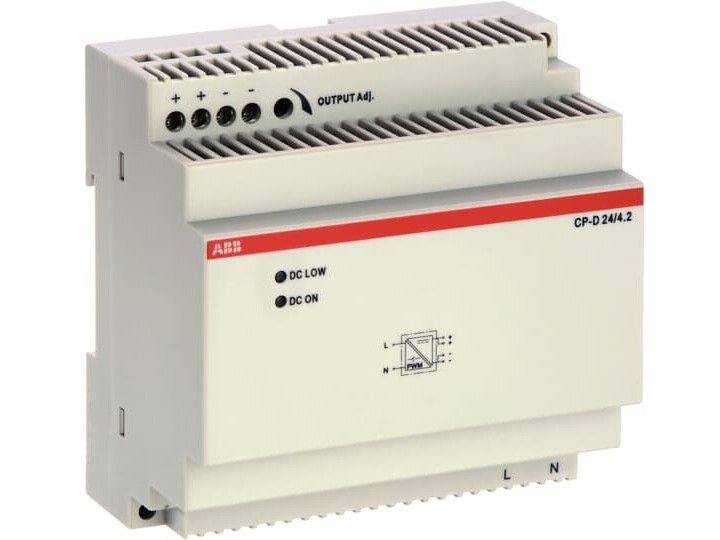

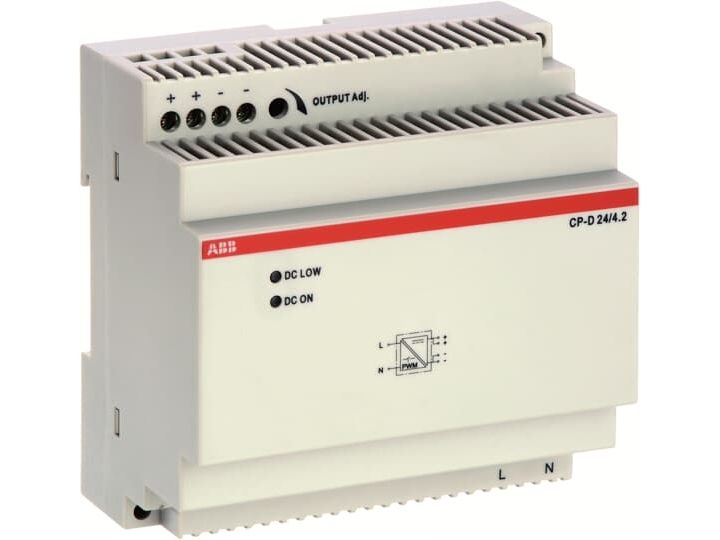

The CP-D 24/4.2 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 100 W, rated output current is 4.2 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic.
