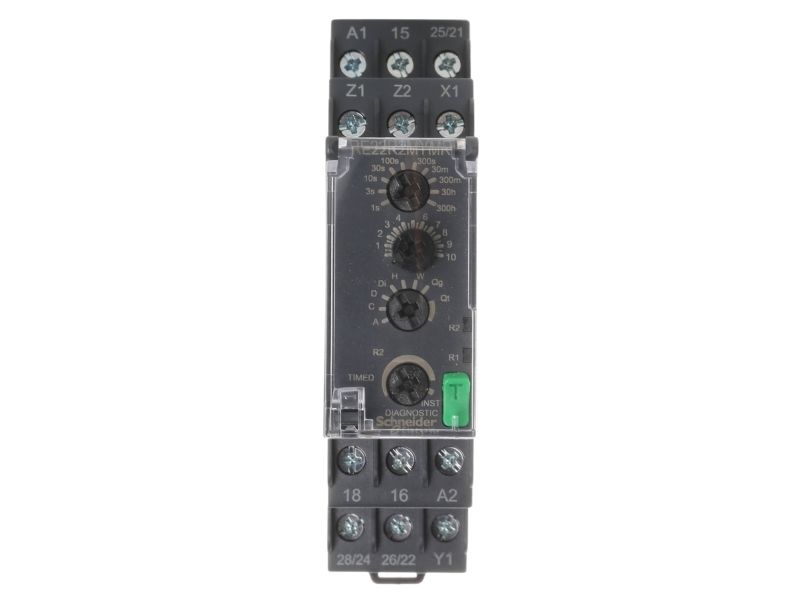

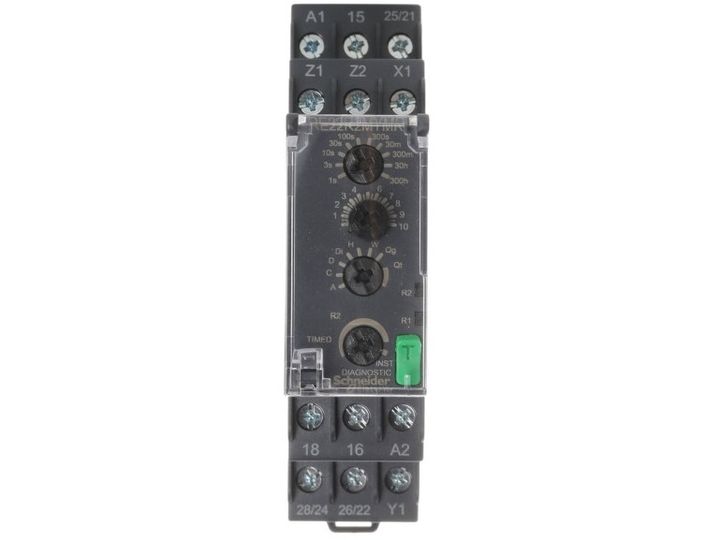

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 - 240V ac/dc, 2-Contact, 0.05 - 1s,, Daily timer, Black, Analog, Rotary, Buttons, Polycarbonate (PC), IP20, IP50
Item no.: [1694155] | Manufacturer: SCHNEIDER ELECTRIC | Model no.: RE22R2MYMR | EAN: 3606480792533 | UNSPSC.: 39122329 | EL-nr.: 7523006908
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
89,39
Incl. VAT 111,74
Total incl. delivery
126,74
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Zelio Star Delta Timers- RE22 Series
22.5 mm profile width
Screw terminals connection
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Available option of supplying a load in parallel
Operating temperature of -20 - 60 ?°C
Self extinguishing housing material
Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
Schneider Electric Timer Relay, Screw Terminals, 8A Output Current - RE22 R2 Series - RE22R2MYMR
Control functions in your industrial equipment with this timer relay from Schneider Electric. It has a broad time delay range between 0.3 seconds and 300 hours, making it a versatile choice. Thanks to its broad operating temperature range between -20?°C and +60?°C, it's suitable for use in demanding environments. An impulse withstand voltage of 5kV means the device is protected against sudden power spikes, so you can be sure of enhanced electrical safety. Its wide supply voltage range of 24 to 240V AC/DC makes it compatible with a broad range of low-power systems.
Features & Benefits
- Front panel has an IP50 rating, so it's finger-safe and protected against limited amounts of dust
- LED indicators for easy status monitoring and prompt troubleshooting
- Screw terminals make wiring easy and let you achieve a secure connection, even in vibrating conditions
- Self-extinguishing to boost safety in the event of a fire
- Designed for DIN rail mounting for ease of installation
Applications
- Robotics and automation systems
- Alarm units
- Air conditioners
How long will this timer relay last?
This timer relay has a robust mechanical lifespan of 10 million cycles, so you can be sure of long-lasting performance.
22.5 mm profile width
Screw terminals connection
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Available option of supplying a load in parallel
Operating temperature of -20 - 60 ?°C
Self extinguishing housing material
Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
Schneider Electric Timer Relay, Screw Terminals, 8A Output Current - RE22 R2 Series - RE22R2MYMR
Control functions in your industrial equipment with this timer relay from Schneider Electric. It has a broad time delay range between 0.3 seconds and 300 hours, making it a versatile choice. Thanks to its broad operating temperature range between -20?°C and +60?°C, it's suitable for use in demanding environments. An impulse withstand voltage of 5kV means the device is protected against sudden power spikes, so you can be sure of enhanced electrical safety. Its wide supply voltage range of 24 to 240V AC/DC makes it compatible with a broad range of low-power systems.
Features & Benefits
- Front panel has an IP50 rating, so it's finger-safe and protected against limited amounts of dust
- LED indicators for easy status monitoring and prompt troubleshooting
- Screw terminals make wiring easy and let you achieve a secure connection, even in vibrating conditions
- Self-extinguishing to boost safety in the event of a fire
- Designed for DIN rail mounting for ease of installation
Applications
- Robotics and automation systems
- Alarm units
- Air conditioners
How long will this timer relay last?
This timer relay has a robust mechanical lifespan of 10 million cycles, so you can be sure of long-lasting performance.
