Siemens SCALANCE XB004-1LD, Unmanaged, Fast Ethernet (10/100)

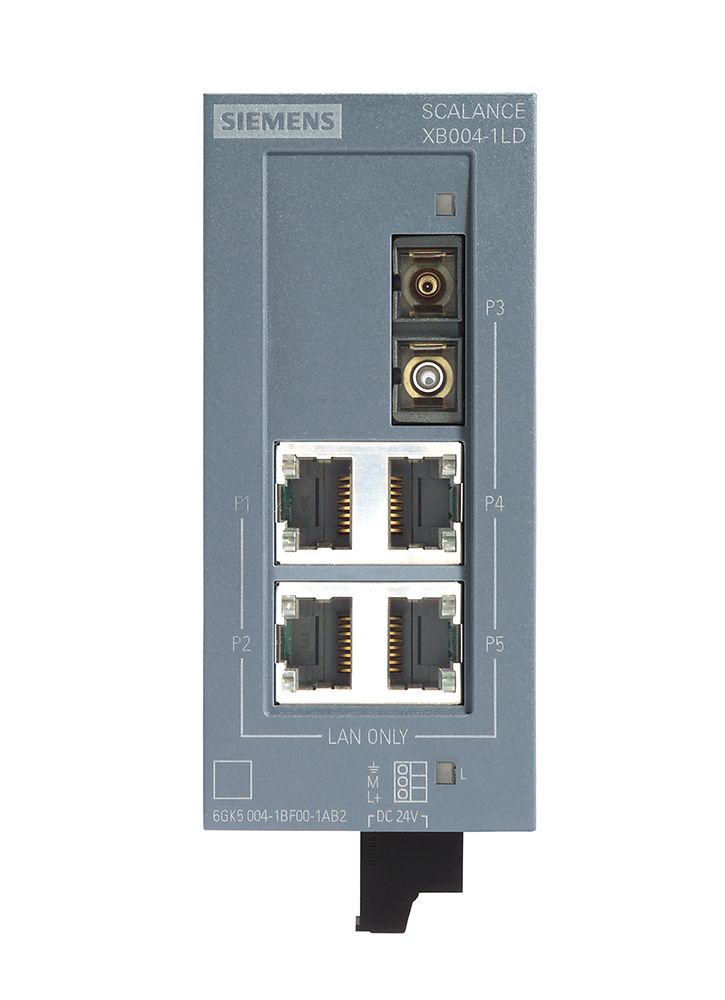

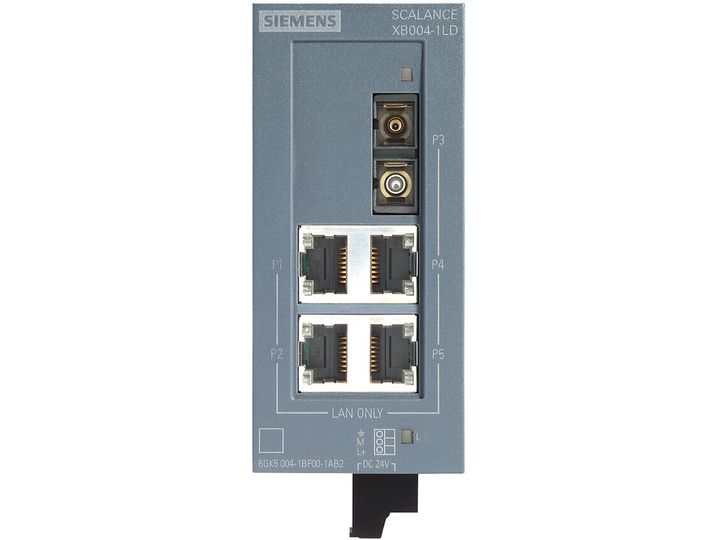

SCALANCE XB004-1LD unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 1 x 100 Mbit/s single-mode glass fiber-optic cable port with SC socket; manual available as a download . SCALANCE XB004-1LD unmanaged compact switch, 4x 10/100 Mbps RJ45, 1x 100 Mbps single-mode SC for small IE networks. Use in control cabinet/control box for cost-effective connection of very remote stations (up to 26 km). Functional, space-saving and suitable for industrial use: The SCALANCE X-B004-1LD switches always offer the right Compact Ethernet switch to ensure simple machine networking. Thanks to variants with 5 to 8 ports, data transfers in the Gigabit range can also be performed without any problems. The Compact Switch Modules (CSM) enable cost-effective connection of the SIMATIC controllers and thus integration of the machines into existing plants. With our rugged and user-friendly unmanaged switches and CSMs, you can build cost-efficient Industrial Ethernet networks.
