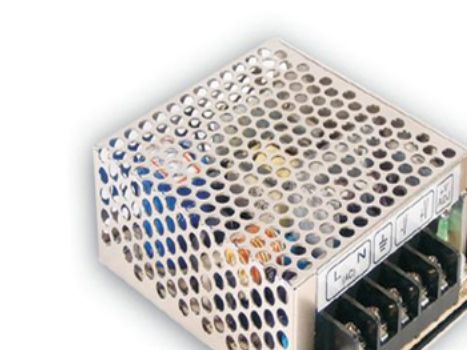

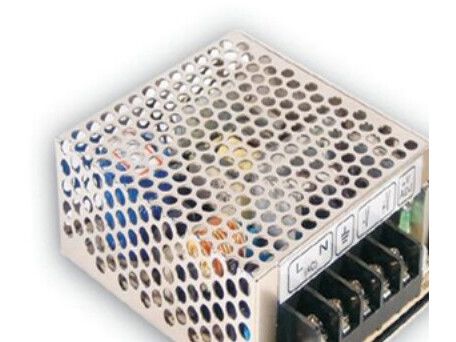

MEAN WELL RS-35, 36 W, 115 - 230 V, 47 - 63 Hz, +12V, 3 A, 15 ms
Item no.: [1733390] | Manufacturer: Mean Well | Model no.: RS-35-12 | EAN: 4021087014601
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
29,03
Incl. VAT 36,29
Total incl. delivery
51,29
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
- Universal AC input / Full range - Protections: Short circuit / Over load / Over voltage - Cooling by free air convection - LED indicator for power on - 100% full load burn-in test - All using 105C long life electrolytic capacitors - Withstand 300VAC surge input for 5 second - High operating temperature up to 70C - Withstand 5G vibration test - High efficiency, long life and high reliability - 3 years warranty - No load power consumption<0.5W
Total power
36 W
AC input voltage
115 - 230 V
AC input frequency
47 - 63 Hz
Maximum input current (@110V)
+12V
Max output current (+12V)
3 A
Hold time
15 ms
Efficiency
84.5%
Power protection features
Over voltage, Overload, Short circuit
Noise level
0 dB
Mean time between failures (MTBF)
249000 h
Product colour
Metallic
LED indicators
Yes
Operating temperature (T-T)
25 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
10 - 95%
Width
82 mm
Depth
99 mm
Height
36 mm
Weight
300 g
Voltage tolerance
1%
Rise time
50 ms
