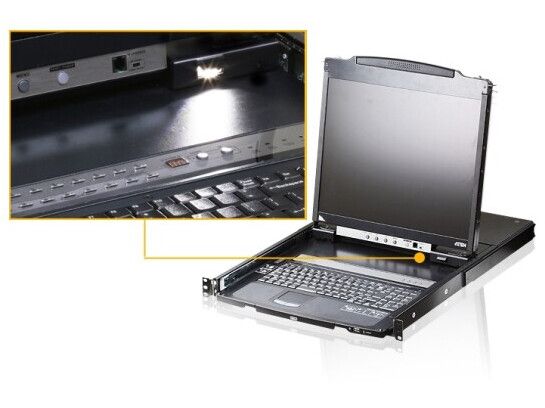

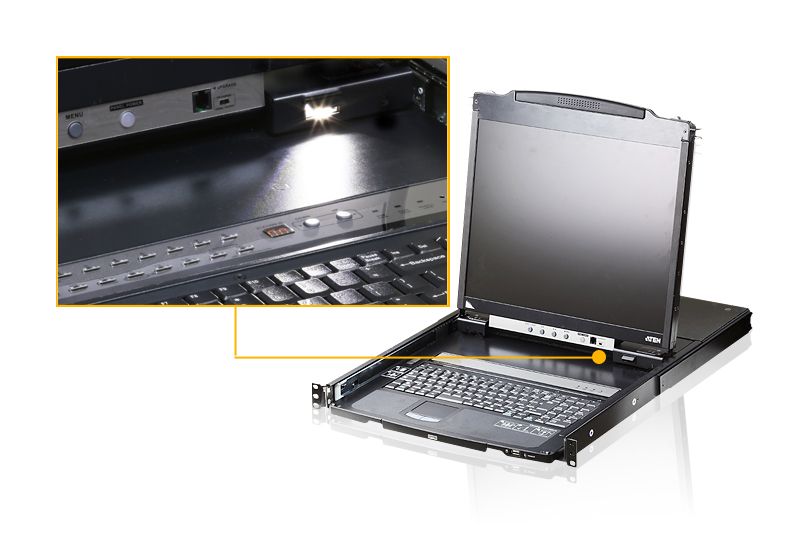

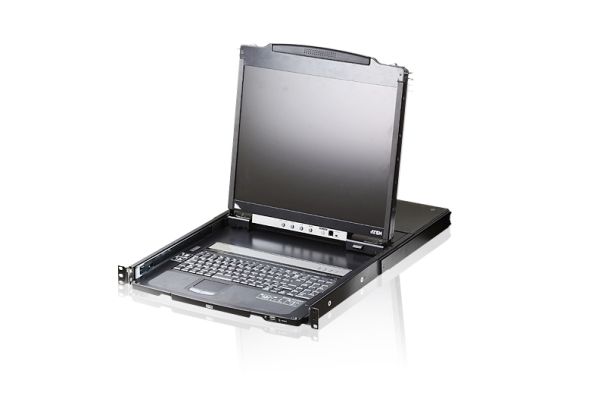

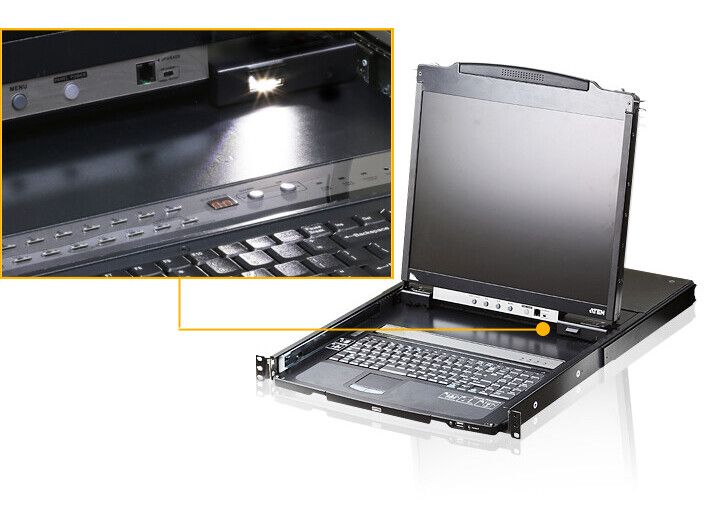

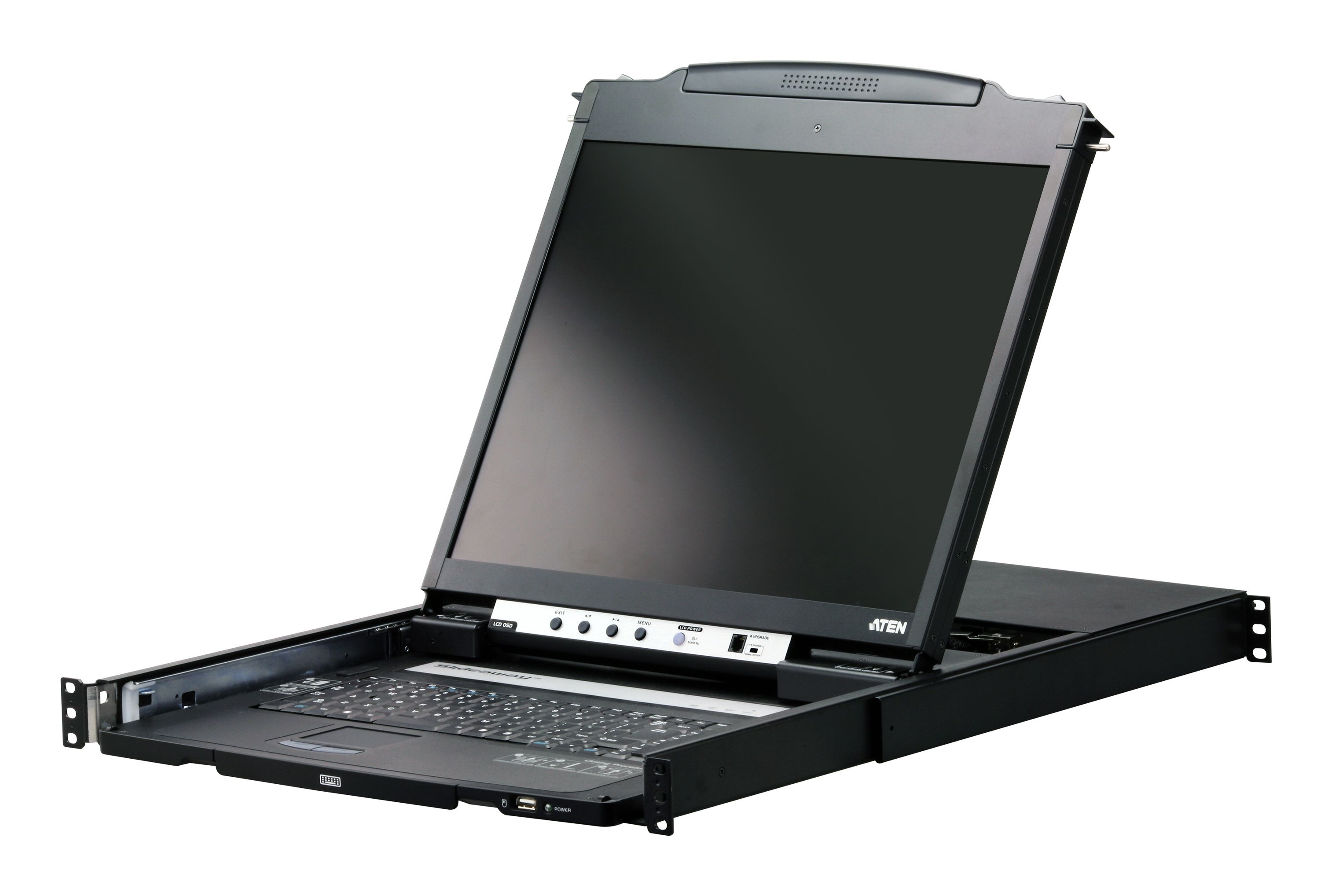

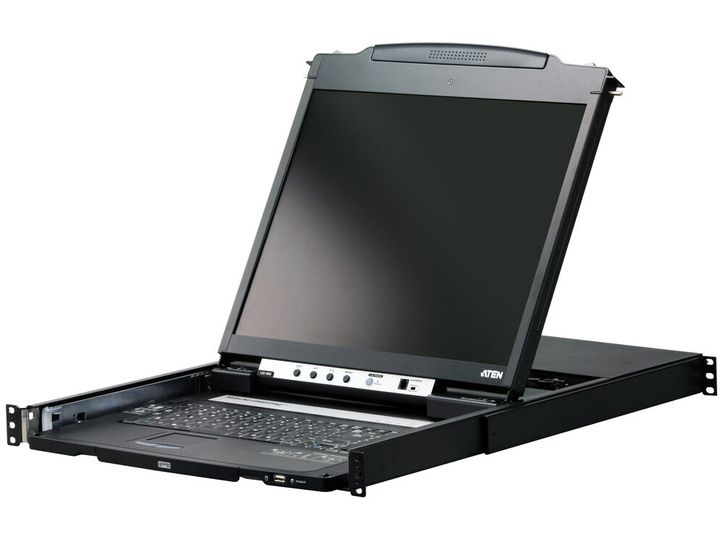

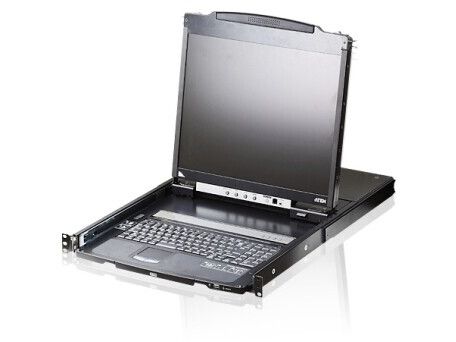

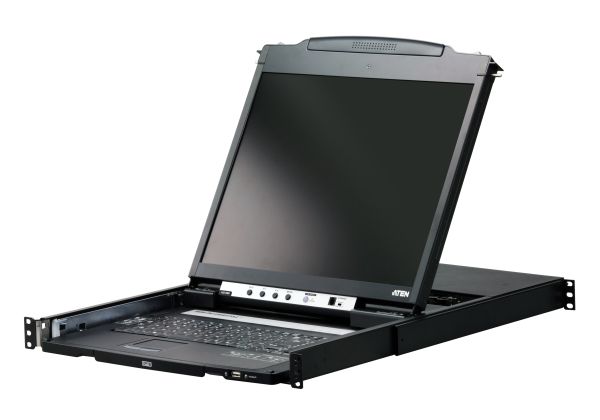

The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.

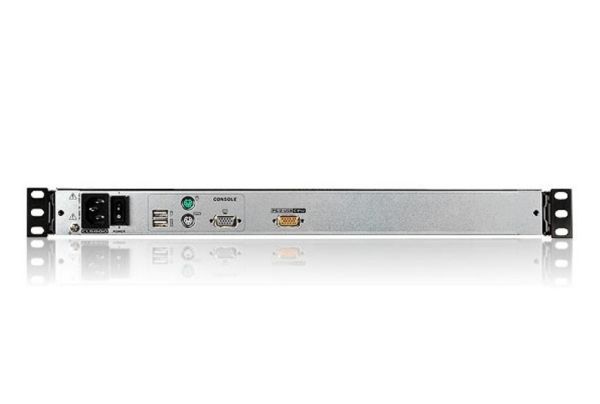

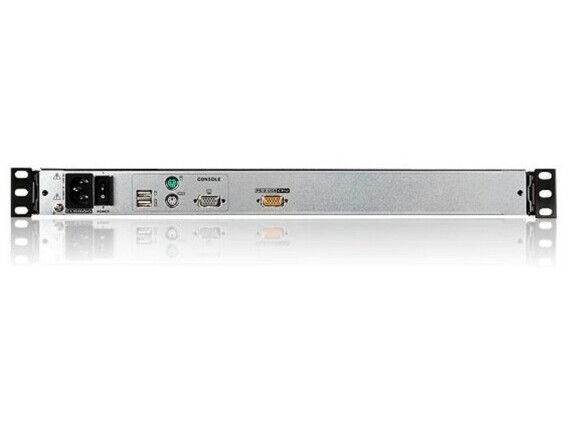

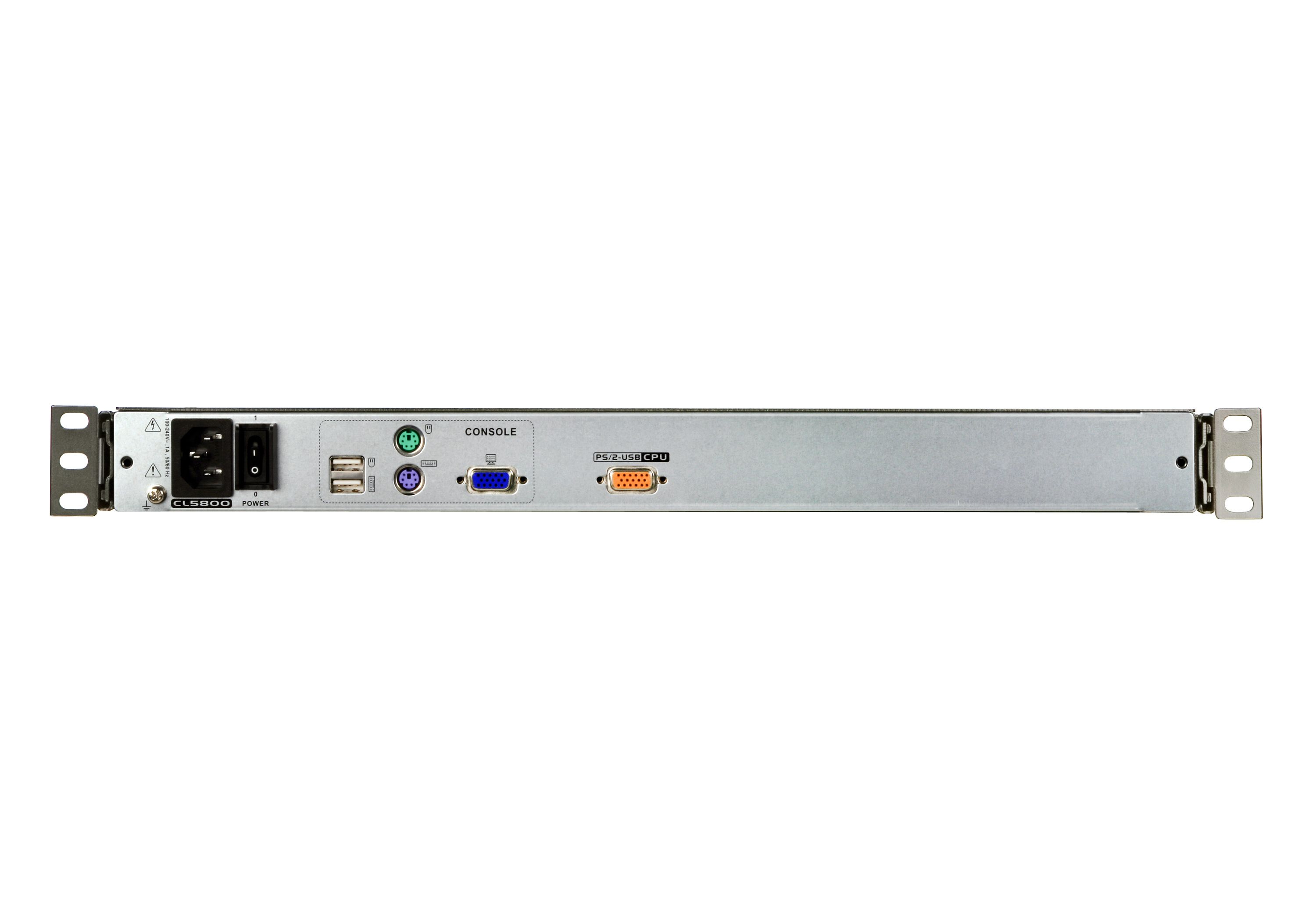

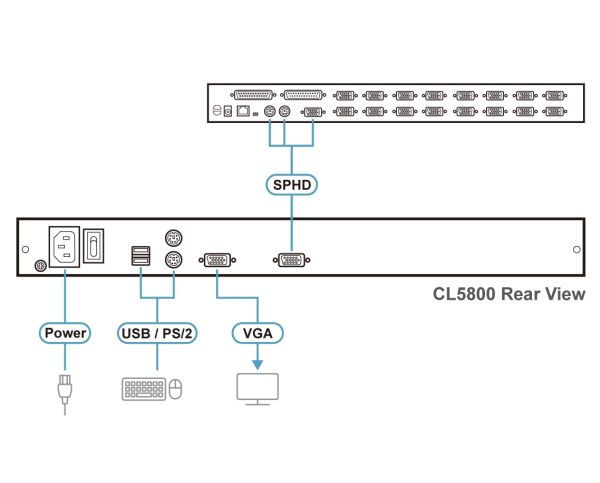

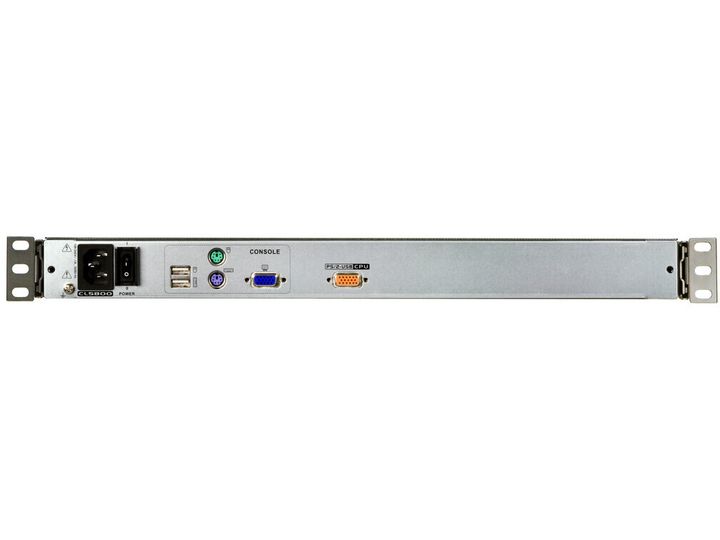

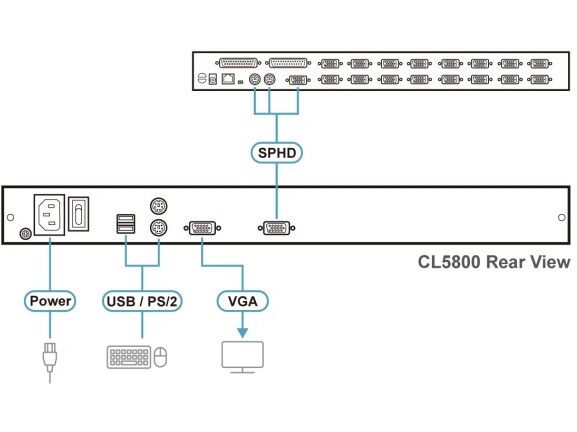

The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Display diagonal
48.3 cm (19")
Display resolution
1280 x 1024 pixels
Display
LCD
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
On Screen Display (OSD)
Yes
Pixel pitch
0.294 x 0.294 mm
Display type
TFT
Response time
5 ms
Display number of colours
16.78 million colours
Supported resolutions
1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Material
Metal
Product colour
Black
Hot-Plug support
Yes
Operating relative humidity (H-H)
0 - 80%
Built-in KVM switch
Yes
KVM switch ports quantity
1
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Console port
SPHD-18
Number of computers controlled
1
On/off switch
Yes
LED indicators
Yes
Push button
Yes
Compliance certificates
RoHS
Rack capacity
1U
VGA (D-Sub) ports quantity
1
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
USB 2.0 Type-A ports quantity
3
Built-in touchpad
Yes
Keyboard language
Nordic
Keyboard layout
QWERTY
Hot keys
Yes
Power consumption (typical)
24 W
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Input current
1 A
AC (power) in
Yes
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
20 - 60 °C
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Width
680.4 mm
Height
44 mm
Depth
480 mm
Weight
14.3 kg
Cables included
AC, KVM
Quick installation guide
Yes
Manual
Yes
Rack mount kit
Yes
I/O ports
1x RJ-11
