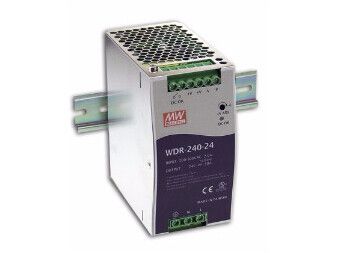

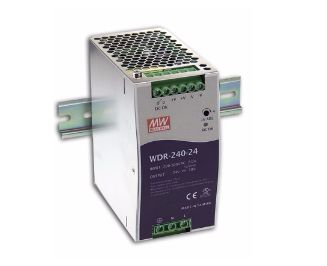

MEAN WELL WDR-240-24, 240 W, 180 - 550 V, 47 - 63 Hz, 18 ms, 91%, Over voltage, Overheating, Overload, Short circuit
Item no.: [1738724] | Manufacturer: Mean Well | Model no.: WDR-240-24 | EAN: 4711287422596
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
97,97
Incl. VAT 122,46
Total incl. delivery
137,46
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
- Universal AC input / Full range - Active Power Factor Correction - Installable on DIN rail TS-35/7.5 or 15 - LED indicator for power on - 100% full load burn-in test - Fixed switching frequency at 100KHz
Total power
240 W
AC input voltage
180 - 550 V
AC input frequency
47 - 63 Hz
Hold time
18 ms
Efficiency
91%
Power protection features
Over voltage, Overheating, Overload, Short circuit
Mean time between failures (MTBF)
141100 h
Product colour
Metallic
Cooling type
Passive
Operating temperature (T-T)
30 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
20 - 95%
Storage relative humidity (H-H)
10 - 95%
Width
63 mm
Depth
113.5 mm
Height
125.2 mm
Weight
1.06 kg
Rise time
150 ms
