Axis 5801-692, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Item no.: [1750592] | Manufacturer: Axis Communications | Model no.: 5801-692 | EAN: 7331021055872

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 861,28

Incl. VAT 1.076,60

Total incl. delivery 1.091,60

Notify me when the item is in stock again

Read further specifications and description

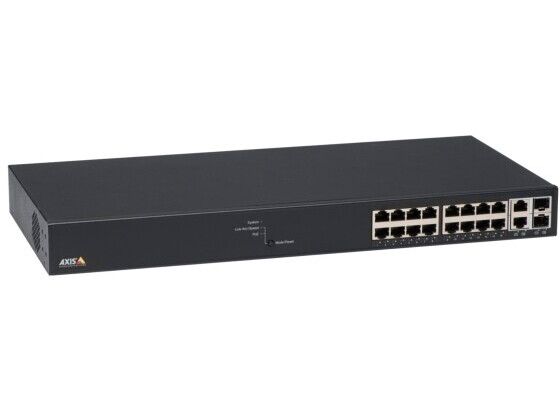

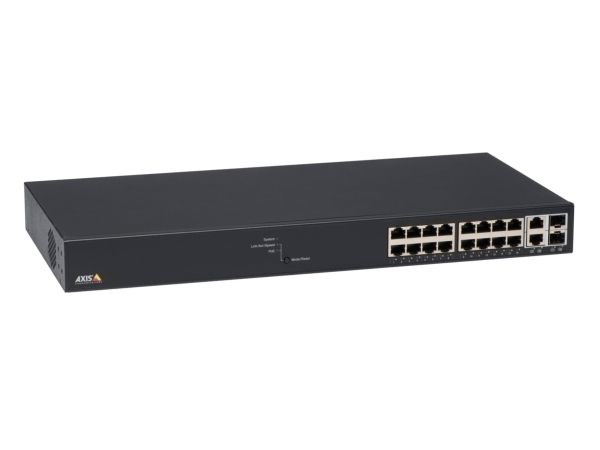

AXIS T8516 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with an unique web graphic user interface with topology for easy overview and management of all devices in the system.

Produktbeskrivelse	Axis T8516 - switch - Administreret - monterbar på stativ
Enhedstype	Switch - Administreret
Pakningstype	Monterbar på stativ
Undertype	Gigabit Ethernet
Porte	16 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP
Power Over Ethernet (PoE)	PoE+
PoE-budget	240 W
Præstation	Kapacitet: 26,8 Mpps Omkoblingskapacitet: 36 Gbps
MAC adresse table størrelse	8K indtastningshukommelse
Jumborammesupport	9216 byte
Routingprotokol	IGMP
Protokol til fjernadministration	SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH
Egenskaber	Understøttet af ARP, VLAN-understøttet, IPv6 understøttet, IP-adresse filtrering, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DHCP server, IPv4 support, DNS server, LLDP support, NTP server, administrator's password, BPDU
Overensstemmelsesstandarder	IEEE 802.3af, IEEE 802.1x, IEEE 802.3at
Effekt	AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)	44.2 cm x 21.1 cm x 4.4 cm
Vægt	3 kg
Farve	Sort
Lokalisering	Europa
Producentgaranti	3 års garanti
Designet for	AXIS A1610-B, C1410, D3110, M3067-P, M3068-P, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, W400; Camera Station S1216 Recording Server, S1232, S1296

Generelt
Enhedstype	Switch - Administreret
Pakningstype	Desktop, monterbar på stativ
Undertype	Gigabit Ethernet
Porte	16 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP
Power Over Ethernet (PoE)	PoE+
PoE-budget	240 W
Præstation	Kapacitet: 26,8 Mpps Omkoblingskapacitet: 36 Gbps
MAC adresse table størrelse	8K indtastningshukommelse
Jumborammesupport	9216 byte
Routingprotokol	IGMP
Protokol til fjernadministration	SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH
Egenskaber	Understøttet af ARP, VLAN-understøttet, IPv6 understøttet, IP-adresse filtrering, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DHCP server, IPv4 support, DNS server, LLDP support, NTP server, administrator's password, BPDU
Overensstemmelsesstandarder	IEEE 802.3af, IEEE 802.1x, IEEE 802.3at
Ekspansion / Konnektivitet
Interface	16 x 1000Base-T RJ-45 2 x 1000Base-T RJ-45/SFP
Effekt
Strømenhed	Intern strømforsyning
Strømforsyning	285 watt
Nødvendig spænding	AC 120/230 V (50/60 Hz)
Diverse
Farve	Sort
Udstyr inkluderet	4 gummifødder, 2-ports støvdækker (SFP)
Overensstemmelsesstandarder	SASO, EN55024, JATE, ICES-003 Klasse A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, WEEE, ANATEL, S Mark, REACH, FCC Part 15 B Class A, VCCI Class A, EAC, RCM, EN 55032 Class A
Lokalisering	Europa
Mål og vægt
Bredde	44.2 cm
Dybde	21.1 cm
Højde	4.4 cm
Vægt	3 kg
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	50 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)
Min. lagertemperatur	-10 °C
Maks. Opbevaringstemperatur	70 °C
Lagerfugtighedsgrad	5 - 95 % (ikke-kondenserende)
Oplysninger om kompatibilitet
Designet for	AXIS A1610-B, C1410, D3110, M3067-P, M3068-P, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, W400 AXIS Camera Station S1216 Recording Server, S1232, S1296
