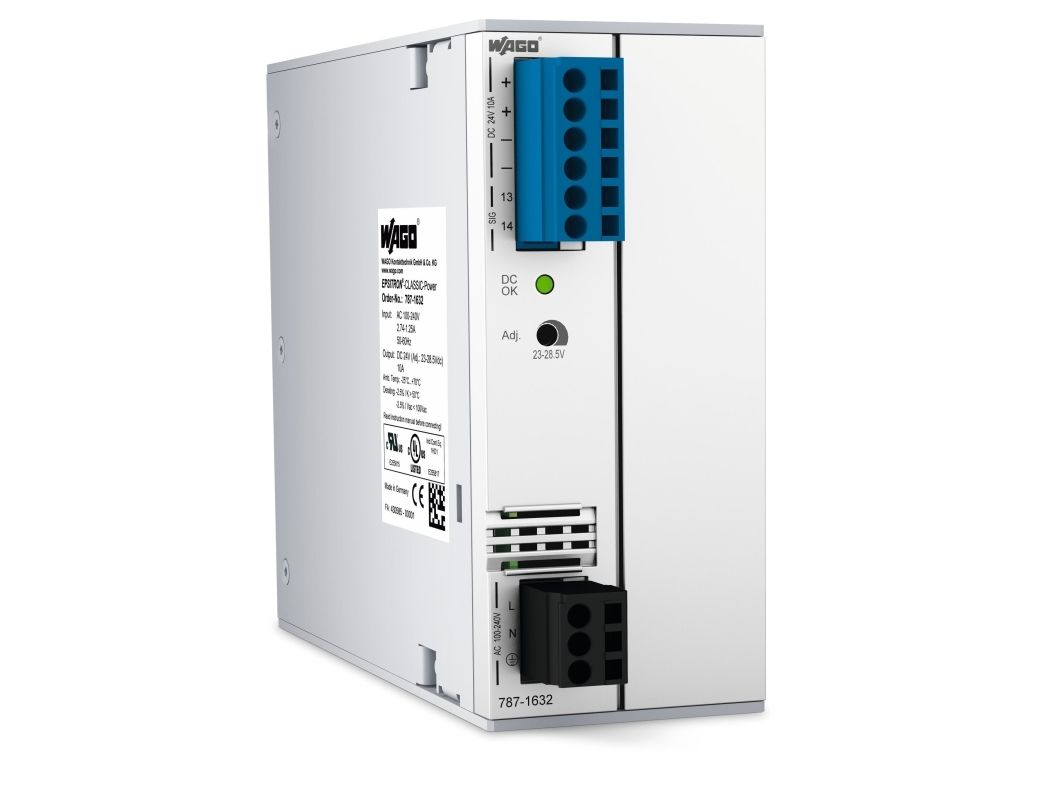

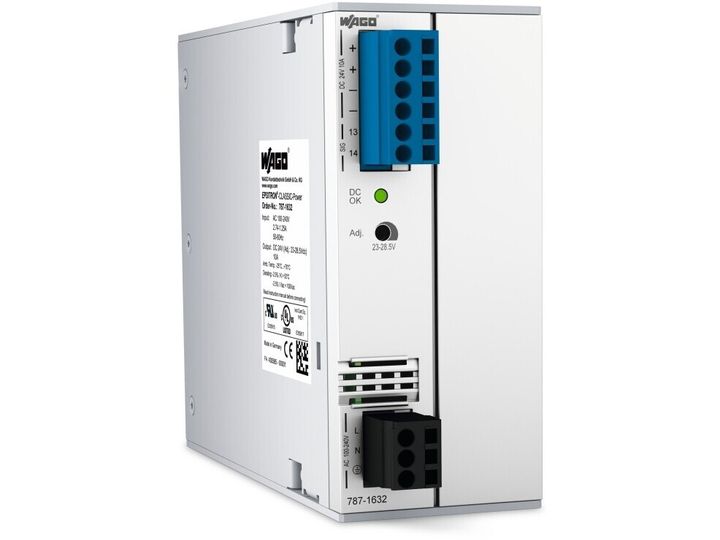

Wago switching power supply primary side 24VDC 10A SMPS 787-1632
Total power
240 W
AC input voltage
85 - 264 V
AC input frequency
44 - 66 Hz
Input current
1.25 - 2.74 A
Power Factor Correction (PFC) type
Active
Hold time
15 ms
Efficiency
91%
Power protection features
Over voltage, Short circuit
AWG wire size (min)
12
AWG wire size (max)
28
Mean time between failures (MTBF)
500000 h
Product colour
Grey
Cooling type
Passive
Operating temperature (T-T)
25 - 70 °C
Storage temperature (T-T)
25 - 85 °C
Operating relative humidity (H-H)
5 - 96%
Certification
EN 60950-1; EN 61204-3; UL 60950-1; UL 508; GL
Width
55 mm
Depth
172 mm
Height
127 mm
Weight
1.14 kg
Country of origin
Germany
