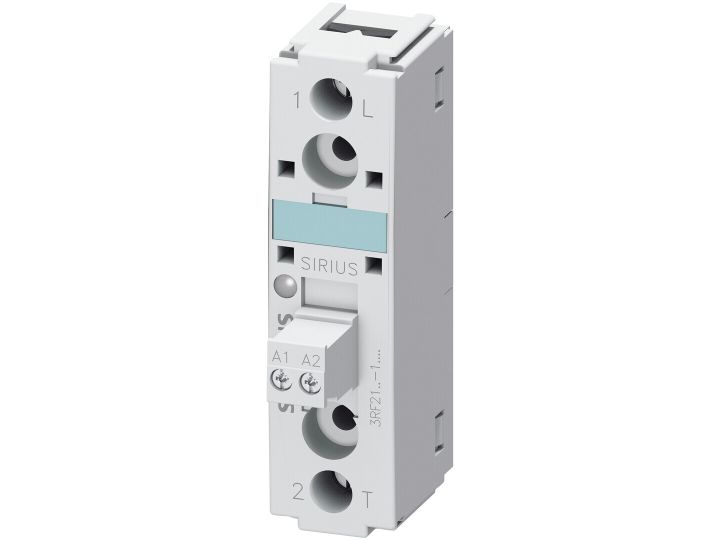

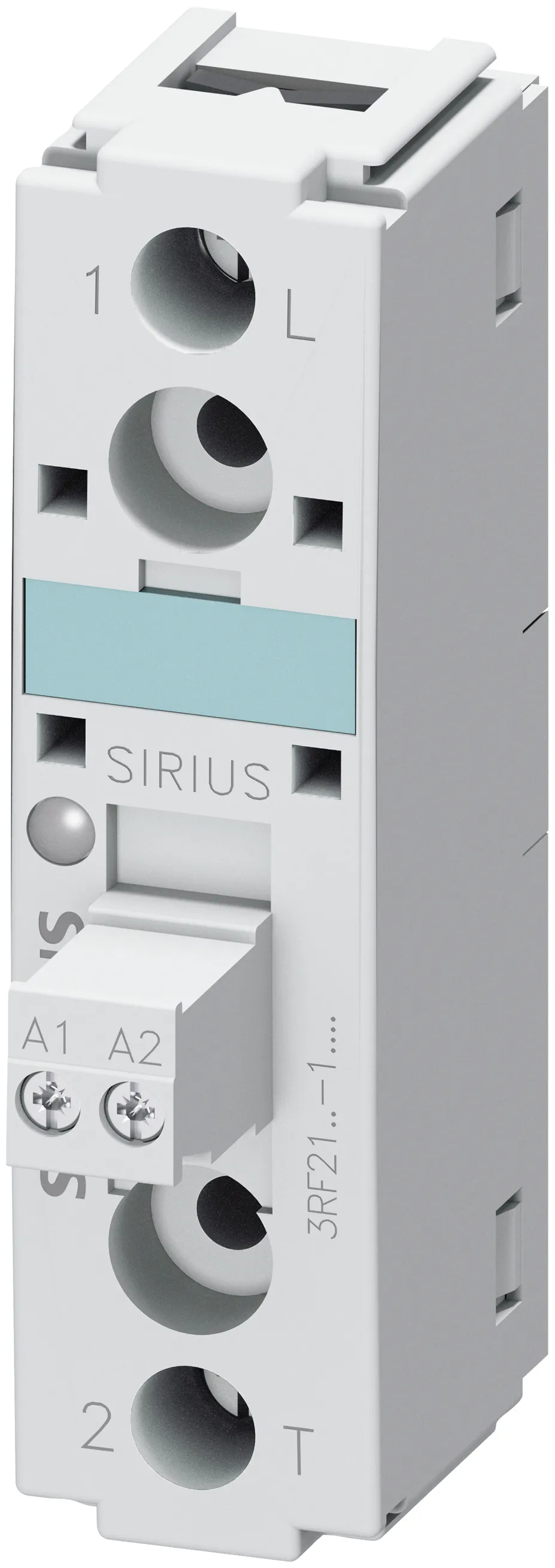

Siemens semiconductor relay 3RF21201AA04 20 A switching voltage (max.) 460 V/AC zero-voltage switching 1 pc
LED indicators
Yes
International Protection (IP) code
IP20

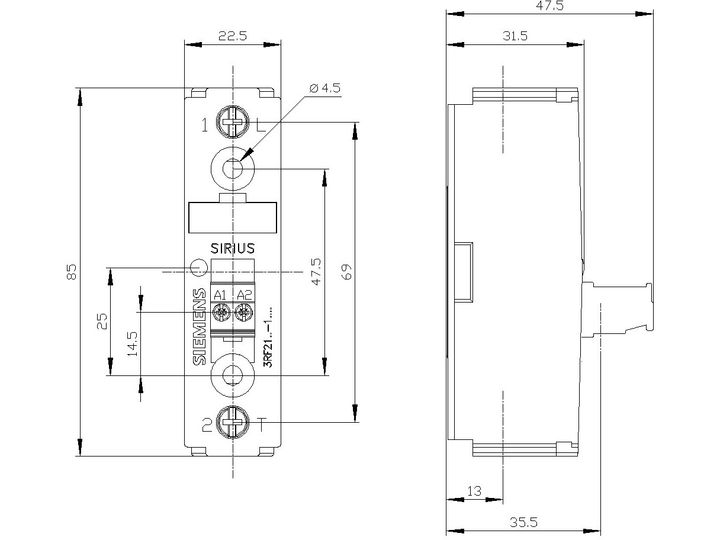

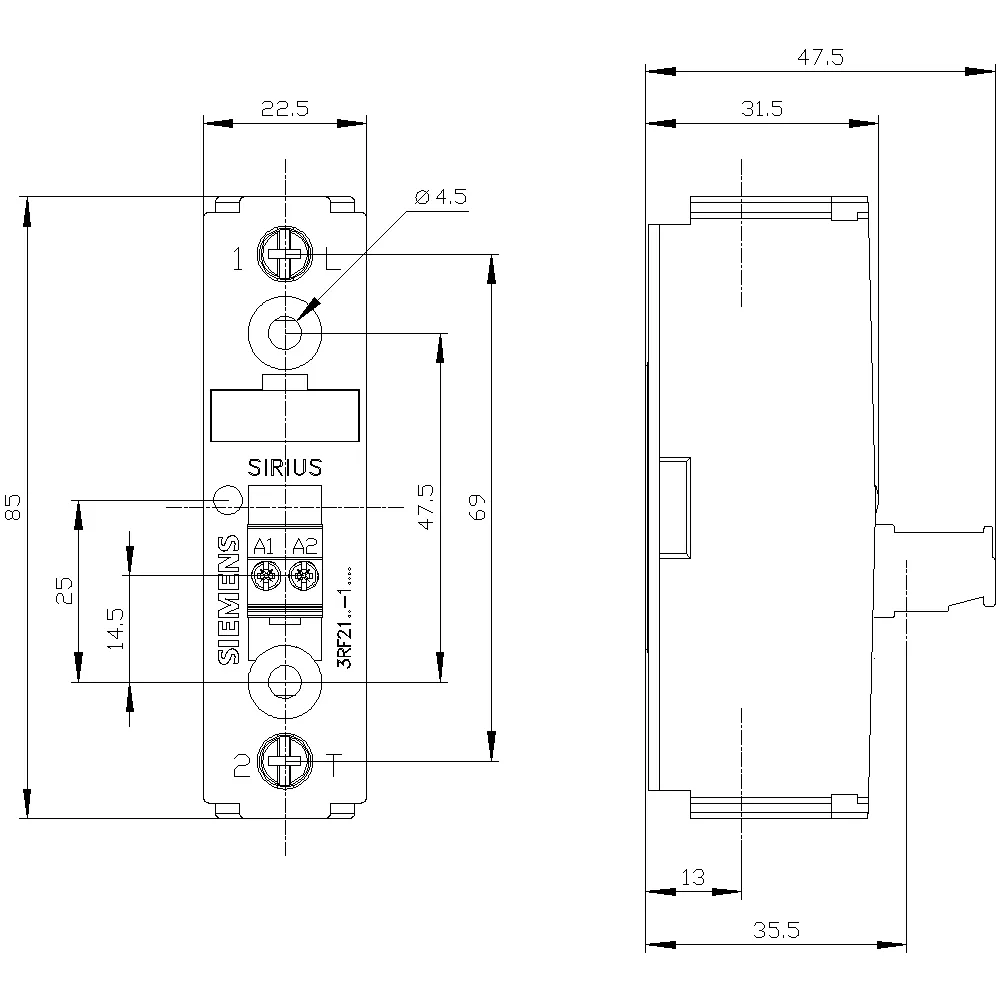

Height
85 mm
Package width
46 mm
Package depth
106 mm
Package height
50 mm
Package weight
76 g
Compliance certificates
CE, RoHS, REACH
Actuating voltage type
DC
Suitable for distribution boards
Yes
Operating voltage AC (50Hz)
48 - 460 V
Operating coltage AC (60Hz)
48 - 460 V
Electrical connection type
Screw connection
Rated control supply voltage (DC)
15 - 24 V
Detachable clamps
Yes
Number of phases
1
Rated operational current (Ie at AC-51)
20 A
Rated operational current (Ie at AC-1)
20 A
Operating voltage type
AC
Contact configuration
Normally open contact (NO)
Minimum order quantity
1 pc(s)
Battery included
No
Maximum order quantity
1 pc(s)
