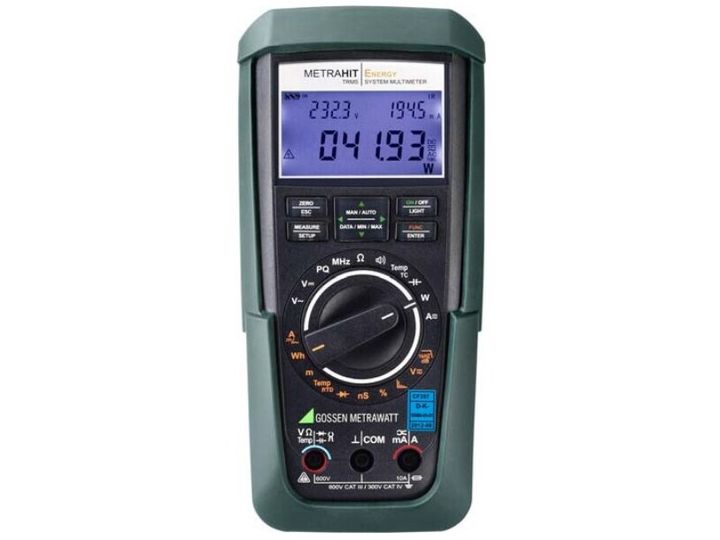

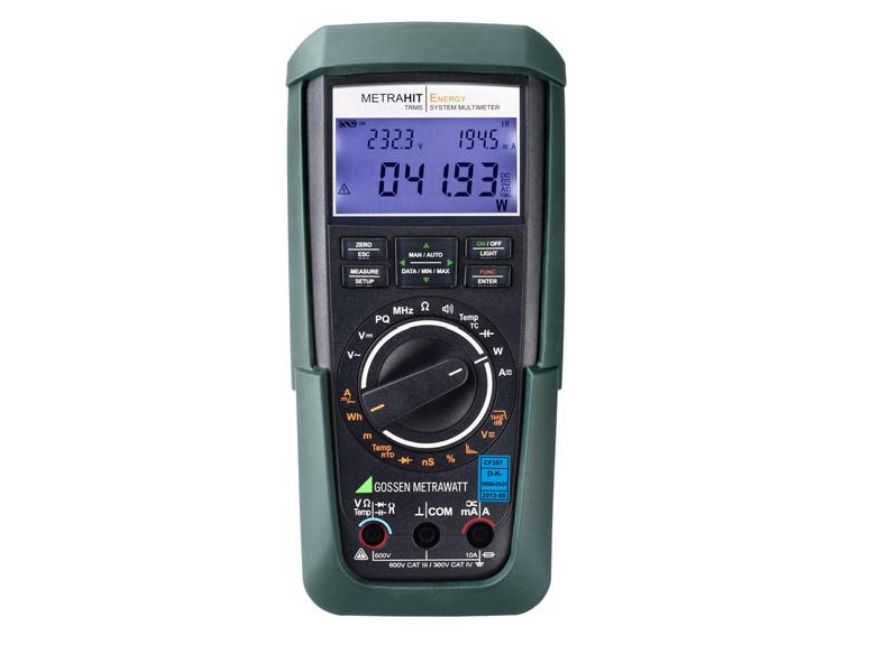

Gossen M249A, 60000 digits, 89 mm, 43 mm, 199 mm, 400 g
Item no.: [1779149] | Manufacturer: Gossen | Model no.: M249A | EAN: 4012932121841
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
1.632,48
Incl. VAT 2.040,60
Total incl. delivery
2.055,60
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
High-End Digital Multimeter with Power and Energy Measurement
The new, professional METRAHIT ENERGY multimeter is exceeding all previous performance limits.
Thanks to simultaneous TRMS current and voltage measurement (AC, AC+DC and DC) with a resolution of 60,000 digits, all important power quantities can be precisely acquired.
High-end, handheld, digital multimeter including
- RMS measurement with the following and more: V AC TRMS, V AC+DC TRMS 100 kHz with bandwidth, V DC, dB, Hz (V), Hz (A), O, µF, V diode, °C / F (TC / RTD)
- Power measurement (W, VAr, VA, PF): active, reactive and apparent power with extreme values, power factor
- Energy measurement (Wh, VArh, VAh) active, reactive and apparent energy, mean power value with adjustable observation period and maximum value
- Mains quality analysis: recording of over and undervoltage, dips, swells, voltage peaks and transients in 0, 50 and 60 Hz systems
- Harmonic analysis: RMS values and distortion components up to the 15th harmonic at 16.7, 50, 60 and 400 Hz
Special measuring functions:
- Crest factor (CF), conductivity (nS), low impedance (RSL), duty cycle (%), cable length (km)
- Triple display, display illumination can be activated for difficult lighting conditions
- Resolution: 60,000 digits (4 6/7 place)
- 1 kHz / -3 dB low-pass filter can be activated
- Direct current measurement from 10 nA to 10 A, 16 A intermittently,
- current measurement with current clamp transformers and sensors, transformation ratio is taken into account at the display
- Measurement data memory for up to 300,000 measured values
- Instrument is fully remote controllable without activating the rotary switch or changing current sockets
