PLANET FT-801, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s

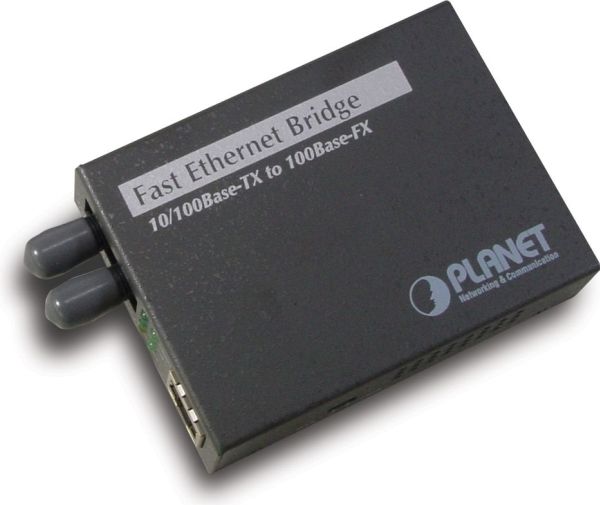

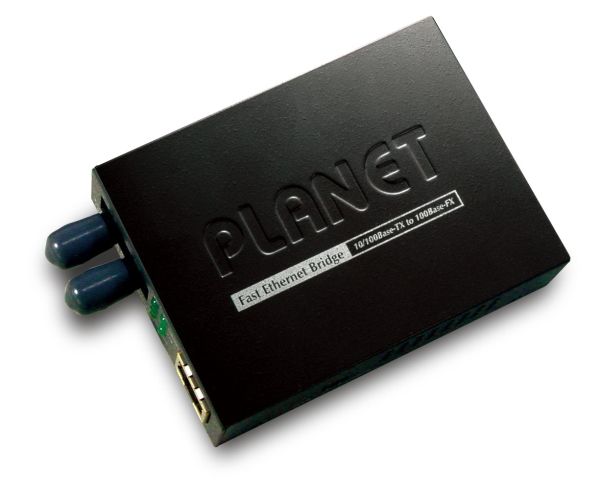

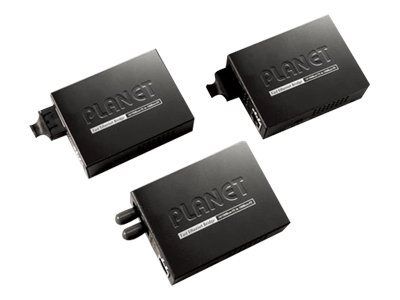

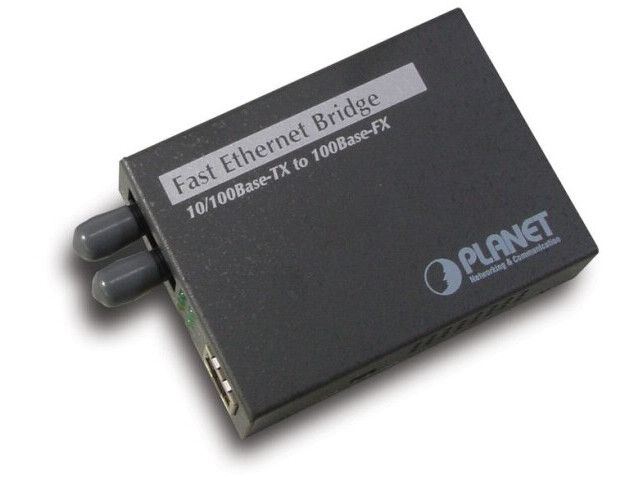

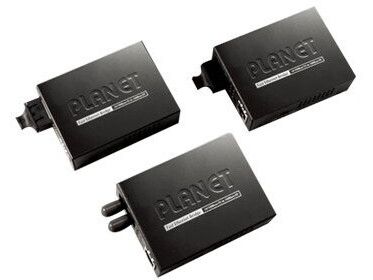

The PLANET FT-80X is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, MT-RJ, VF-45 or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 15/35/50 km are available.

The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.
