Techly Patch Panel UTP 16 Ports RJ45 Cat.5E I-PP 16-RU-C5ET, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, 10/100/1000Base-T(X), Fast Ethernet, Gigabit Ethernet, 1000 Mbit/s, RJ-45, Gold
Item no.: [1811650] | Manufacturer: TECHLY | Model no.: 022854 | EAN: 8054529022854
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
26,17
Incl. VAT 32,71
Total incl. delivery
47,71
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

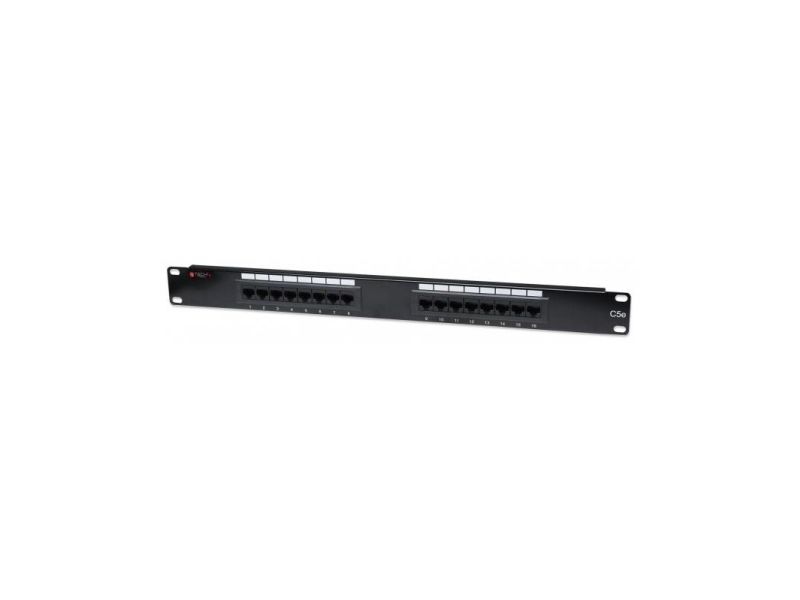

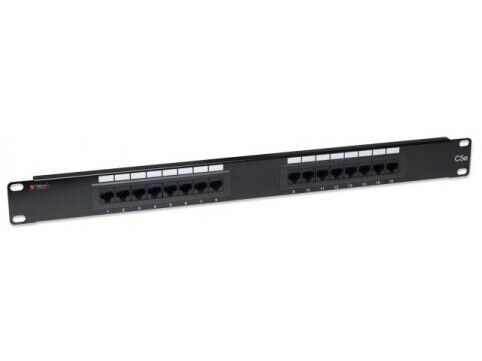

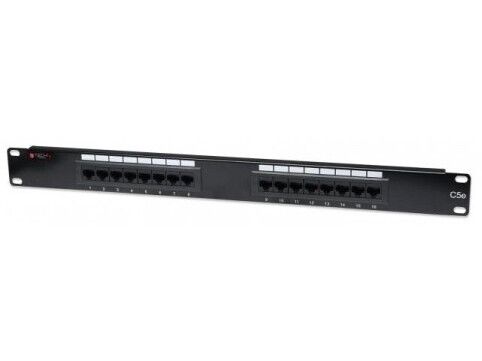

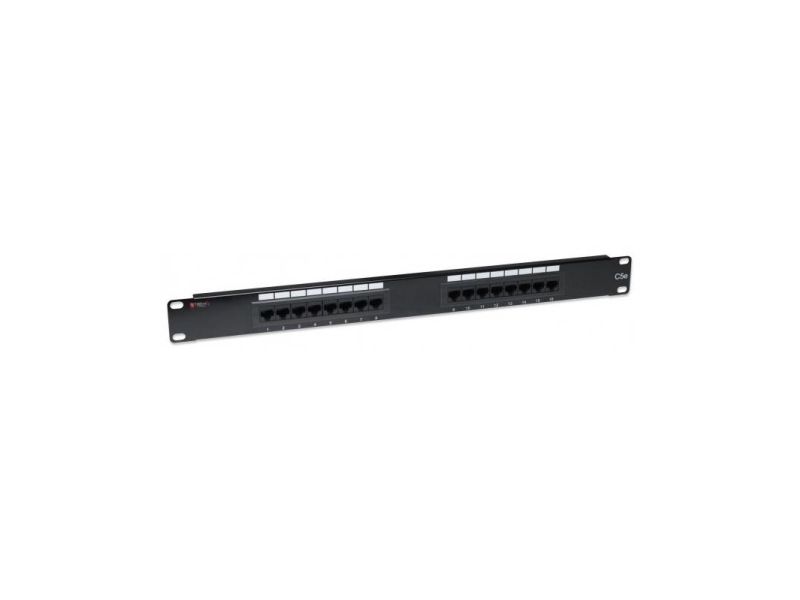

- Patch Panel UTP 16 ports RJ45 cat. 5E;
- solid and resistant terminations for copper cabling featuring connectors with gold contacts from a minimum of 3 mm 50 micro-inches;
- Compatible with both 110 and Krone inserter;
- Supports rigid and flexible cable 22 to 26 AWG;
- For use with unshielded twisted-pair network cable (UTP) Cat5e;
- Ideal for Ethernet applications, Fast Ethernet and Gigabit Ethernet;
- Connects RJ-45 ports to the network;
- Meets 19 "rackmount.
Standard
- IEEE 802.3 (10Base-T Ethernet);
- IEEE 802.3u (100Base-TX Fast Ethernet);
- IEEE 802.3ab (1000Base-T Gigabit Ethernet).
Certifications
- RoHS;
- WEEE.
Physical characteristics
- Dimensions: 482 mm (L) x 43 mm (H) x 48 mm (D);
- Horizontal distance between left and right mounting holes: 465 mm;
- The vertical distance between the mounting holes in the top and bottom: 31.8 mm;
- Operating temperature: -40 - 68 ° C.
Package Contents
- Patch Panel;
- 4 mounting screws;
- Quick Install Guide;
- Nylon Ties.
- solid and resistant terminations for copper cabling featuring connectors with gold contacts from a minimum of 3 mm 50 micro-inches;
- Compatible with both 110 and Krone inserter;
- Supports rigid and flexible cable 22 to 26 AWG;
- For use with unshielded twisted-pair network cable (UTP) Cat5e;
- Ideal for Ethernet applications, Fast Ethernet and Gigabit Ethernet;
- Connects RJ-45 ports to the network;
- Meets 19 "rackmount.
Standard
- IEEE 802.3 (10Base-T Ethernet);
- IEEE 802.3u (100Base-TX Fast Ethernet);
- IEEE 802.3ab (1000Base-T Gigabit Ethernet).
Certifications
- RoHS;
- WEEE.
Physical characteristics
- Dimensions: 482 mm (L) x 43 mm (H) x 48 mm (D);
- Horizontal distance between left and right mounting holes: 465 mm;
- The vertical distance between the mounting holes in the top and bottom: 31.8 mm;
- Operating temperature: -40 - 68 ° C.
Package Contents
- Patch Panel;
- 4 mounting screws;
- Quick Install Guide;
- Nylon Ties.
