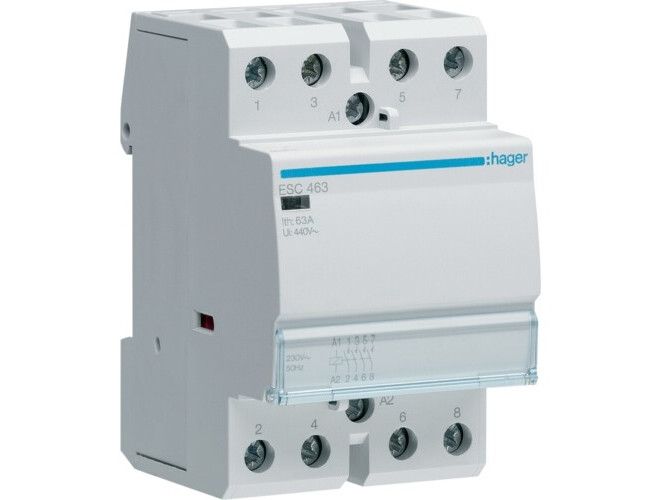

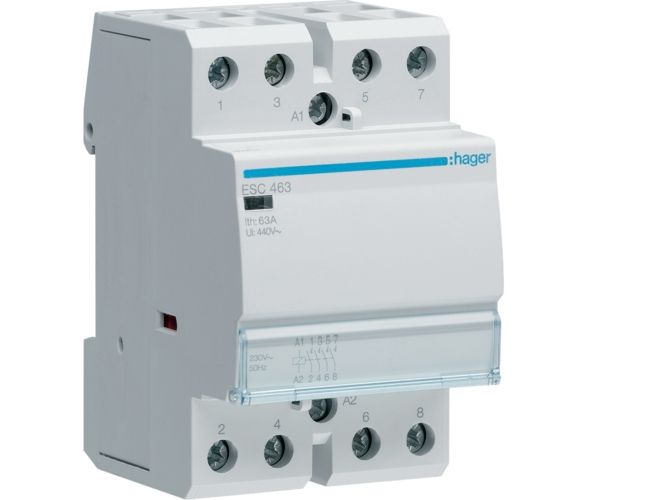

Hager ESC463, 63 A, 4/16 mm², 230 V, 50 Hz, -10 - 50 °C
Item no.: [1829614] | Manufacturer: Hager | Model no.: ESC463 | EAN: 3250612401321 | EL-nr.: 7922004585
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
97,58
Incl. VAT 121,98
Total incl. delivery
136,98
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Contactor 63A, 4NO, 230V~50Hz
Tightening torque:Coil: 2,5Nm ; Power: 3,5Nm
Type of contacts:4NO
Rated operational AC voltage:400 V
Max. power with incandescent lamps:6500 W
Number of poles:4 P
type of connection:with screw
Connection cross-sect. flexible cable:4 / 16mm²
Connection cross-sect. rigid cable:4 /25mm²
European directive RoHs:compliant
European directive WEEE:not concerned
Frequency:50 Hz
Operating temperature:-10 to 50 °C
Storage temperature:-40 to 80 °C
Protection index IP:2
Tightening torque:Coil: 2,5Nm ; Power: 3,5Nm
Type of contacts:4NO
Rated operational AC voltage:400 V
Max. power with incandescent lamps:6500 W
Number of poles:4 P
type of connection:with screw
Connection cross-sect. flexible cable:4 / 16mm²
Connection cross-sect. rigid cable:4 /25mm²
European directive RoHs:compliant
European directive WEEE:not concerned
Frequency:50 Hz
Operating temperature:-10 to 50 °C
Storage temperature:-40 to 80 °C
Protection index IP:2
