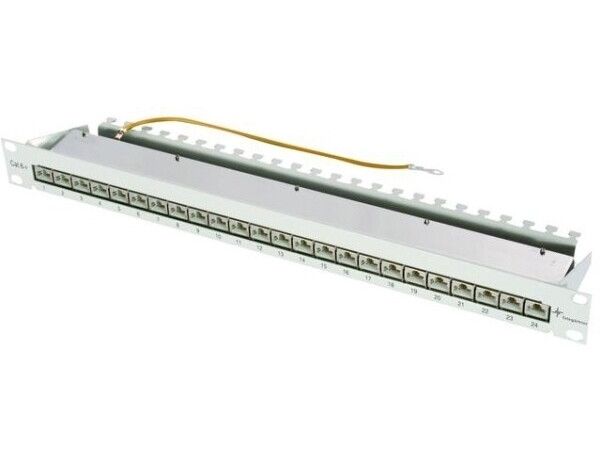

Telegärtner 19-inch Patch Panel MPP24-HS K Cat.6A, RJ-45, Cat6a, Grey, Rack mounting, 1U, 482.6 mm
Item no.: [1830244] | Manufacturer: Telegärtner | Model no.: J02023A0050 | EAN: 4018359363314
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
117,54
Incl. VAT 146,93
Total incl. delivery
161,93
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
- 19-inch Patch Panel MPP24-HS K Cat.6A.
- MPP24-HS Cat.6+.
- 19-inch/10-inch rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB.
- No special tooling required for mounting of cover (shielded type).
- Printed circuit board is mounted horizontally.
- Grounding using the enclosed earth connection cable (shielded types).
- Cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B.
- 360 degree shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type).
- Risk of short-circuit between screening braid and data leads is minimized due to sufficient space between data terminals and screening contact.
- Limit of 13mm max. of untwisted length of data leads can be easily achieved without restricting an easy installation.
- Enclosed cable ties for strain relief of the cables without need of screws and special tools.
- Modular jacks are numbered on the front panel.
- Housing is made of steel and powder-laminated in light grey (RAL 7035); the cover is made of stainless steel.
- MPP24-HS Cat.6+.
- 19-inch/10-inch rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB.
- No special tooling required for mounting of cover (shielded type).
- Printed circuit board is mounted horizontally.
- Grounding using the enclosed earth connection cable (shielded types).
- Cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B.
- 360 degree shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type).
- Risk of short-circuit between screening braid and data leads is minimized due to sufficient space between data terminals and screening contact.
- Limit of 13mm max. of untwisted length of data leads can be easily achieved without restricting an easy installation.
- Enclosed cable ties for strain relief of the cables without need of screws and special tools.
- Modular jacks are numbered on the front panel.
- Housing is made of steel and powder-laminated in light grey (RAL 7035); the cover is made of stainless steel.
