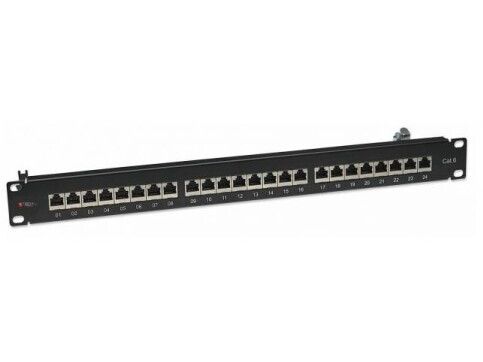

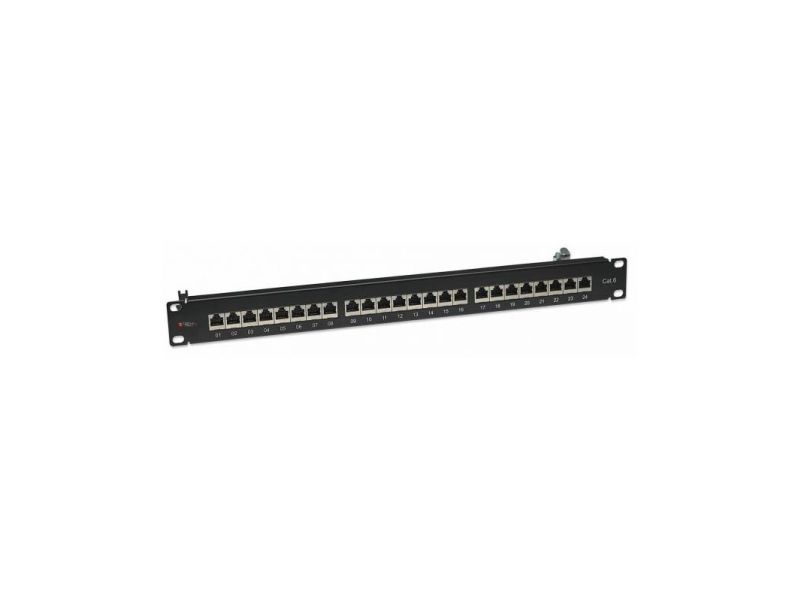

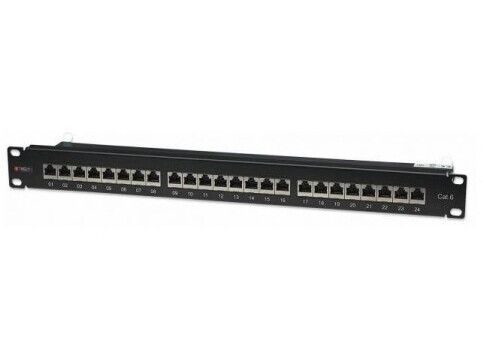

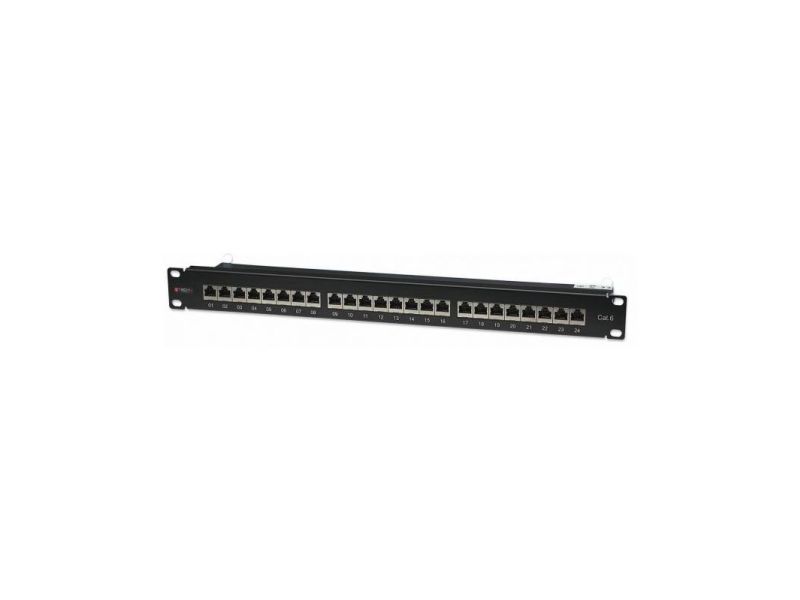

Techly Patch Panel STP 24 Ports RJ45 Cat.6 I-PP 24-RS-C6T, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, 10/100/1000Base-T(X), Fast Ethernet, Gigabit Ethernet, 1000 Mbit/s, RJ-45, Gold
Item no.: [1831915] | Manufacturer: TECHLY | Model no.: 022878 | EAN: 8054529022878
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
178,46
Incl. VAT 223,08
Total incl. delivery
238,08
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
- Patch panel STP 24 ports RJ45 cat. 6;
- Solid and resistant terminations for copper cabling featuring connectors with gold contacts from a minimum of 3 mm 50 micro-inches;
- Simplified installation with top entry;
- Compatible with both 100 that Krone;
- Supports rigid and flexible cable 22 to 26 AWG;
- For use with Cat6 cable shielded twisted pair (FTP);
- Ideal for Ethernet applications, Fast Ethernet and Gigabit Ethernet;
- Meets for rack mounting 19".
Standard
- IEEE 802.3 (10Base-T Ethernet);
- IEEE 802.3u (100Base-TX Fast Ethernet);
- IEEE 802.3ab (1000Base-T Gigabit Ethernet).
Certifications
- RoHS;
- WEEE.
Physical characteristics
- Dimensions: 482 mm (L) x 43 mm (H) x 109 mm (D);
- Horizontal distance between left and right mounting holes: 465 mm;
- The vertical distance between the mounting holes in the top and bottom: 31.8 mm;
- Operating temperature: -40 - 68 °C.
Package Contents
- Patch Panel;
- 4 mounting screws;
- Quick Install Guide;
- Nylon Ties.
