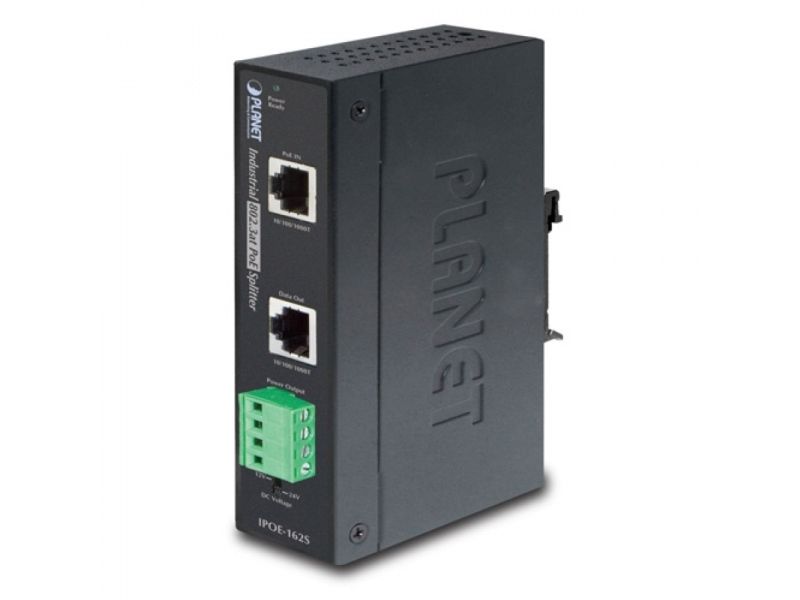

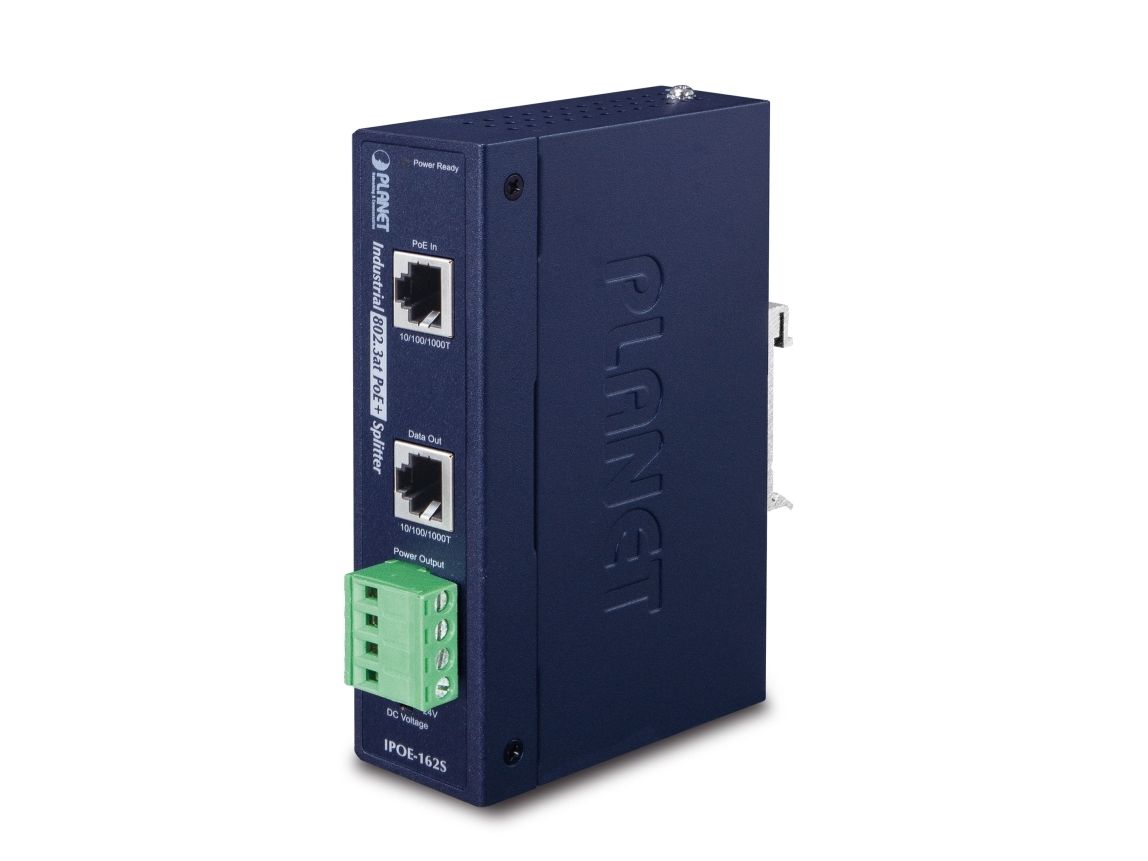

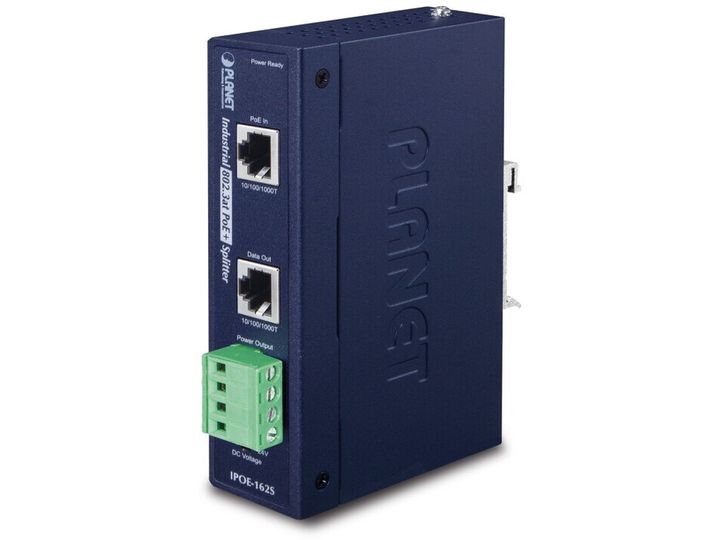

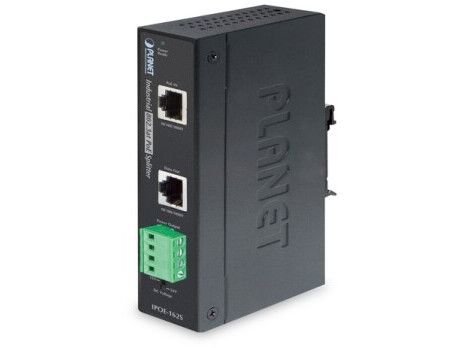

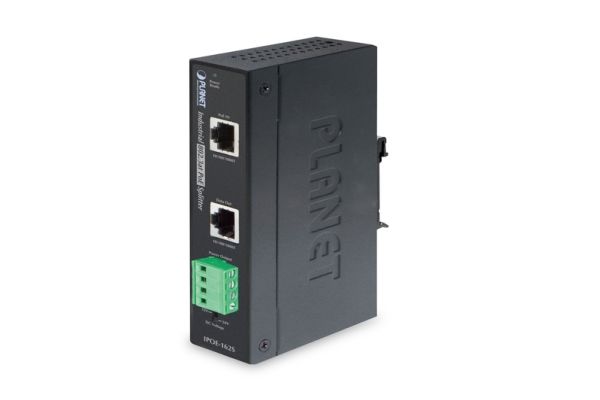

Planet IPOE-162S is an industrial high power PoE splitter that can split the 48-56 V DC over the existing Ethernet cable into the selectable 12 V or 24 V DC power output. It supports passive 10/100/1000 Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25 W output power to powered device. With compact, slim industrial case protection, the space saving Industrial High Power PoE Splitter IPOE-162S can be placed in almost any difficult environment.
Produktbeskrivelse
PLANET IPOE-162S - PoE fordeler - 25 watt
Enhedstype
PoE fordeler - monterbar på DIN rail
Power Over Ethernet (PoE)
PoE+
Vægt
421 g
Indgangspænding
48 - 56 V
Udgangspænding
12 / 24 V
Strømkapacitet
25 watt
Input-stik
1 x RJ-45
Output-stikforbindelser
1 x terminalblok
Netværk
Ethernet 10/100/1000
Dimensioner (B x D x H)
13.5 cm x 8.78 cm x 3.2 cm
Generelt
Enhedstype
PoE fordeler - monterbar på DIN rail
Power Over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Strømenhed
Indgangspænding
48 - 56 V
Input-stik
1 x RJ-45
Detaljer om strømudgangskonnektorer
1 x terminalblok
Udgangspænding
12 / 24 V
Max. elektrisk strøm
2 A
Strømkapacitet
25 watt
Netværk
Grænseflade til fjernstyring
Ethernet 10/100/1000
Ekspansion / Konnektivitet
Interface
1 x Gigabit LAN - RJ-45
Diverse
Egenskaber
6000V EFT beskyttelse, 6000V ESD beskyttelse
Overensstemmelsesstandarder
IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IP30, FCC Part 15 A, IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
75 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
Mål og vægt
Bredde
13.5 cm
Dybde
8.78 cm
Højde
3.2 cm
Vægt
421 g
