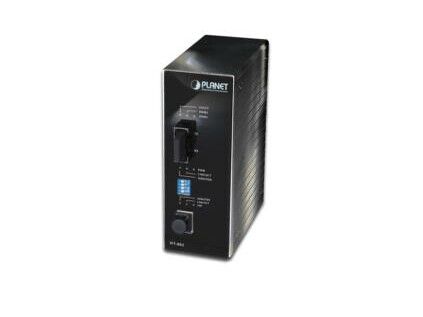

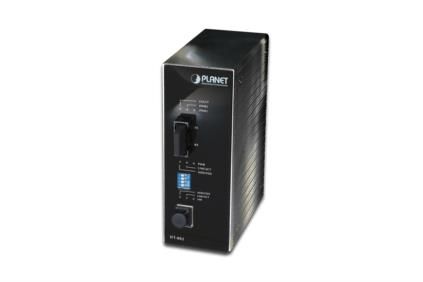

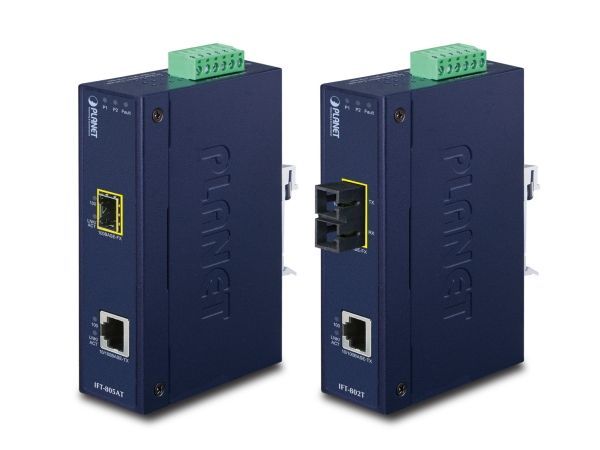

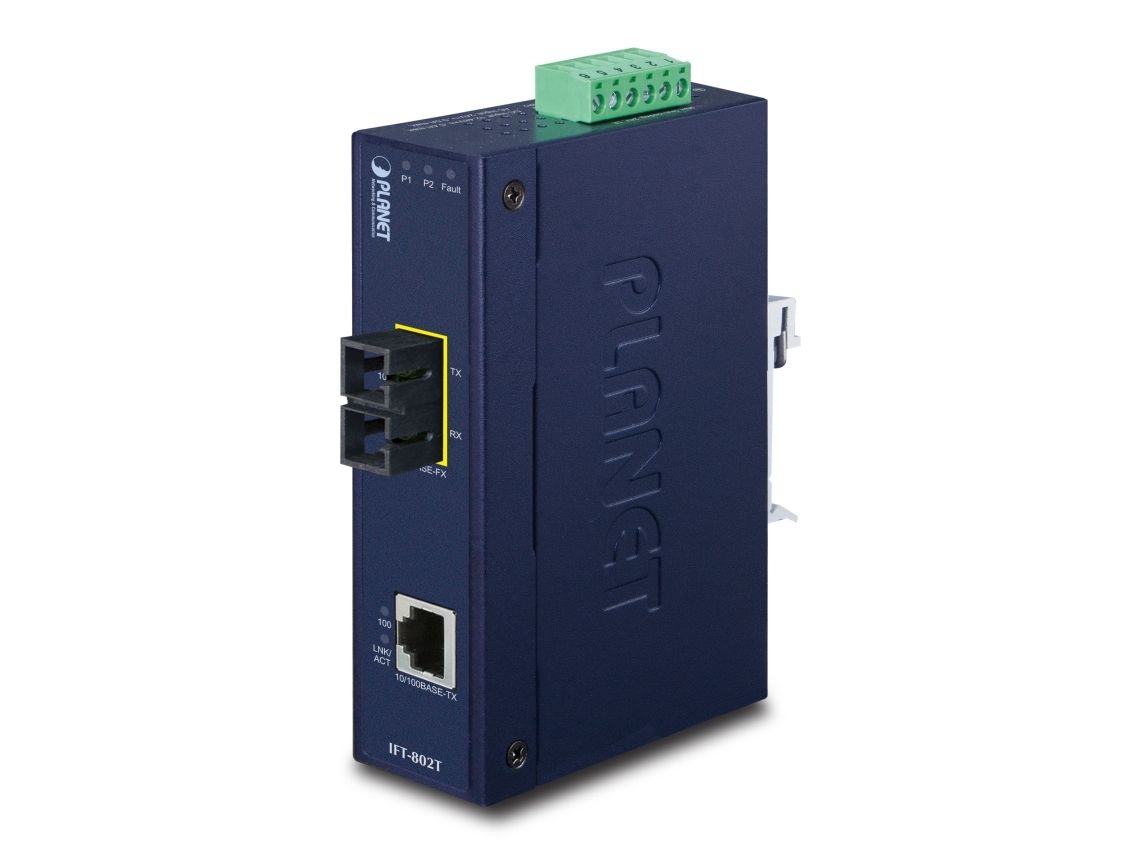

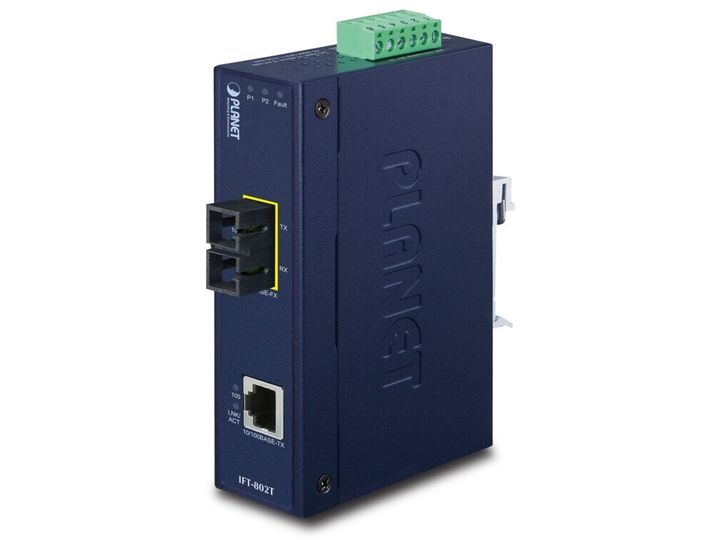

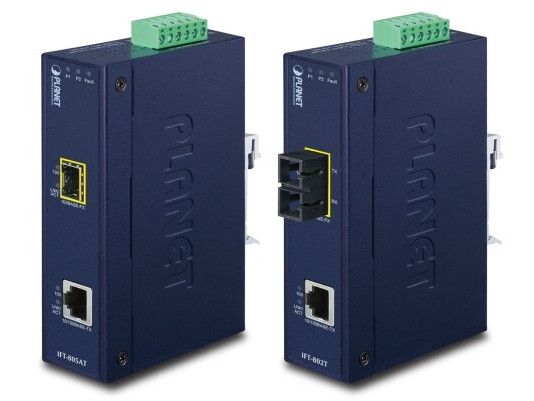

PLANET 10/100 Base-TX to 100 Base-FX Industrial Media Converter IFT-802T extends communication distance with stable performance via fiber optic wire. The IFT-802T is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-802T to be placed in almost any difficult environment. PLANET IFT-802T 10/100 Base-TX to 100 Base-FX Industrial Media Converter series efficiently converts data between 10/100 Base-TX and 100 Base-FX network. The IFT-802T provides the flexibility to all kinds of 10/100 Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
Produktbeskrivelse
PLANET IFT-802T - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype
Fibermedieomformer - SC multimodus / RJ-45
Model
Ekstern
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Maks. overføringsafstand
2 km
Effekt
DC 12 - 48 V
Dimensioner (B x D x H)
13.5 cm x 8.5 cm x 3.2 cm
Vægt
430 g
Generelt
Enhedstype
Fibermedieomformer
Model
Ekstern
Netværk
Forbindelsesteknologi
Kablet
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Maks. overføringsafstand
2 km
Statusindikatorer
Strøm, link/aktivitet
Egenskaber
Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), halv dupleksmodus, fuld dupleksmodus, til vægmontering, monterbar på DIN-skinne, 6KV ESD Protector
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ekspansion / Konnektivitet
Interface
1 x Ethernet 100Base-FX - SC multi-mode x 2 1 x Ethernet 10Base-T/100Base-TX - RJ-45
Diverse
Overensstemmelsesstandarder
IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30
Effekt
Nødvendig spænding
DC 12 - 48 V
Strømforbrug ved drift
3 watt
Mål og vægt
Bredde
13.5 cm
Dybde
8.5 cm
Højde
3.2 cm
Vægt
430 g
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
75 °C
Fugtighedsgrad ved brug
5 - 90 % (ikke kondenserende)
