Akyga ATX power supply 420W Basic series is one of the fundamental power supplies in our offer dedicated to power desktop computers.
Product is made of high quality components. The power supply has a 3x SATA connectors, 2x MOLEX connectors, P4 4-pin connector and a universal 20+4-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Efficient, quiet fan with automatic speed control and a diameter of 120 mm ensures effective cooling. The power supply has a manual switch that allows the user to safely cut off power without having to disconnect the cord from the network. High efficiency above 70% allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer.
Produktbeskrivelse
Akyga AK-B1-420 - strømforsyning - 420 watt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
Vægt
801 g
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
420 watt
Output Current

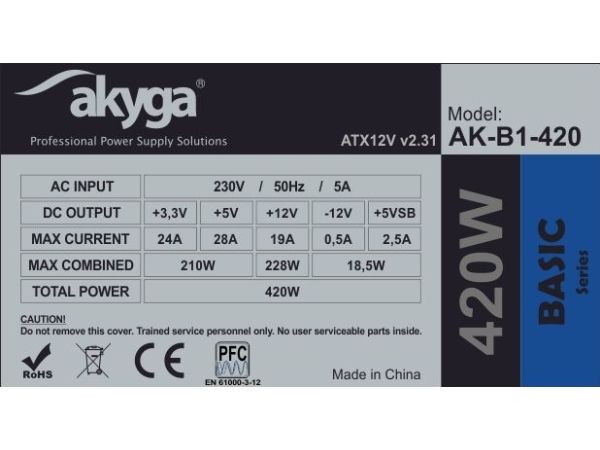

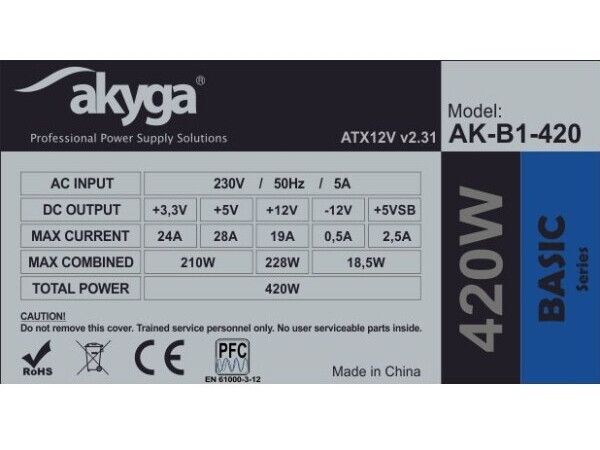

+3.3V - 24 A +5V - 28 A +12V - 19 A -12V - 0.5 A +5VSB - 2.5 A
Input-stik
1 x strøm IEC 60320 C14
Output-stikforbindelser

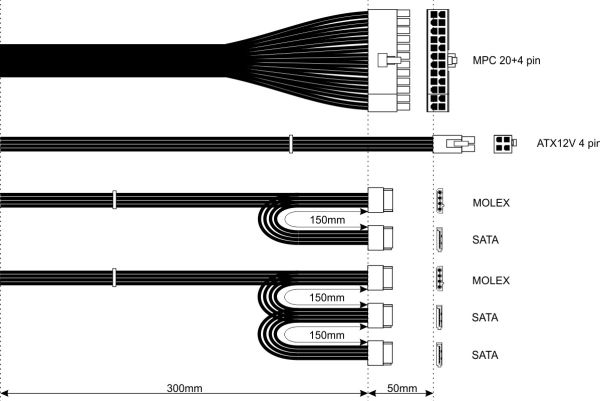

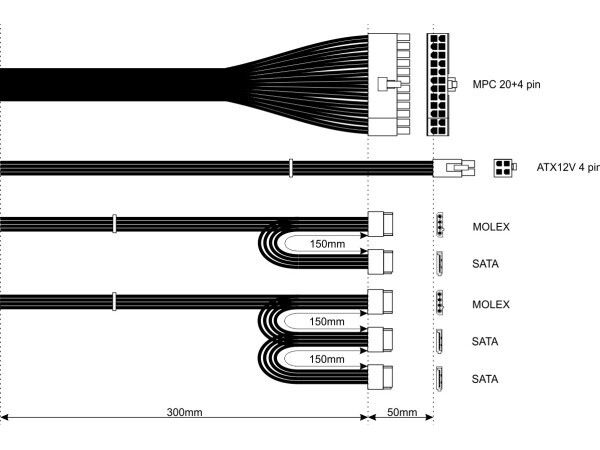

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 3 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm
Kølesystem
120 mm ventilator
Farve
Galvaniseret stål
Dimensioner (B x D x H)
15 cm x 14 cm x 8.5 cm
Generelt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
PSU formfaktor
ATX
Farve
Galvaniseret stål
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 Hz
Input-stik
1 x strøm IEC 60320 C14
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 3 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
420 watt
Output Current
+3.3V - 24 A +5V - 28 A +12V - 19 A -12V - 0.5 A +5VSB - 2.5 A
Effektivitet
70%
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, kortslutnings beskyttelse, ikke-modulær
Overensstemmelsesstandarder
RoHS
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.5 cm
Vægt
801 g
Mål & vægt (forsendelse)
Bredde ved forsendelse
20 cm
Dybde ved forsendelse
15 cm
Højde ved forsendelse
8.5 cm
Vægt ved forsendelse
1.012 kg
