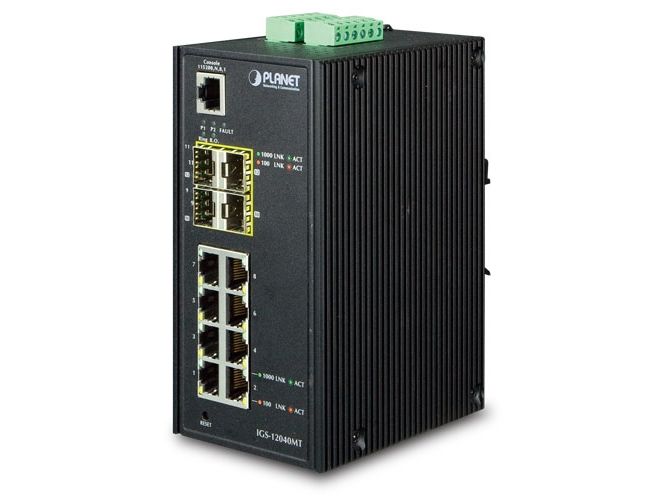

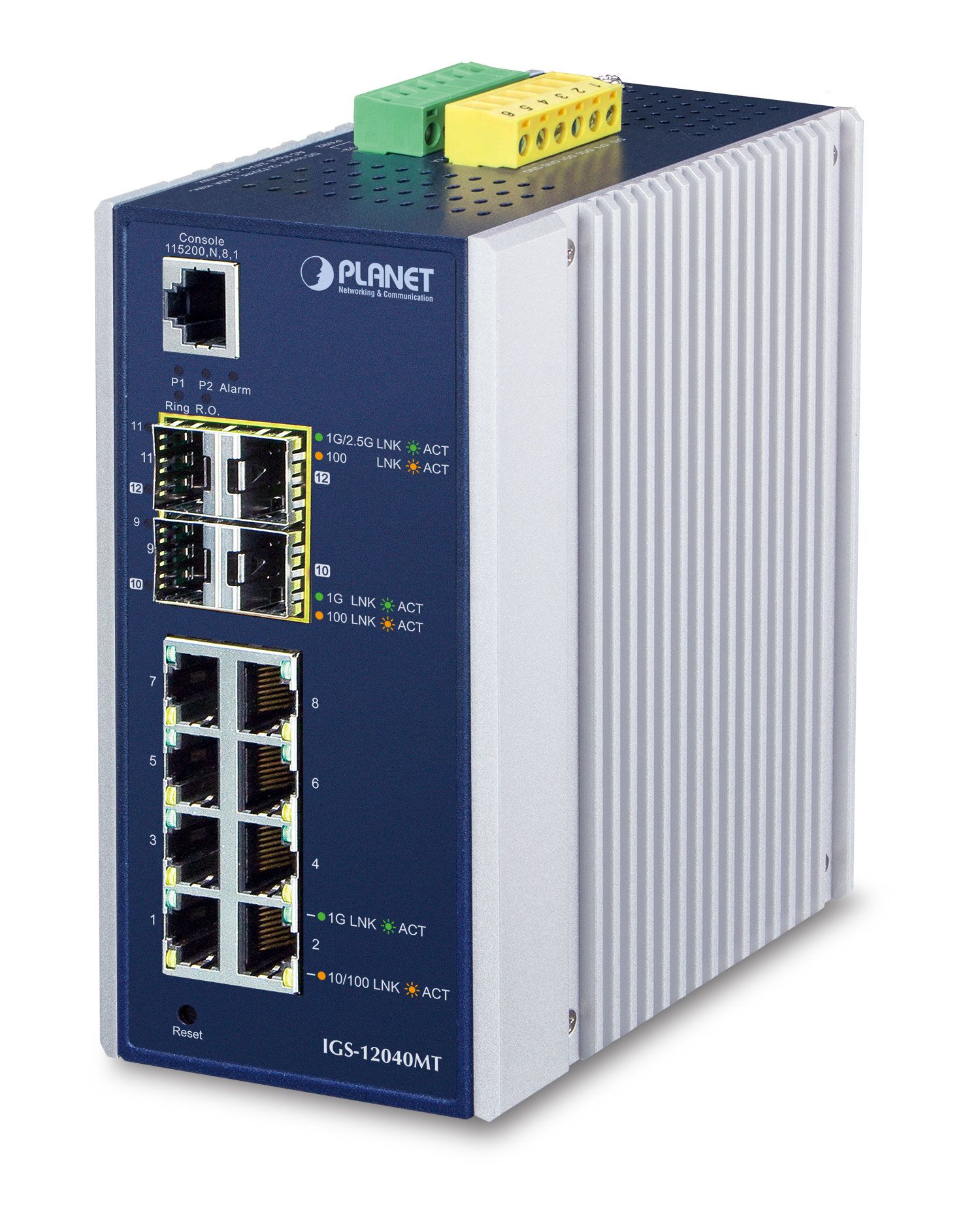

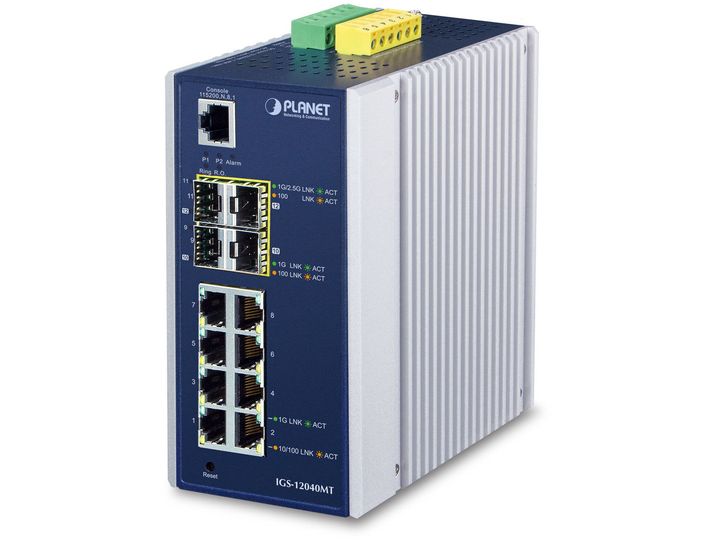

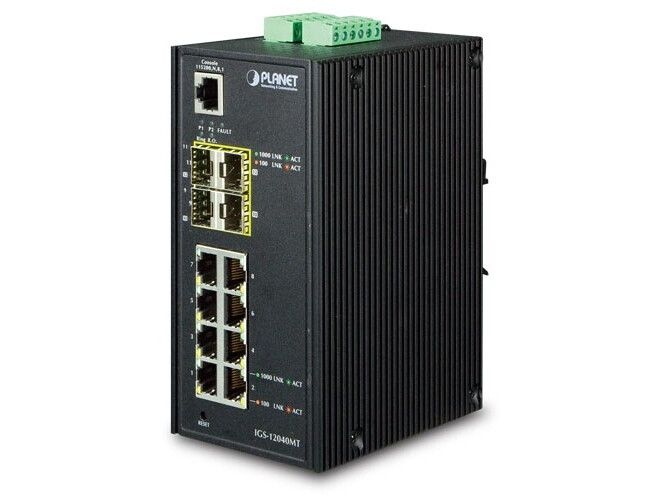

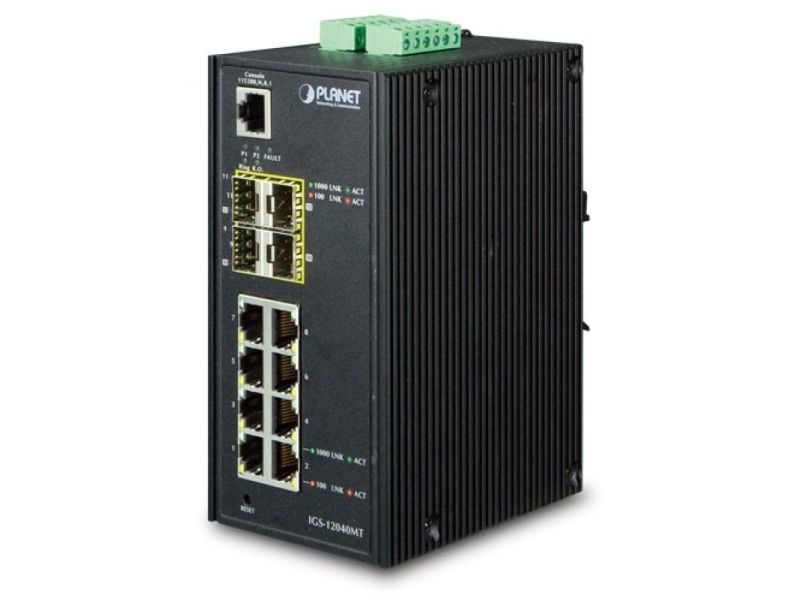

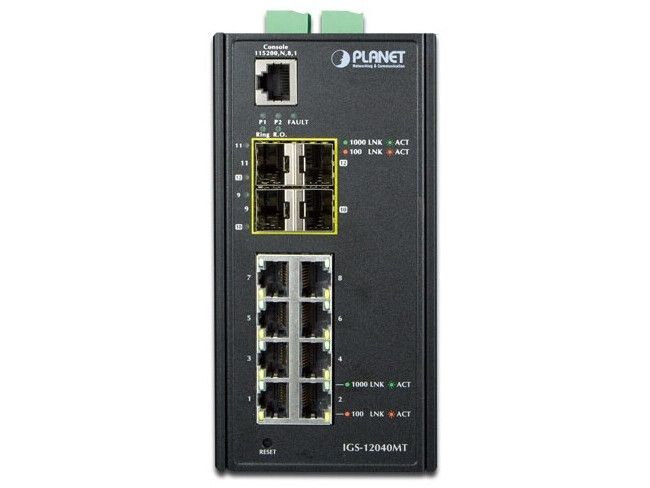

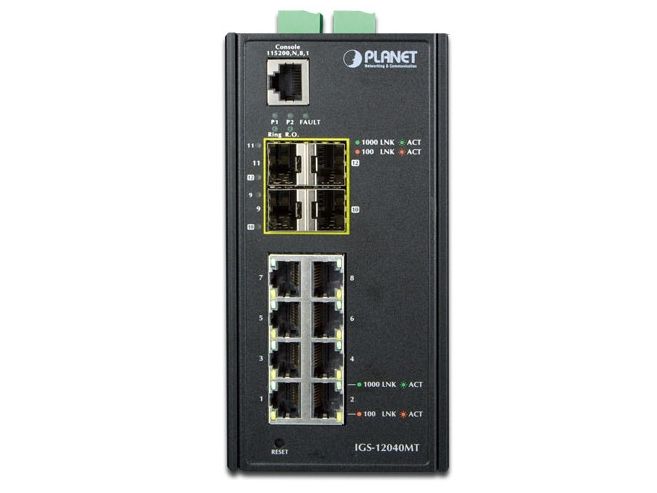

PLANET IGS-12040MT, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Item no.: [1863810] | Manufacturer: Planet Technology | Model no.: IGS-12040MT | EAN: 4711605281010

Remote stock (4-5 days)

The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping @price - GLS

12,00

EUR 414,27

Incl. VAT 517,84

Total incl. delivery 532,84

Read further specifications and description

PLANET IGS-12040MT is an Industrial 12-port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable and high speed data in heavy industrial demanding environments and forward data to remote network through fiber optic. It provides 8-port 10/100/1000BASE-T copper and 4 extra 100/1000BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. Besides support for 24 Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-12040MT provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.

Produktbeskrivelse	PLANET IGS-12040MT - switch - 12 porte - Administreret
Enhedstype	Switch - 12 porte - Administreret
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 + 4 x Gigabit SFP
Præstation	Skift af stofbåndbredde: 24 Gbps Kapacitet: 17,85 Mpps
Kapacitet	Virtuelle grænseflader (VLANs): 4095 Routing table bidrag: 32
Jumborammesupport	9KB
Routingprotokol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protokol til fjernadministration	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Egenskaber	Datatransport, routing, DHCP-understøttelse, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, Syslog understøttet, portspejling, gem og send, IPv6 understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DAI, IPv4 support, LLDP support, LACP, SNMP fælde, CoS, DoS, 6KV ESD Protector, DSCP support, ERPS, IP-kildebekyttelse, ICMP
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad

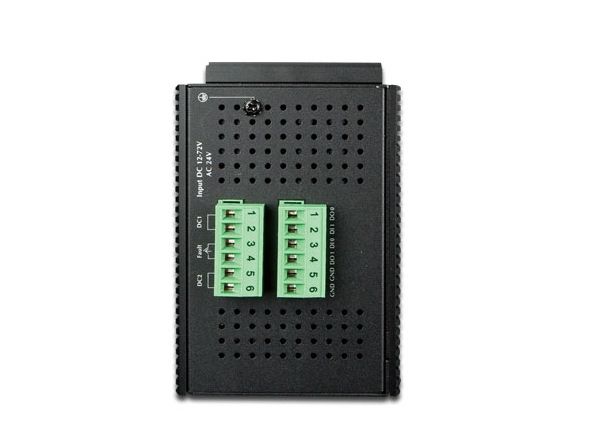

Effekt	AC 24 V / DC 12 -72 V
Overskudsspænding	Ja
Dimensioner (B x D x H)	10.7 cm x 7.2 cm x 15.2 cm
Vægt	1.01 kg

Generelt
Enhedstype	Switch - 12 porte - Administreret
Pakningstype	DIN monterbar på skinne, væg-monterbar
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 + 4 x Gigabit SFP
Præstation	Skift af stofbåndbredde: 24 Gbps Kapacitet: 17,85 Mpps
Kapacitet	Virtuelle grænseflader (VLANs): 4095 Routing table bidrag: 32
Jumborammesupport	9KB
Routingprotokol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protokol til fjernadministration	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Krypterings algoritme	SSL
Autentificeringsmetode	RADIUS, TACACS+
Egenskaber	Datatransport, routing, DHCP-understøttelse, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, Syslog understøttet, portspejling, gem og send, IPv6 understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DAI, IPv4 support, LLDP support, LACP, SNMP fælde, CoS, DoS, 6KV ESD Protector, DSCP support, ERPS, IP-kildebekyttelse, ICMP
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad
Statusindikatorer	Strøm, mislykket, alarm, link/aktivitet
Ekspansion / Konnektivitet
Interface	8 x 1000Base-T RJ-45 4 x 1000Base-X SFP 1 x seriel (konsol)
Effekt
Strømenhed	Intern strømforsyning
Overskudsspænding	Ja
Nødvendig spænding	AC 24 V / DC 12 -72 V
Strømforbrug ved drift	12 Watt
Diverse
Overensstemmelsesstandarder	IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Mål og vægt
Bredde	10.7 cm
Dybde	7.2 cm
Højde	15.2 cm
Vægt	1.01 kg
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-40 °C
Maks. Opbevaringstemperatur	85 °C
Lagerfugtighedsgrad	5 - 95 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	4711605281010
SKU:	IGS-12040MT

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
