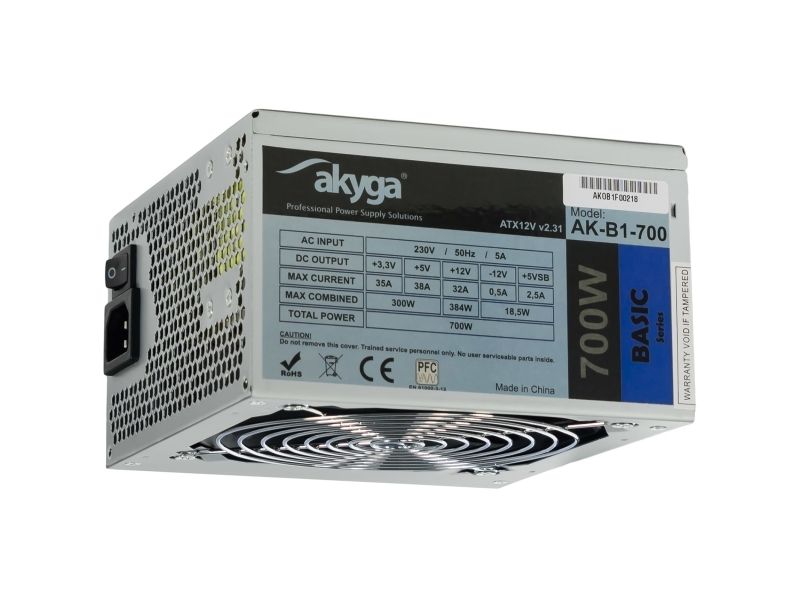

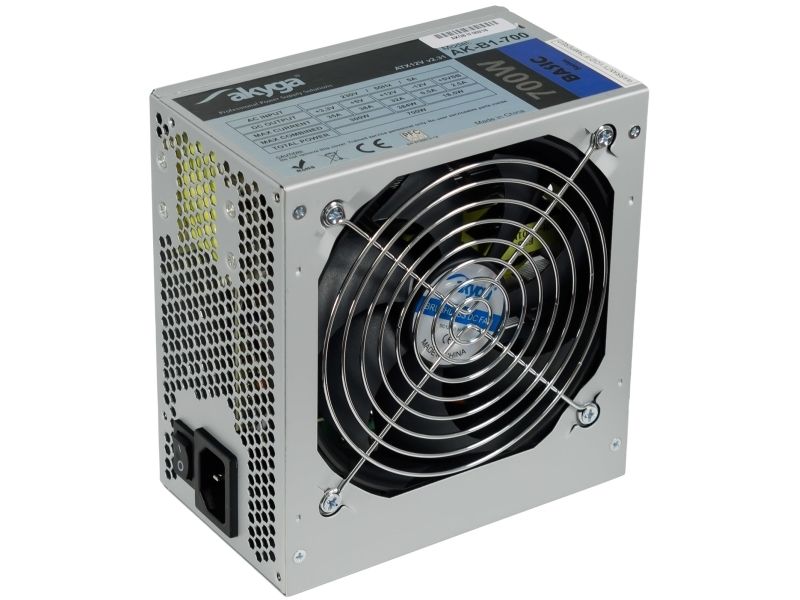

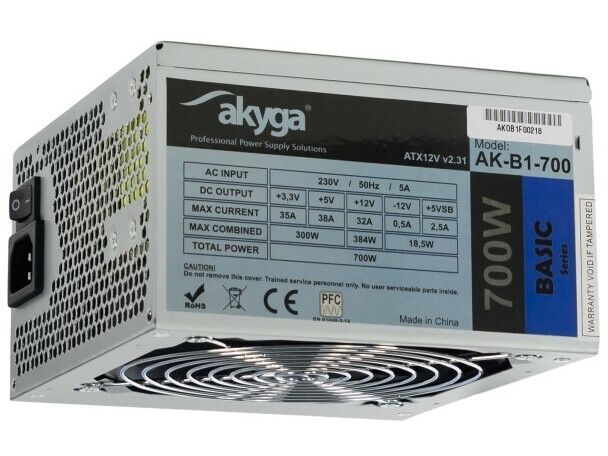

Akyga® AK-B1-700 ATX power supply 700W is one of the basic power supplies in our offer dedicated to power desktop computers.

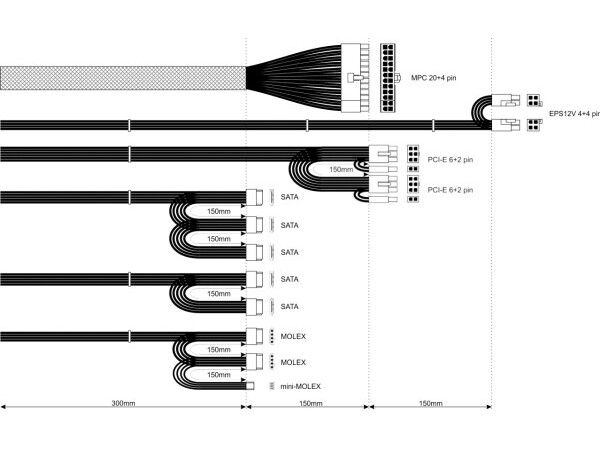

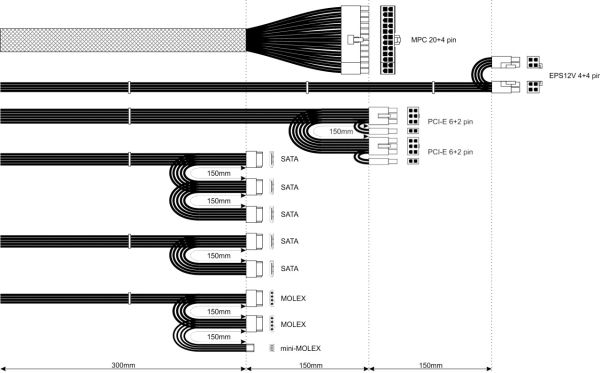

Made of high quality components, the power supply has 5x SATA connectors, 2x MOLEX connectors, mini-MOLEX connector, EPS12V 4+4pin connector, 2x PCI-E 6+2-pin connector and an universal 24-pinmotherboard connector. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.
Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.
Produktbeskrivelse
Akyga Basic Series AK-B1-700 - strømforsyning - 700 watt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
Vægt
1.26 kg
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 watt
Output Current

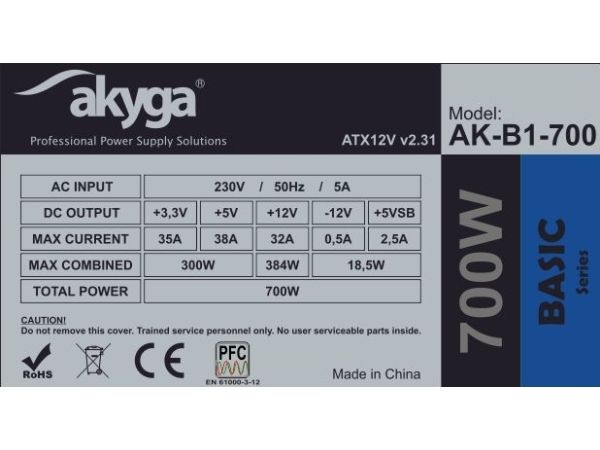

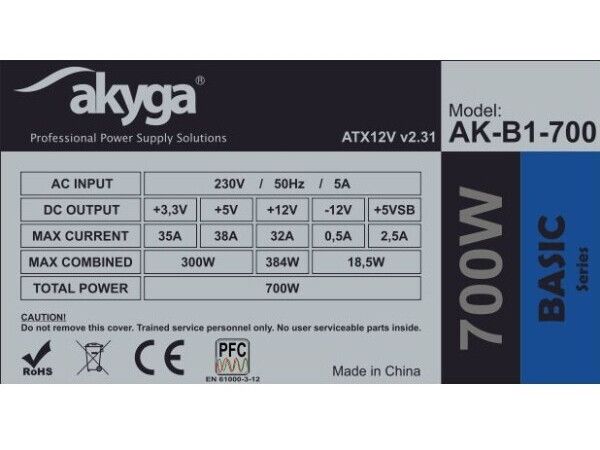

+3.3V - 35 A +5V - 38 A +12V - 32 A -12V - 0.5 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 5 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x 6 pin PCI Express-strøm 1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
Kølesystem
120 mm ventilator
Farve
Grå
Dimensioner (B x D x H)
15 cm x 16 cm x 8.5 cm
Generelt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
PSU formfaktor
ATX
Farve
Grå
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 5 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x 6 pin PCI Express-strøm 1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 watt
Output Current
+3.3V - 35 A +5V - 38 A +12V - 32 A -12V - 0.5 A +5VSB - 2.5 A
Effektivitet
70%
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
EcoBox-pakke, beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, blæserhastighedsstyring
Overensstemmelsesstandarder
RoHS, REACH, EN 61000-3
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
50 °C
Mål og vægt
Bredde
15 cm
Dybde
16 cm
Højde
8.5 cm
Vægt
1.26 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
18 cm
Dybde ved forsendelse
26 cm
Højde ved forsendelse
9.5 cm
Vægt ved forsendelse
1.33 kg
