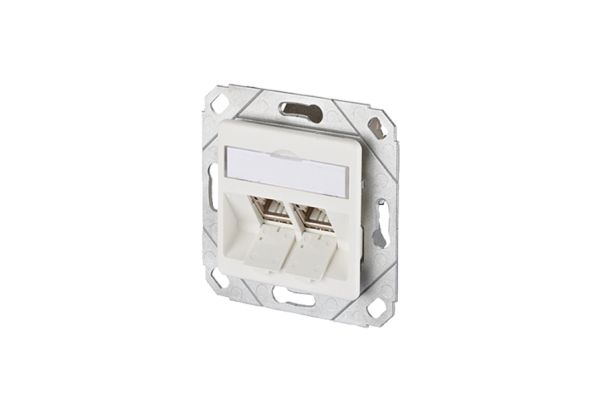

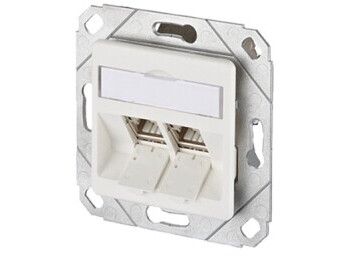

METZ CONNECT 130B12D21102-E, RJ-45, 6a, -40 - 70 ° C, Vit, Akrylnitrilbutadienstyren (ABS), Zink, GHMT, CE
Item no.: [1909264] | Manufacturer: Metz | Model no.: 130B12D21102-E | EAN: 4250184131915
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
29,04
Incl. VAT 36,30
Total incl. delivery
51,30
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
raceway termination unit with C6Amodul 270°
certified to GHMT Cat.6A re-embedded PVP
component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
compliance with class EA up to 500 MHz to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
tested: component up to 600 MHz, link up to 800 MHz
suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
module plug direction 45° downwards
strain relief snapped on to stuffer cap
with label window for enclosed identification labels
label sheet 209 x 294 mm see accessory
integrated dust protection covers (also colored)
cover parts in pure white RAL 9010, structured surface with matt finish
compatible with "design" central units of switch lines
suitable for mounting in standard flush-mounted and cavity wall casings, except 3 port version!
certified to GHMT Cat.6A re-embedded PVP
component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
compliance with class EA up to 500 MHz to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
tested: component up to 600 MHz, link up to 800 MHz
suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
module plug direction 45° downwards
strain relief snapped on to stuffer cap
with label window for enclosed identification labels
label sheet 209 x 294 mm see accessory
integrated dust protection covers (also colored)
cover parts in pure white RAL 9010, structured surface with matt finish
compatible with "design" central units of switch lines
suitable for mounting in standard flush-mounted and cavity wall casings, except 3 port version!
