Wago 750-348, Grey, DIN 35 × 15, 6 mm, 10000 Bd, 0.8 mm², 1.5 mm²
Item no.: [1927913] | Manufacturer: WAGO | Model no.: 750-348 | EAN: 4045454395964
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
191,93
Incl. VAT 239,91
Total incl. delivery
254,91
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

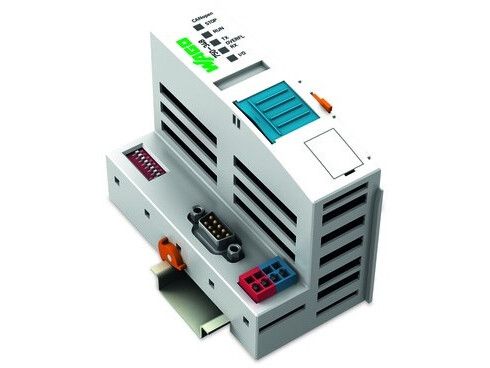

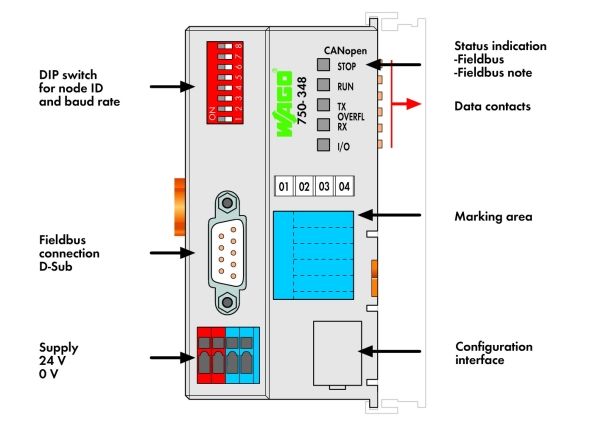

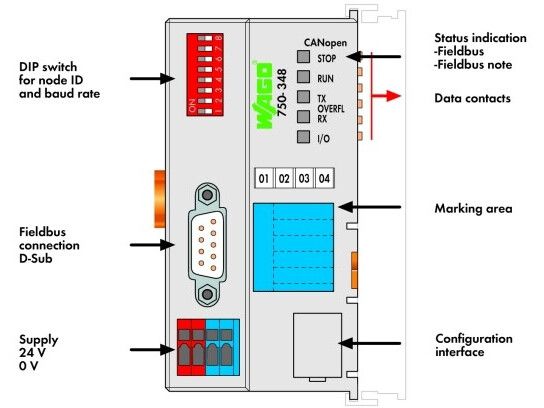

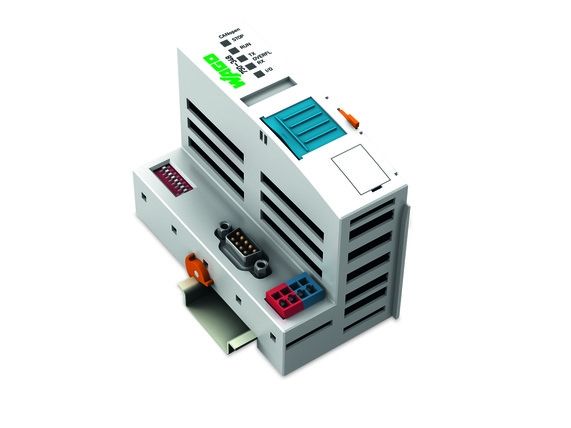

Fieldbus Coupler CANopen; D-Sub; ECO
The ECO fieldbus coupler is designed for applications with a reduced scale I/O requirement. Using digital only process data or small amounts of analogs, while retaining all of the choice that’s offered by the Series 750 I/O.

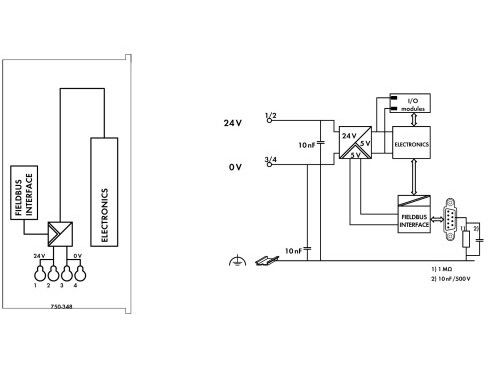

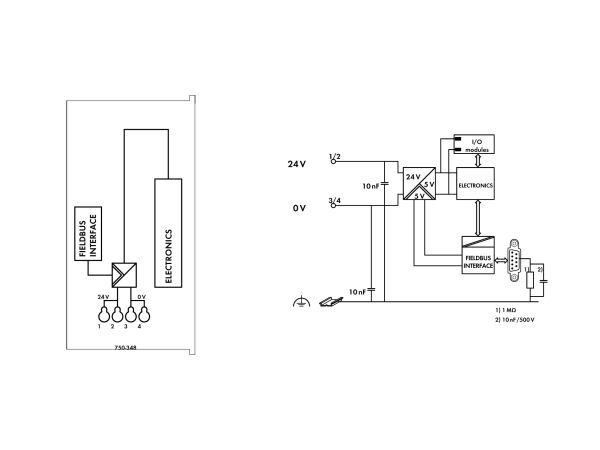

The coupler has an integrated supply terminal for the system voltage. The field power jumper contacts are supplied via a separate supply module.
The CANopen bus coupler is capable of supporting all I/O modules and automatically configures, creating a local process image.
The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the CANopen fieldbus to the PLC, PC or NC for further processing, and received from the field via CANopen.
The data of the analog modules is stored in the PDOs according to the order in which the modules are connected to the buscoupler. The bits of the digital modules are sent byte by byte and also mapped in the PDOs. If the amount of digital information exceeds 8 bits, the buscoupler automatically starts with a new byte.
All entries of the object dictionary can be mapped - as the user likes - in the 5 Rx PDOs and 5 Tx PDOs.
The complete input and output process image can be transmitted using SDOs.
“Spacer modules“ can be set via software.
