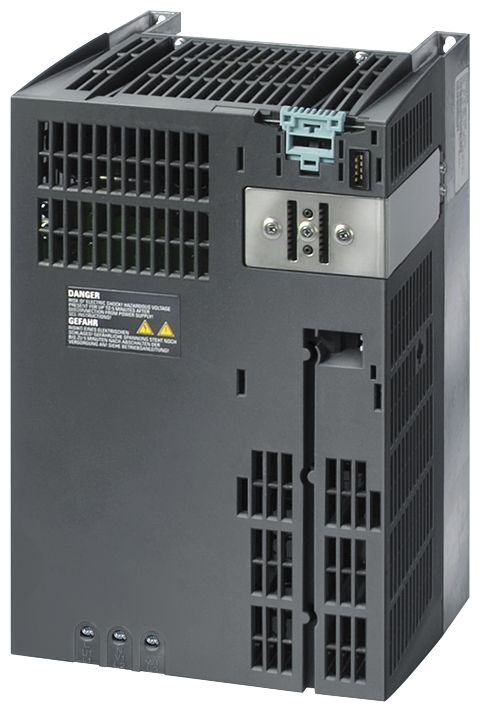

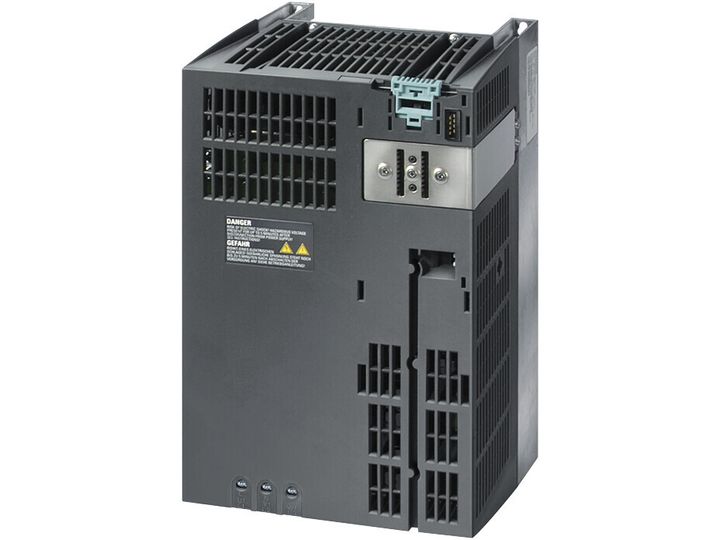

Siemens frequency converter 6SL3225-0BE27-5AA1 7.5 kW 380 V, 480 V
Converter type
U converter
AC input voltage
380 - 480 V
Number of input phases
3
Number of output phases
3
Maximum output frequency
550 Hz
Compliance certificates
CE, RoHS, REACH
Application area
Industrial
Maximum output power at linear load (rated output voltage)
7.5 kW
Maximum output power at quadratic load (rated output voltage)
11 kW
Relative symmetrical net voltage tolerance
10%
4-quadrant operation
Yes
Integrated breaking resistance
No
Nominal output current (I2n)
25 A
Relative symmetrical net frequency tolerance
5%
Minimum order quantity
1 pc(s)
Battery included
No
Height
334 mm
Package weight
7.65 kg
Package depth
390 mm
Package width
255 mm
Package height
220 mm
Maximum order quantity
1 pc(s)
