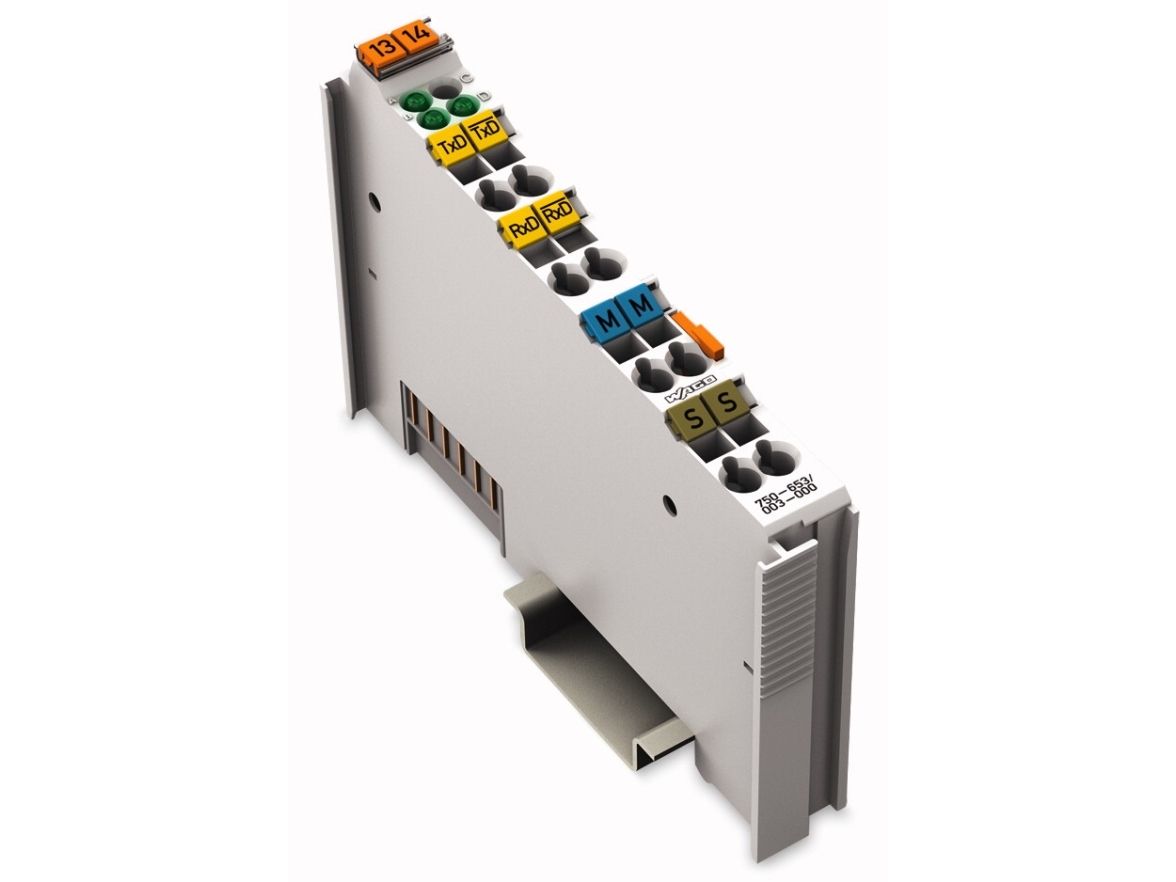

WAGO RS-485 module any configuration on TS35 (750-653/003-000)
Item no.: [1948527] | Manufacturer: WAGO | Model no.: 750-653/003-000 | EAN: 4045454519414
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
249,12
Incl. VAT 311,40
Total incl. delivery
326,40
Notify me when the item is in stock again
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
The interface integrated in the I/O module allows the connection of any device which is equipped with an RS-485 interface.
The interface operates in accordance with the TIA/EIA-485-A, DIN 66259 standard.
The connected device can communicate directly with the control unit via the fieldbus coupler. The active communication channel works independently of the higher-level fieldbus system and allows full duplex operation up to 19200 baud.
The RS-485 interface guarantees high interference immunity because of the electrically isolated signals.
The shield (screen) is directly connected to the DIN rail.
Internal bit width: 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status
The interface operates in accordance with the TIA/EIA-485-A, DIN 66259 standard.
The connected device can communicate directly with the control unit via the fieldbus coupler. The active communication channel works independently of the higher-level fieldbus system and allows full duplex operation up to 19200 baud.
The RS-485 interface guarantees high interference immunity because of the electrically isolated signals.
The shield (screen) is directly connected to the DIN rail.
Internal bit width: 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status
