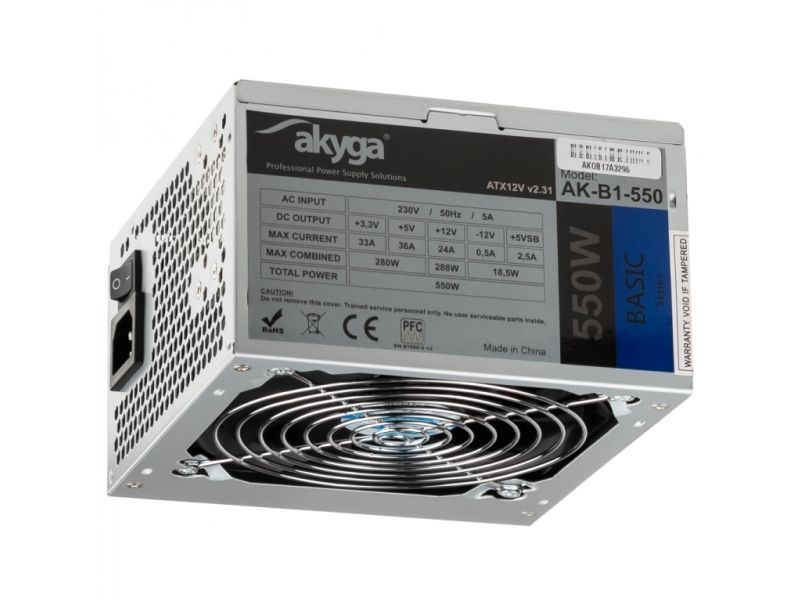

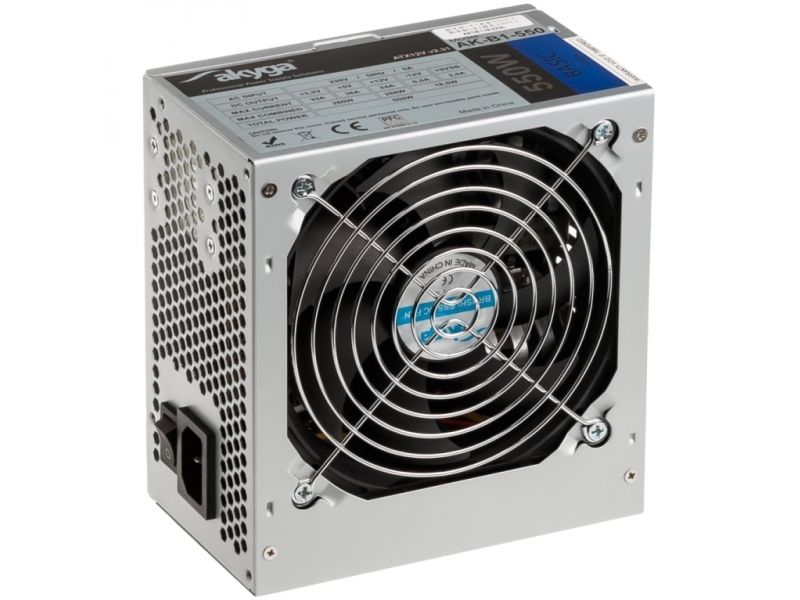

Akyga AK-B1-550, 550 W, 230 V, 550 W, 5 A, 280 W, 288 W

Item no.: [1954045] | Manufacturer: Akyga | Model no.: AK-B1-550 | EAN: 5901720130341

Remote stock (3-5 days)

The item is in a remote warehouse, delivery time is 3-5 business days. More info

Shipping @price - GLS

12,00

EUR 28,92

Incl. VAT 36,15

Total incl. delivery 51,15

Read further specifications and description

This product is made of high-quality components. The power supply has 3x SATA connectors, 2x MOLEX connectors, mini-MOLEX connector, P4 4-pin connector, PCI-E 6-pin connector and a universal 20+4-pin motherboard connector. It can be used with current and next generation of platforms with multi-core processors. Efficient, quiet fan with automatic speed control and a diameter of 120 mm ensures effective cooling. The power supply has a manual switch that allows the user to safely cut off power without having to disconnect the cord from the network. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer.

Produktbeskrivelse	Akyga Basic Series AK-B1-550 - strømforsyning - 550 watt
Enhedstype	Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.31
Vægt	1.04 kg
Indgangspænding	AC 230 V
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	550 watt
Output Current	+3.3V - 33 A +5V - 36 A +12V - 24 A -12V - 0.5 A +5VSB - 2.5 A
Input-stik	1 x strøm IEC 60320 C14

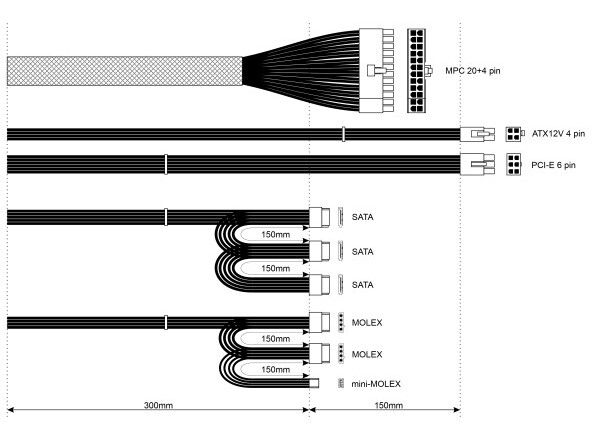

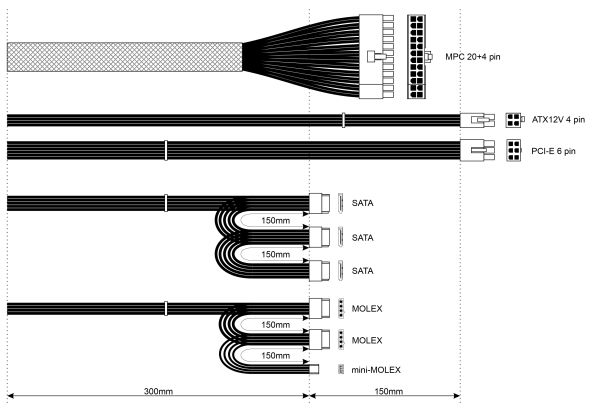

Output-stikforbindelser	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 3 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x 6 pin PCI Express-strøm
Kølesystem	120 mm ventilator
Farve	Grå
Dimensioner (B x D x H)	15 cm x 14 cm x 8.5 cm

Generelt
Enhedstype	Strømforsyning - Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.31
PSU formfaktor	ATX
Farve	Grå
Strømenhed
Indgangspænding	AC 230 V
Nødvendig frekvens	50 Hz
Input-stik	1 x strøm IEC 60320 C14
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x effekt ATX12V 4-pin stik 3 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x 6 pin PCI Express-strøm
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	550 watt
Output Current	+3.3V - 33 A +5V - 36 A +12V - 24 A -12V - 0.5 A +5VSB - 2.5 A
Effektivitet	70%
Diverse
MTBF (forventet tid mellem fejl)	100,000 timer
Kølesystem	120 mm ventilator
Egenskaber	EcoBox-pakke, beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, blæserhastighedsstyring
Overensstemmelsesstandarder	RoHS, REACH, EN 61000-3
Miljømæssige parametre
Min. driftstemperatur	5 °C
Maks. driftstemperatur	50 °C
Mål og vægt
Bredde	15 cm
Dybde	14 cm
Højde	8.5 cm
Vægt	1.04 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse	16 cm
Dybde ved forsendelse	22 cm
Højde ved forsendelse	9.5 cm
Vægt ved forsendelse	1.12 kg

The item is known under the following item numbers in our system

EAN:	5901720130341
SKU:	AK-B1-550

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
