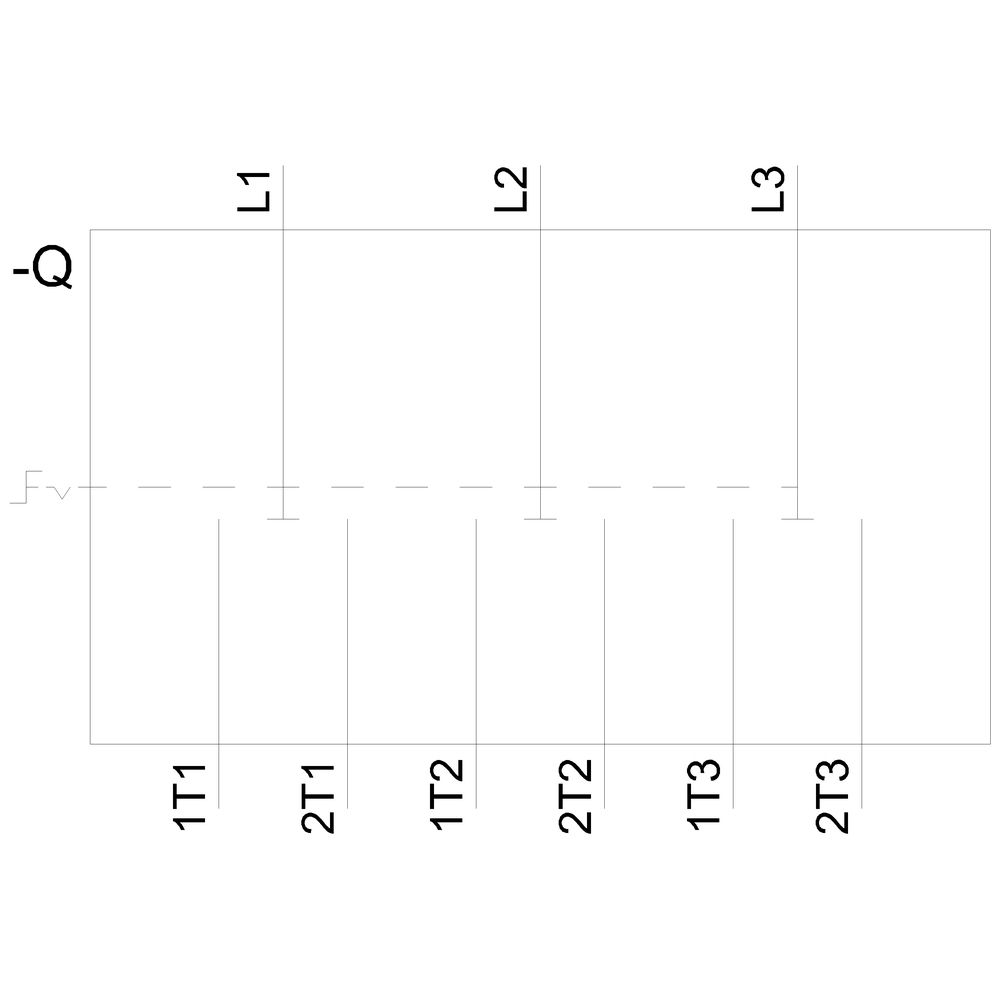

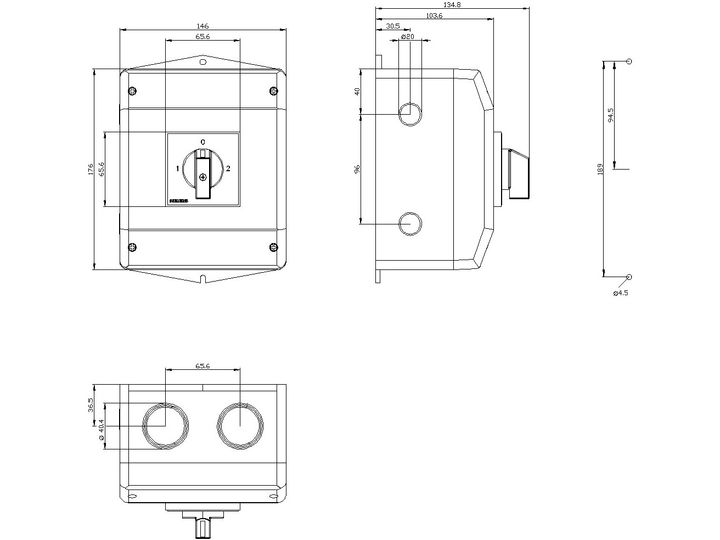

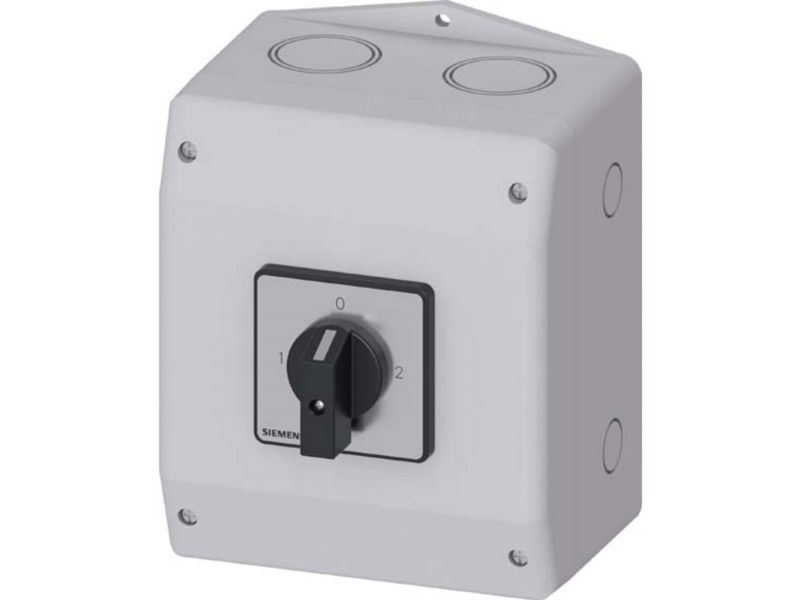

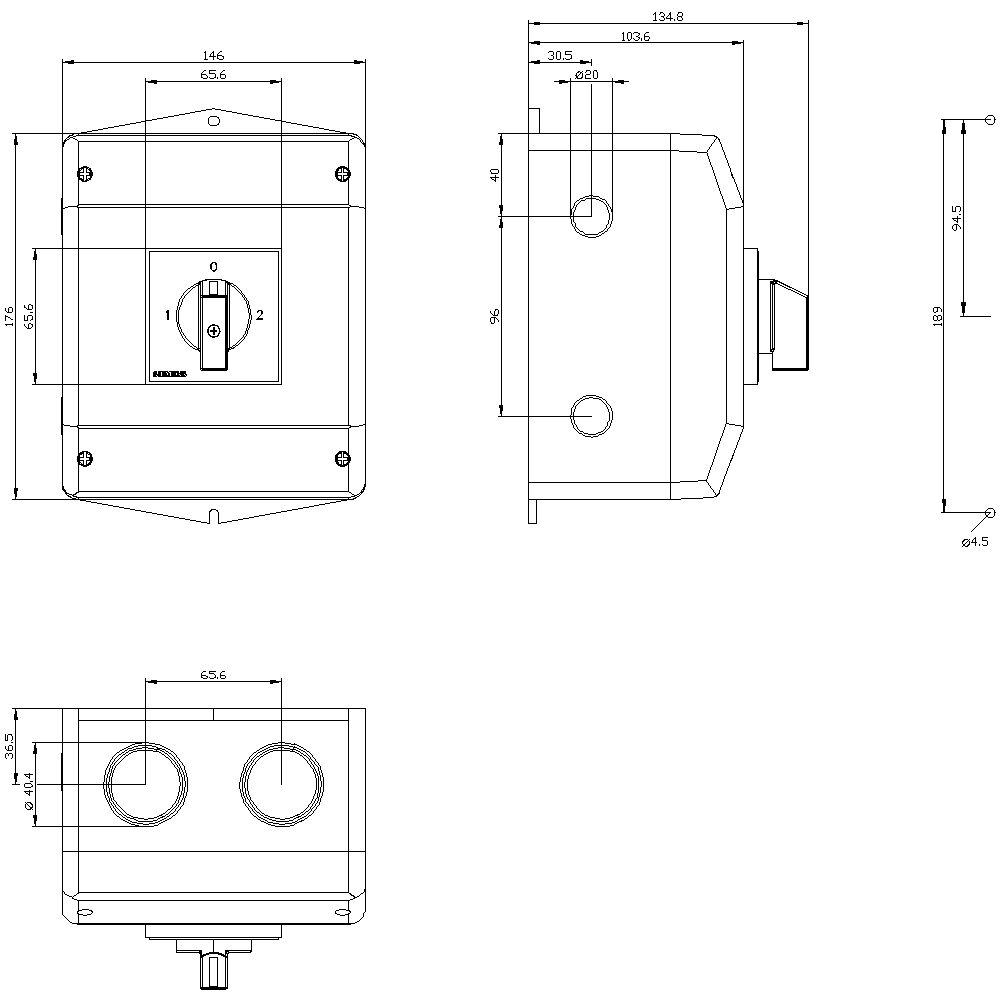

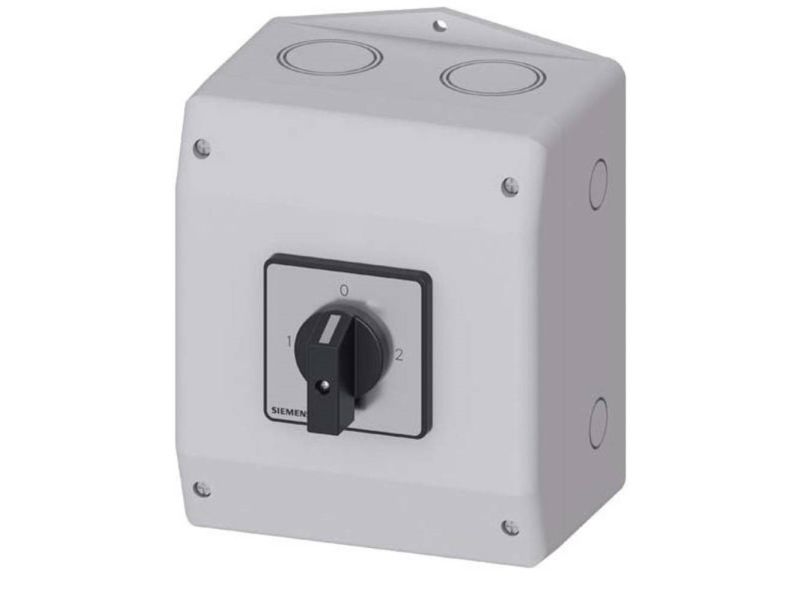

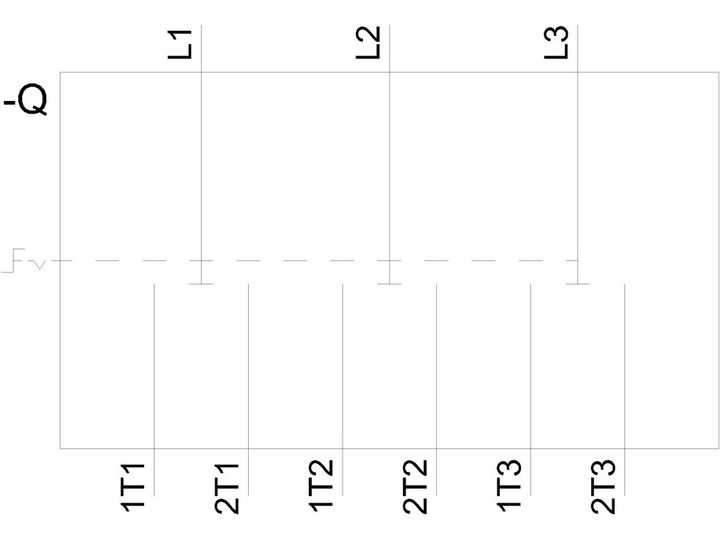

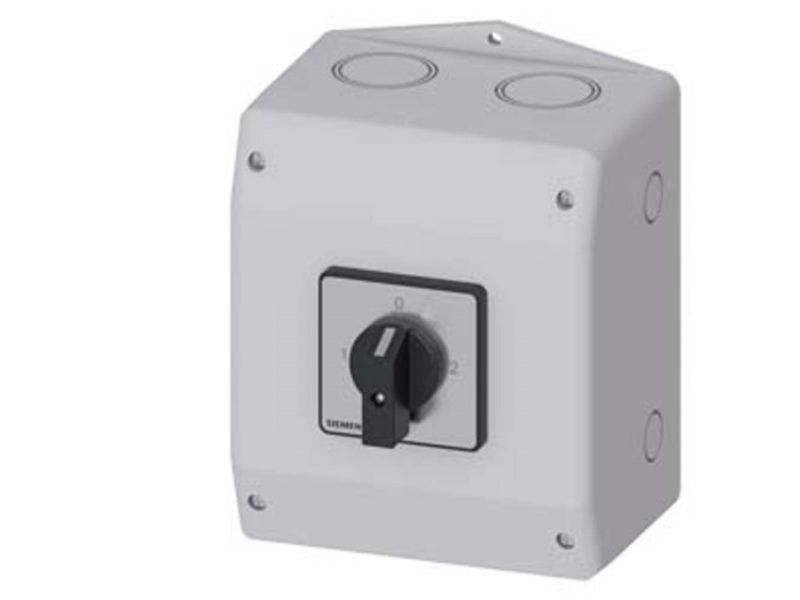

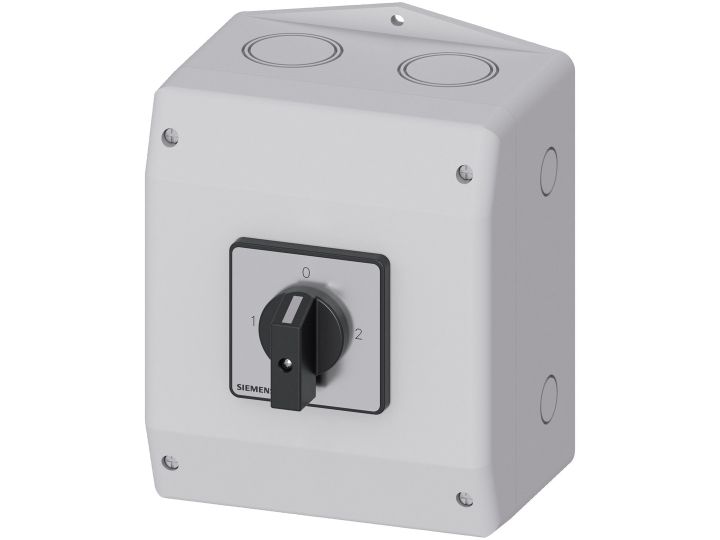

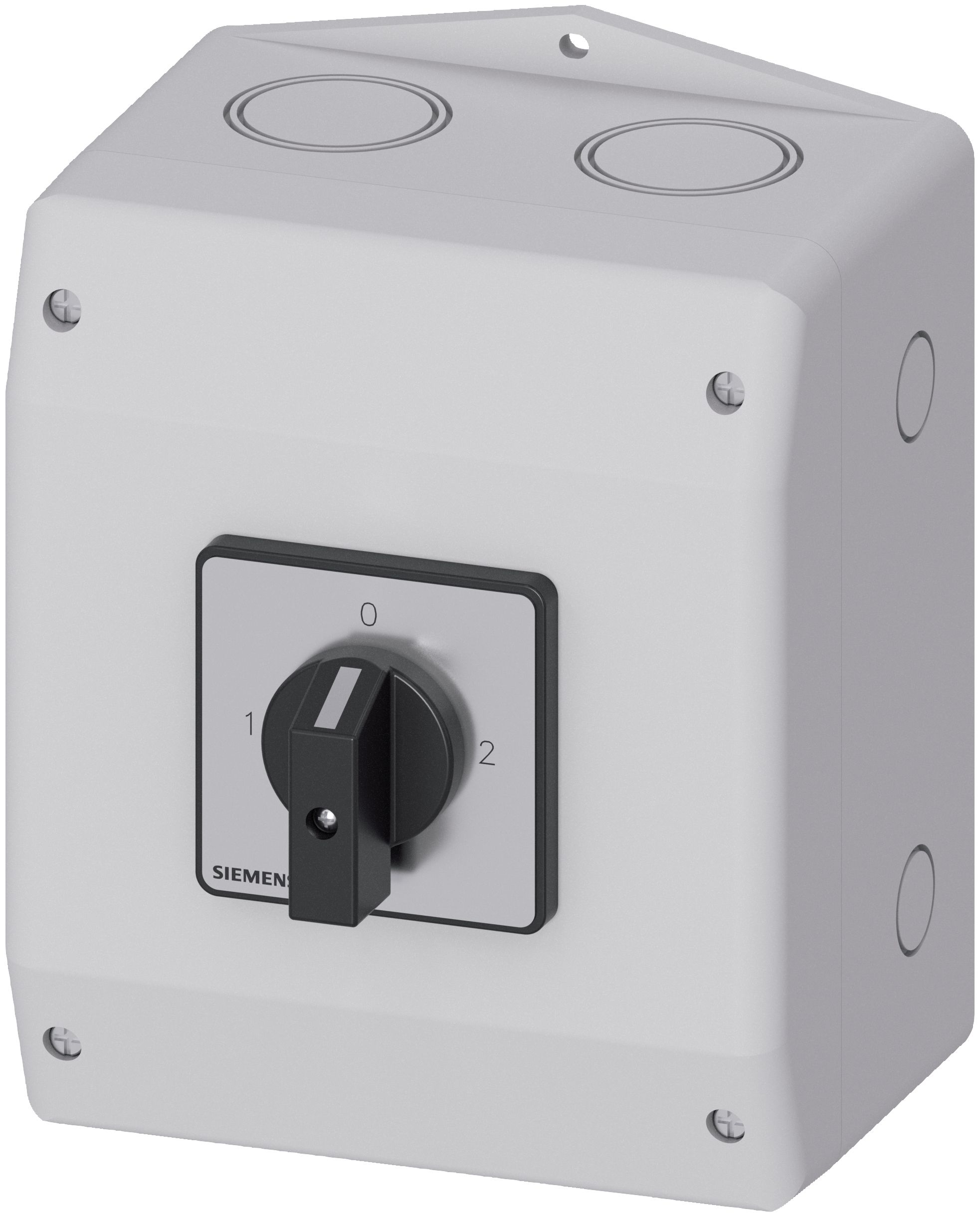

Load break switch Black 3-pole 16 mm² 32 A 690 V/AC Siemens 3LD22657UB01
Number of poles
3P
International Protection (IP) code
IP65
Reverse function
No
Height
188 mm
Package width
152 mm
Package depth
202 mm
Package height
149 mm
Package weight
869 g
Compliance certificates
CE
Construction type
Fixed built-in technique
Main circuit connection type
Frame clamp
Number of auxiliary NC contacts
0
Number of auxiliary NO contacts
0
Control element type
Wing knob
Rated continuous current (Iu)
32 A
Number of auxiliary change-over contacts
0
Integrated motor drive
No
Optional motor drive
No
Rated operational power (AC-3, 400V)
10 kW
Degree of protection (NEMA)
Other
Maximum rated operational voltage (Ue AC)
690 V
Emergency stop version
No
Main switch version
Yes
Safety switch version
Yes
Control element colour
Black
Optional voltage release
No
Interlockable
No
Maintenance/service switch version
Yes
Rated operational power (AC-23, 400V)
12 kW
Rated permanent current (AC-21, 400V)
32 A
Rated permanent current (AC-23, 400V)
22 A
Suitable for floor mounting
No
Suitable for front mounting (4-hole)
No
Battery included
No
Suitable for front mounting (centre)
Yes
Minimum order quantity
1 pc(s)
Maximum order quantity
1 pc(s)
The item is known under the following item numbers in our system
EAN:
4011209492967
