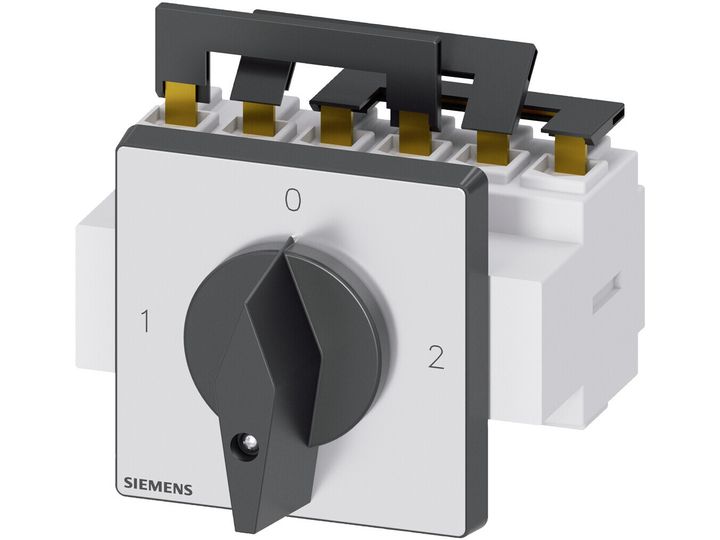

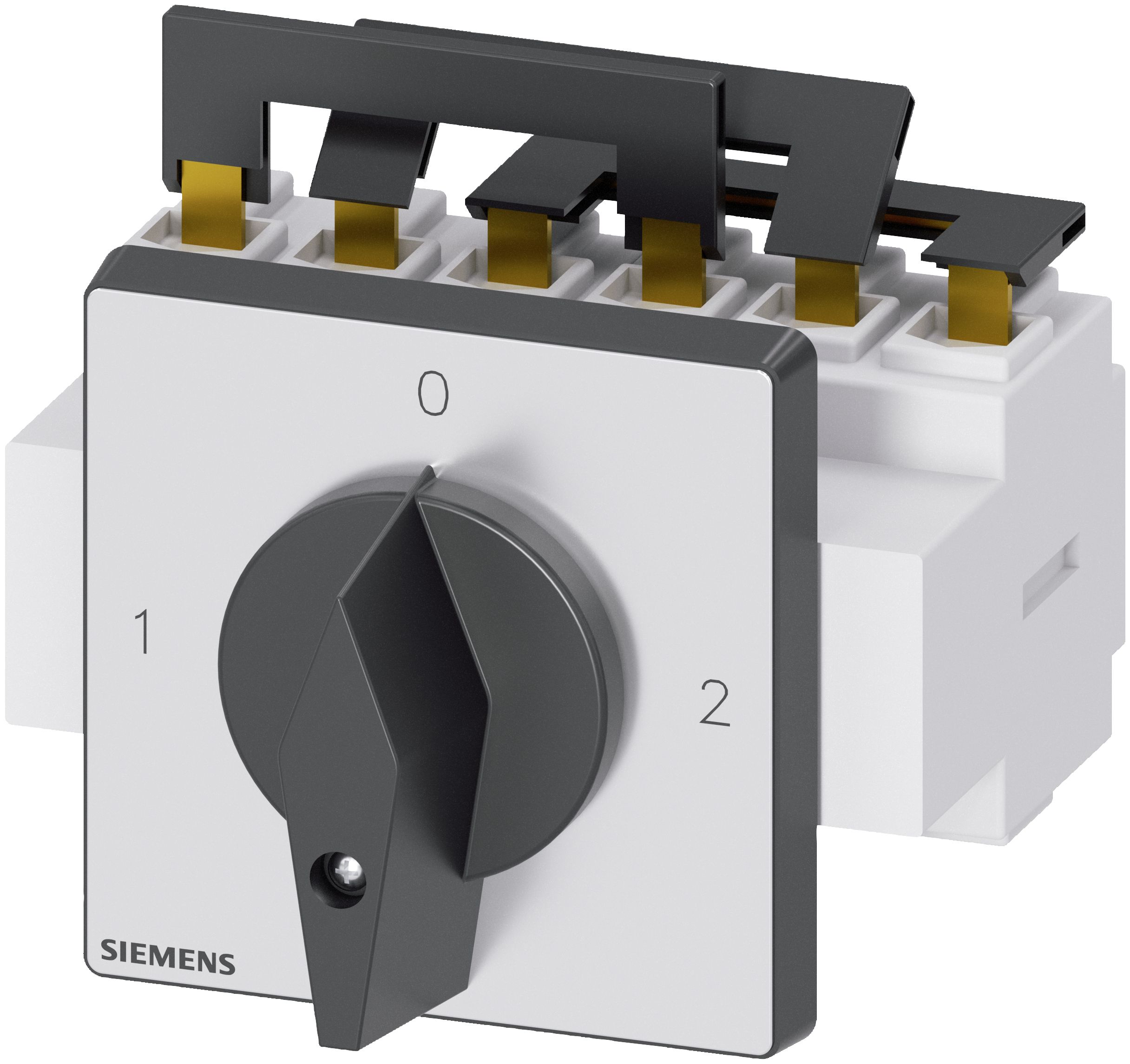

Siemens 3LD25247UK01 load disconnect contact black 3-pole 35 mm² 63 A 690 V/AC
Number of poles
3P
International Protection (IP) code
IP65
Reverse function
No
Height
85 mm
Package width
122 mm
Package depth
130 mm
Package height
98 mm
Package weight
729 g
Compliance certificates
CE
Construction type
Fixed built-in technique
Main circuit connection type
Frame clamp
Number of auxiliary NC contacts
0
Number of auxiliary NO contacts
0
Control element type
Wing knob
Rated continuous current (Iu)
63 A
Number of auxiliary change-over contacts
0
Integrated motor drive
No
Optional motor drive
No
Rated operational power (AC-3, 400V)
19 kW
Degree of protection (NEMA)
Other
Maximum rated operational voltage (Ue AC)
690 V
Emergency stop version
No
Main switch version
Yes
Safety switch version
Yes
Control element colour
Black
Optional voltage release
No
Interlockable
No
Maintenance/service switch version
Yes
Rated operational power (AC-23, 400V)
22 kW
Rated permanent current (AC-21, 400V)
63 A
Rated permanent current (AC-23, 400V)
43 A
Suitable for floor mounting
No
Suitable for front mounting (4-hole)
Yes
Battery included
No
Suitable for front mounting (centre)
No
Minimum order quantity
1 pc(s)
Maximum order quantity
1 pc(s)
The item is known under the following item numbers in our system
EAN:
4011209492219
