The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
54,52
Incl. VAT 68,15
Total incl. delivery
83,15
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
Send på mail
Housing material
Metal
International Protection (IP) code
IP66, IP67
Package width
43 mm
Package depth
49 mm
Package height
127 mm
Package weight
366 g
Compliance certificates
CE, RoHS, REACH
Control element type
Roller cam
Ambient temperature range
25 - 85 °C
Degree of protection (NEMA)
12
Electrical connection type
Other
Suitable for safety functions
Yes

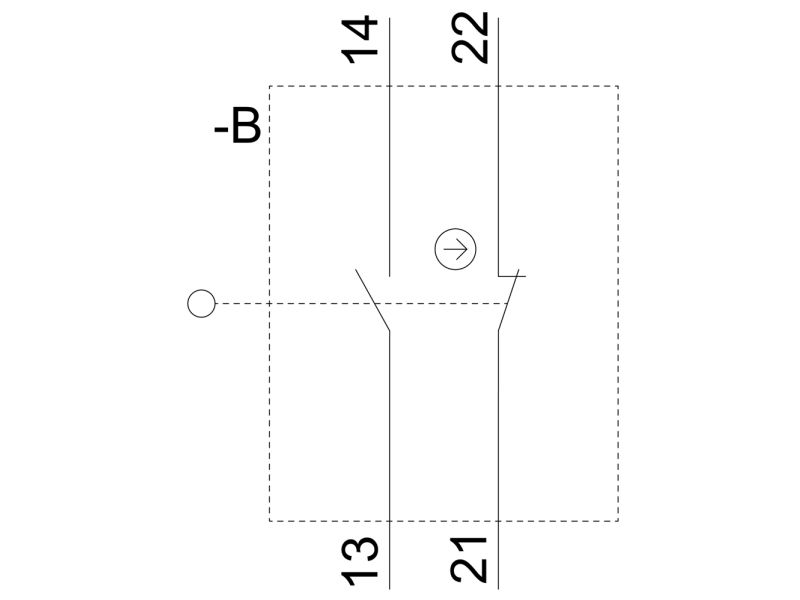

Number of NO contacts
1
Number of change-over contacts
0
Number of NC contacts
1

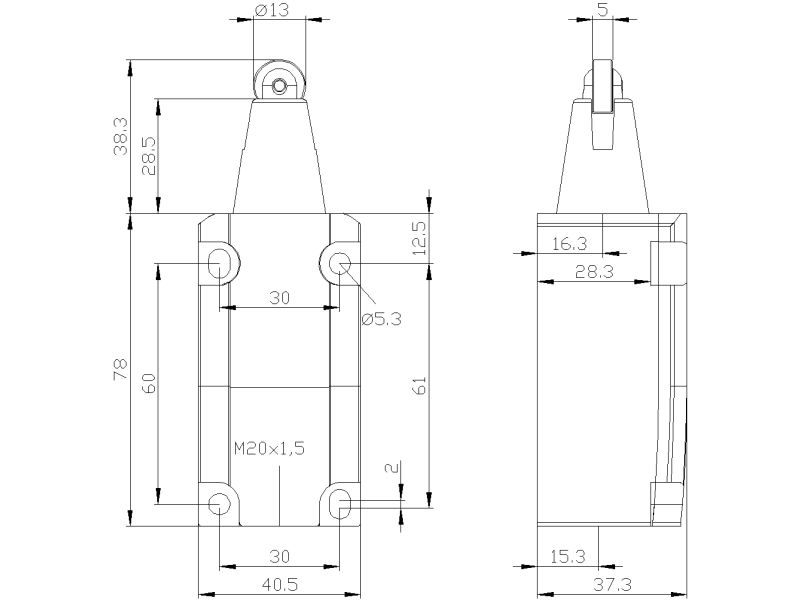

Sensor length
11.6 cm
Sensor width
4 cm
Sensor height
3.73 cm
Switching function
Quick-break switch
Number of safety auxiliary contacts
1
Rated operational current (Ie at DC-13, 24V)
3 A
Rated operational current (Ie at DC-13, 125V)
0.55 A
Rated operational current (Ie at AC-15, 24V)
6 A
Forced opening
Yes
Battery included
No
Latching switching function
No
Housing coating
Lacquered
Status indication
No
Rated operation current (Ie at AC-15, 125V)
6 A
