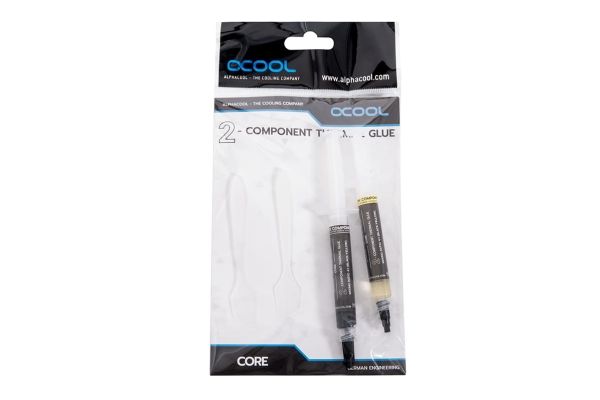

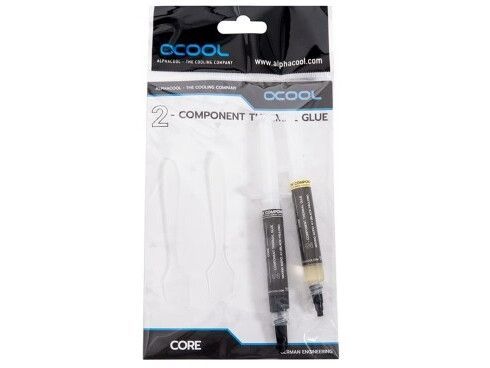

Alphacool 13004, Thermal adhesive, 0.9 W/m·K, 5 g, 200 mm, 110 mm, 15 mm
Item no.: [20059794] | Manufacturer: Alphacool | Model no.: 13004 | EAN: 4250197130042
In stock
In stock, order before 3 PM and we ship today (weekdays) More info
SPECIAL OFFER
There are 1 in stock
The current price is valid as long as the local stock lasts
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
13,31
Incl. VAT 16,64
Total incl. delivery
31,64
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Alphacool 2-part thermal adhesive is perfect for mounting coolers onto items such as motherboard VRMs. The 2-part epoxy-based adhesive is the optimal choice when coolers need to be mounted more securely onto the CPU or GPU of single-board computers (Raspberry PI, ODROID, Arduino, Cubieboard etc.). The field of application is so wide that even coolers on electronic components in power amplifiers or RC vehicles can be reliably and stably bonded.
Properties
The Alphacool 2-part thermal adhesive is electrically non-conductive. The high metallic content of aluminium nitride (70 - 73 %) guarantees optimal thermal conductivity (0.9 W/mK). The thermal adhesive creates a stable adhesive bond. Due to the material composition, mechanical variances between the components to be bonded can also be compensated well. Surface curing is achieved after 2h (at 25°C ambient temperature). Complete curing takes place within 5 to 7 days (at 25°C ambient temperature).
Application

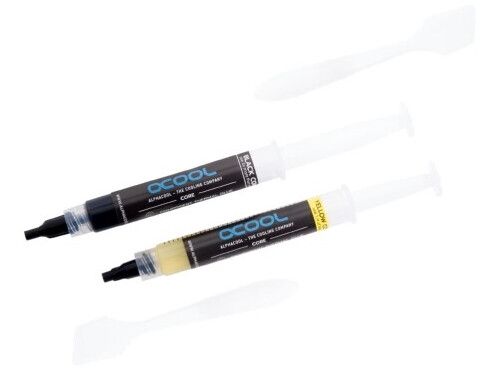

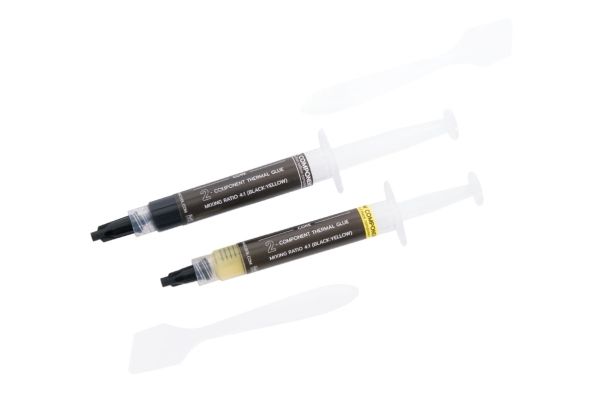

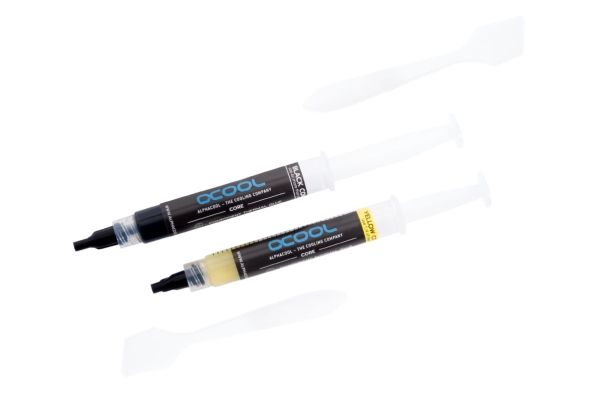

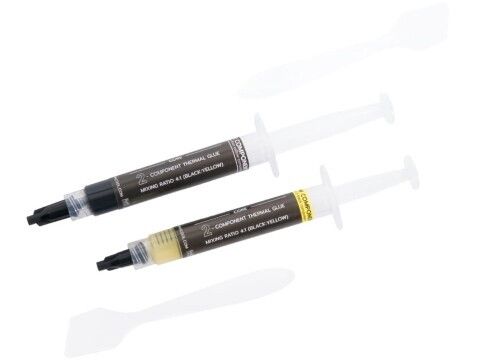

All surfaces must be clean and free of grease, dust or contaminants. Important: The processing time is limited! As a rule, the processing time is about 10 minutes until the adhesive starts to cure. Adhesive (black) and applicator (yellow) must be thoroughly mixed in a ratio of 4:1 on a clean surface for approx. 2 to 3 minutes with a spatula. Perfect mixing is important to ensure an optimum bond. The two-part adhesive can then be applied thinly to the surfaces to be bonded using a spatula. Finally, the components to be bonded are pressed together. Higher ambient temperatures during processing ensure effective curing of the adhesive and increase strength at higher temperatures.
Properties
The Alphacool 2-part thermal adhesive is electrically non-conductive. The high metallic content of aluminium nitride (70 - 73 %) guarantees optimal thermal conductivity (0.9 W/mK). The thermal adhesive creates a stable adhesive bond. Due to the material composition, mechanical variances between the components to be bonded can also be compensated well. Surface curing is achieved after 2h (at 25°C ambient temperature). Complete curing takes place within 5 to 7 days (at 25°C ambient temperature).
Application
All surfaces must be clean and free of grease, dust or contaminants. Important: The processing time is limited! As a rule, the processing time is about 10 minutes until the adhesive starts to cure. Adhesive (black) and applicator (yellow) must be thoroughly mixed in a ratio of 4:1 on a clean surface for approx. 2 to 3 minutes with a spatula. Perfect mixing is important to ensure an optimum bond. The two-part adhesive can then be applied thinly to the surfaces to be bonded using a spatula. Finally, the components to be bonded are pressed together. Higher ambient temperatures during processing ensure effective curing of the adhesive and increase strength at higher temperatures.
