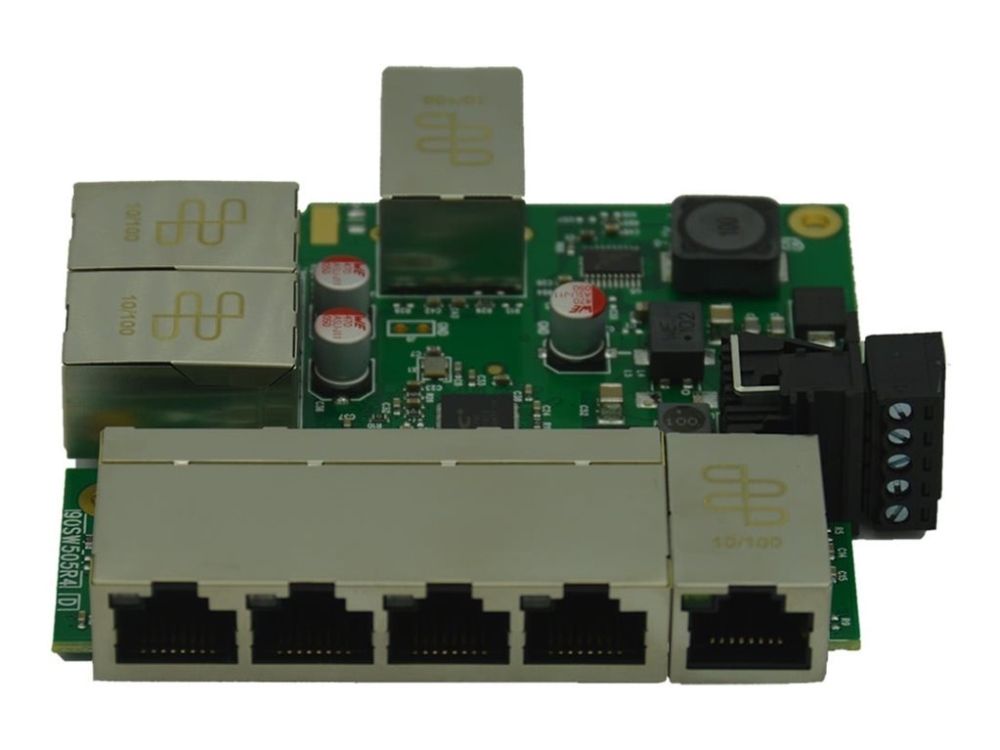

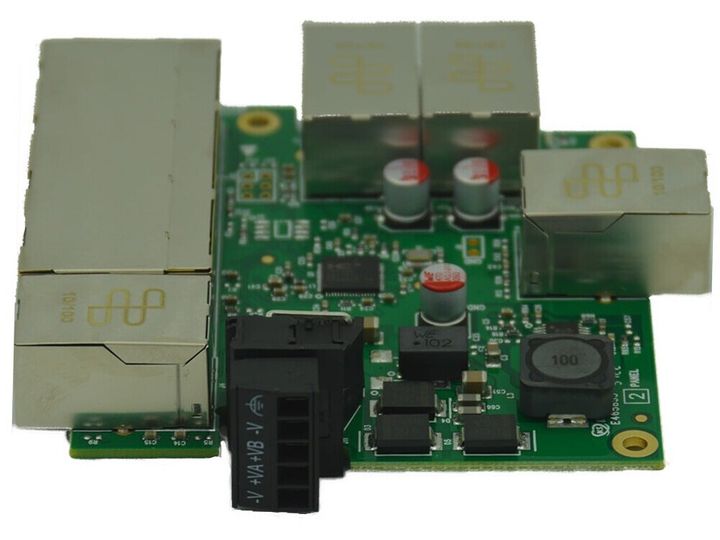

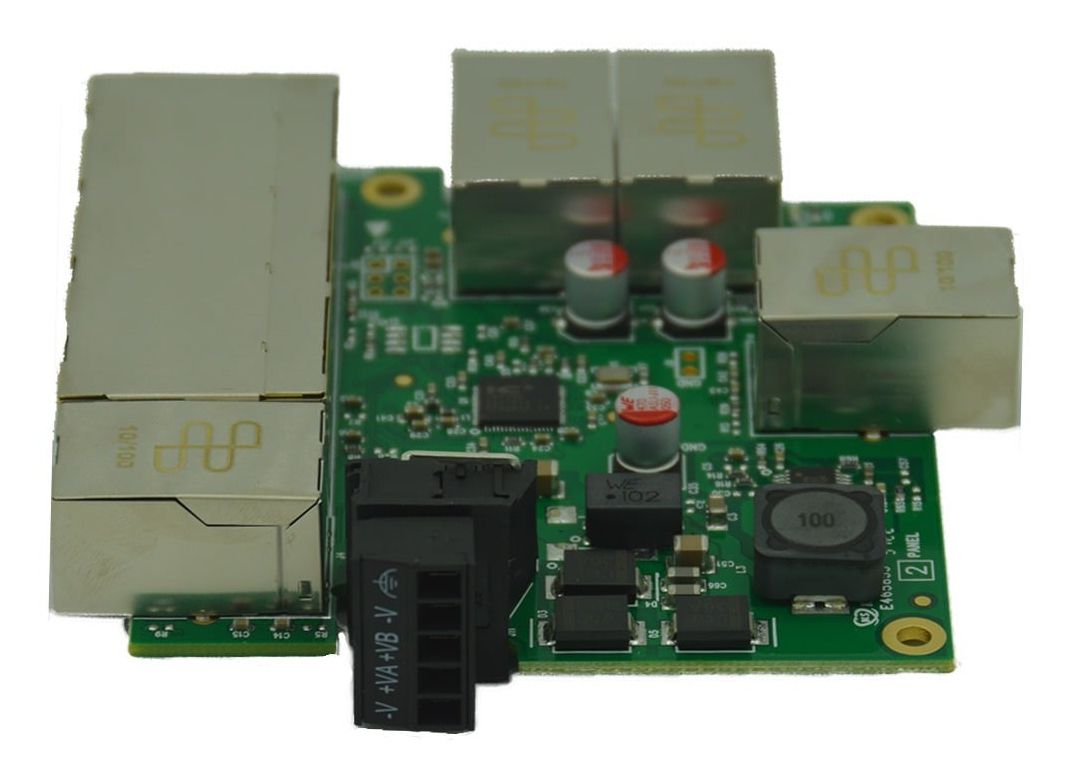

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated brainboxes-SW-108-front-panel-ethernet-port-status-leds. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Produktbeskrivelse
Brainboxes SW-108 - Industrial - switch - embedded - 8 porte - ikke administreret - intern - TAA-kompatibel
Enhedstype
Switch - 8 porte - ikke administreret
Pakningstype
Intern
Undertype
Fast Ethernet
Porte
8 x 10/100
Egenskaber
LED-statusindikatorer, Auto MDIX, auto-sensing per device, 1.5 KV Magnetic Isolation
Effekt
DC 5 - 30 V
Overskudsspænding
Ja
Dimensioner (B x D x H)
9.9 cm x 9.4 cm x 2.3 cm
Vægt
115 g
TAA kompatibel
Ja
Producentgaranti
Begrænset livtidsgaranti
Generelt
Enhedstype
Switch - 8 porte - ikke administreret
Pakningstype
Intern
Undertype
Fast Ethernet
Porte
8 x 10/100
Egenskaber
LED-statusindikatorer, Auto MDIX, auto-sensing per device, 1.5 KV Magnetic Isolation
Statusindikatorer
Link/aktivitet
Ekspansion / Konnektivitet
Interface
8 x 10/100 Base-T RJ-45
Effekt
Overskudsspænding
Ja
Nødvendig spænding
DC 5 - 30 V
Strømforbrug ved drift
1.5 watt
Diverse
Overensstemmelsesstandarder
WEEE, UKCA, RoHS, AEO, ISO 9001, ISO 14001, NDAA, FCC
TAA kompatibel
Ja
Mål og vægt
Bredde
9.9 cm
Dybde
9.4 cm
Højde
2.3 cm
Vægt
115 g
Producentgaranti
Service & Support
Begrænset garanti - livstid
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
80 °C
Fugtighedsgrad ved brug
5 - 95% RH (non-condensing)
Min. lagertemperatur
-40 °C
Maks. Opbevaringstemperatur
85 °C
