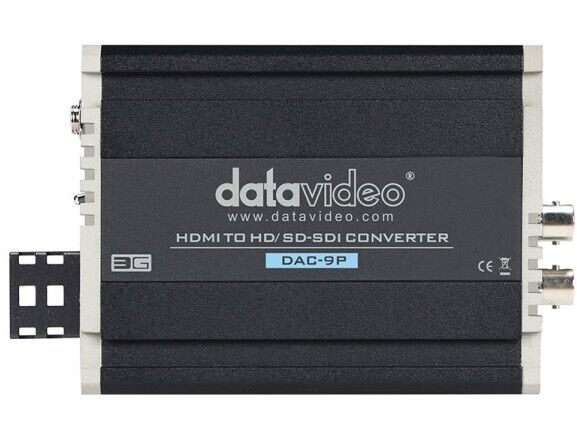

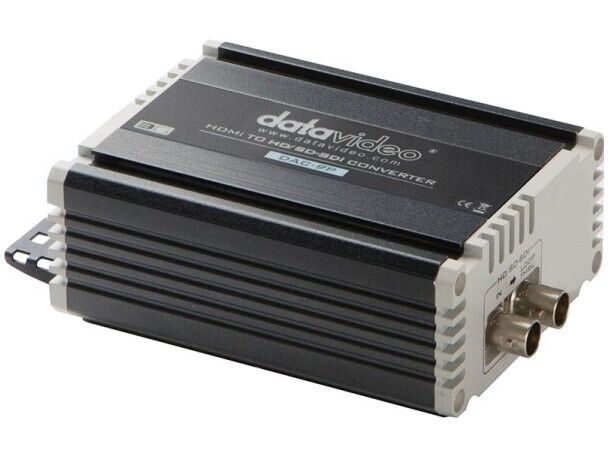

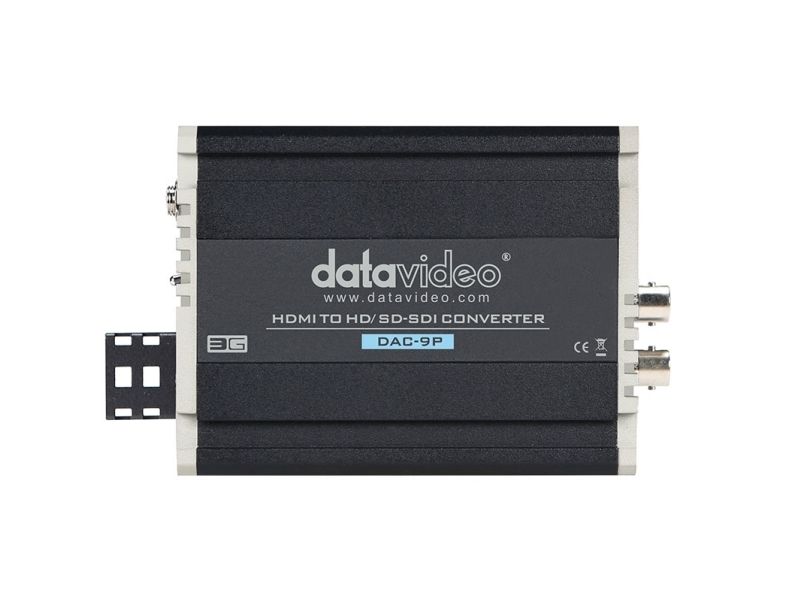

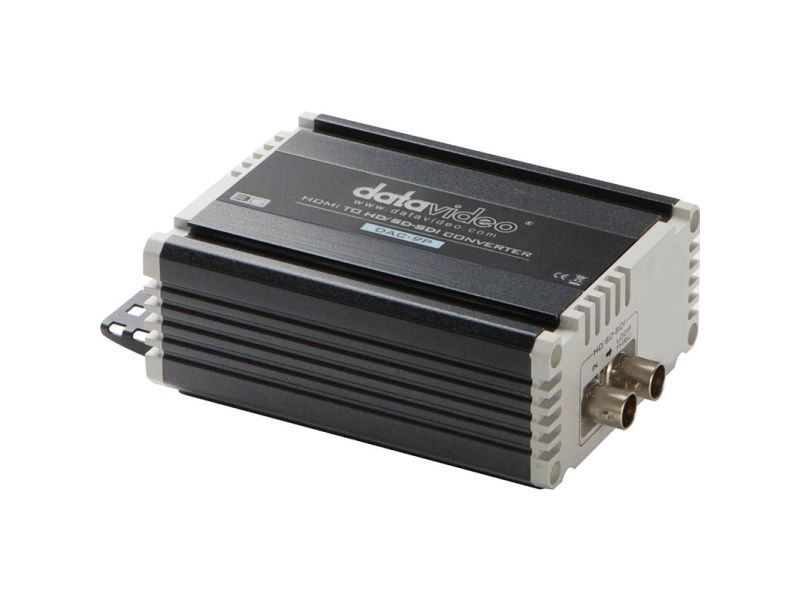

Many new High Definition camcorders and devices provide HDMI as the only High Definition output option. Datavideo's DAC-9P allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders up to 200 meters away.
HDMI is not suitable for long cable runs, but using a Datavideo DAC-9P, users can convert HDMI to High Definition & Standard Definition SDI and take advantage of the high quality and affordable connectivity that SDI cables offer. The DAC-9P even embeds the audio from HDMI into the SDI signal so only one single low cost cable is needed.
Product colour
Black, Grey
Certification
CE, FCC
Maximum video resolution
1920 x 1080 pixels
Supported video modes
480i, 576i, 720p, 1080i, 1080p
Analog signal format system
NTSC, PAL
Host interface
HDMI
Output interface
HD-SDI
Video in
1x HDMI
Video out
2x 3G/HD/SD-SD
Operating voltage
12 V
Operating current
0.5 A
Power consumption (typical)
5 W
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Width
145 mm
Depth
85 mm
Height
30 mm
Weight
330 g
AC adapter included
Yes
Quantity
1
The item is known under the following item numbers in our system
EAN:
0672255004166
SKU:
DAC-9P
