Revolt Designed For Custom Cables Extending the Revolt Series power supplies, Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process.
The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and come with either 80 Plus Platinum or Titanium certification. Wattage capacity ranges from 1000 Watt all the way up to 1600 watt.
Produktbeskrivelse

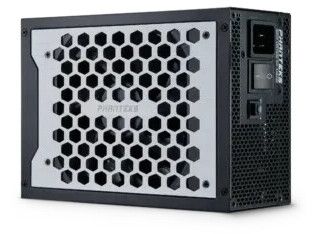

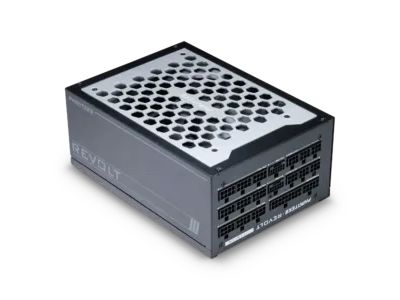

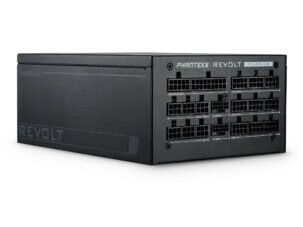

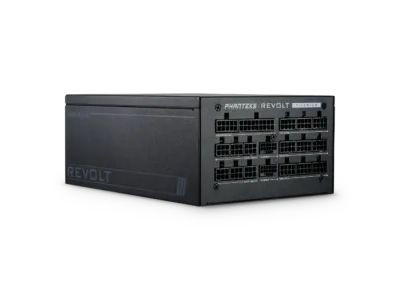

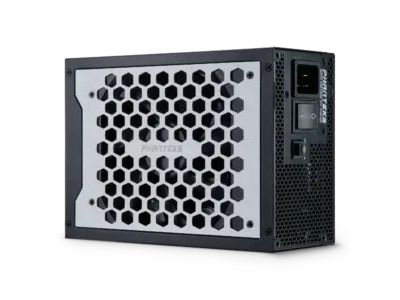

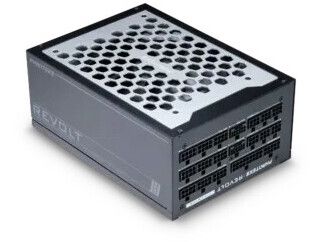

Phanteks PH-P1600TR - strømforsyning - 1600 Watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0
80 PLUS certificering
80 PLUS Titanium
Vægt
3.22 kg
Indgangspænding
AC 100-240/200-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1600 Watt
Output Current
+12V - 133.33 A +5V - 25 A +3.3V - 25 A -12V - 0.5 A +5VSB - 3 A
Output-stikforbindelser

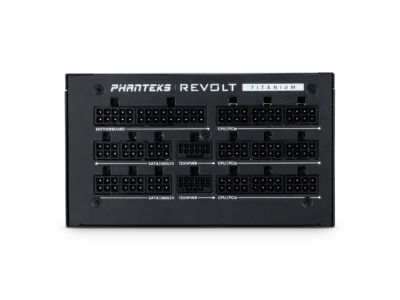

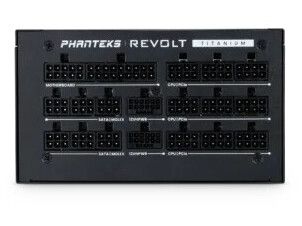

1 x power 28 pin ATX with detachable 10 pin section 9 x power 8 pin CPU/PCI Express 2 x 12V 2x6 PCIE 5.1 600 W 6 x 6 pin Serial ATA/Molex power
Fuld modulær, køleblæser til flydende dynamisk leje, overbelastningsbeskyttelse, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, beskyttelse mod overstrøm, beskyttelse mod overophedning, ingen lastdriftbeskyttelse, nulstillingsbeskyttelse
Producentgaranti
Service & Support
Begrænset garanti - 12 år
Mål og vægt
Bredde
15 cm
Dybde
12 cm
Højde
8.6 cm
Vægt
3.22 kg
Mål & vægt (forsendelse)
Vægt ved forsendelse
3.67 kg
